Measureman 2" Well Pump Pressure Gauge, 0-160psi/bar, 1/4"NPT Male with 1/2"NPT Adaptor, -3-2-3% Accuracy



  • For pressure testing on the water well pump etc
  • 2" dial size, process connection both 1/4"NPT and 1/2"NPT available
  • Pressure range: 0-160psi/bar, 100xkpa double scale
  • Black steel case, brass wetted parts, dry
  • Accuracy: +/-3-2-3%

Product description

Size:2" 0-160 psi

Description
"This pressure gauge is designed for water pressure measuring in the water well pump etc

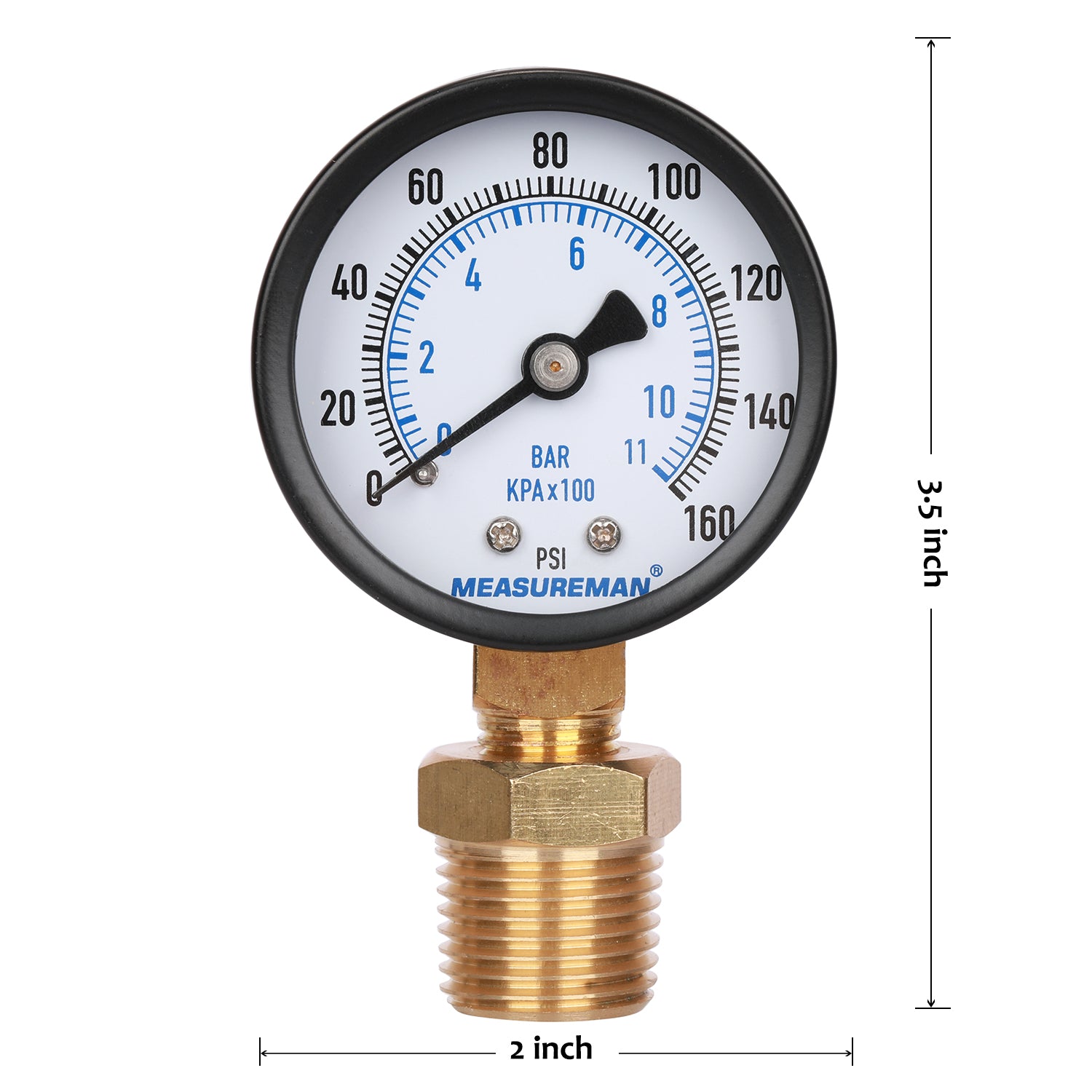

Dial size : 2""

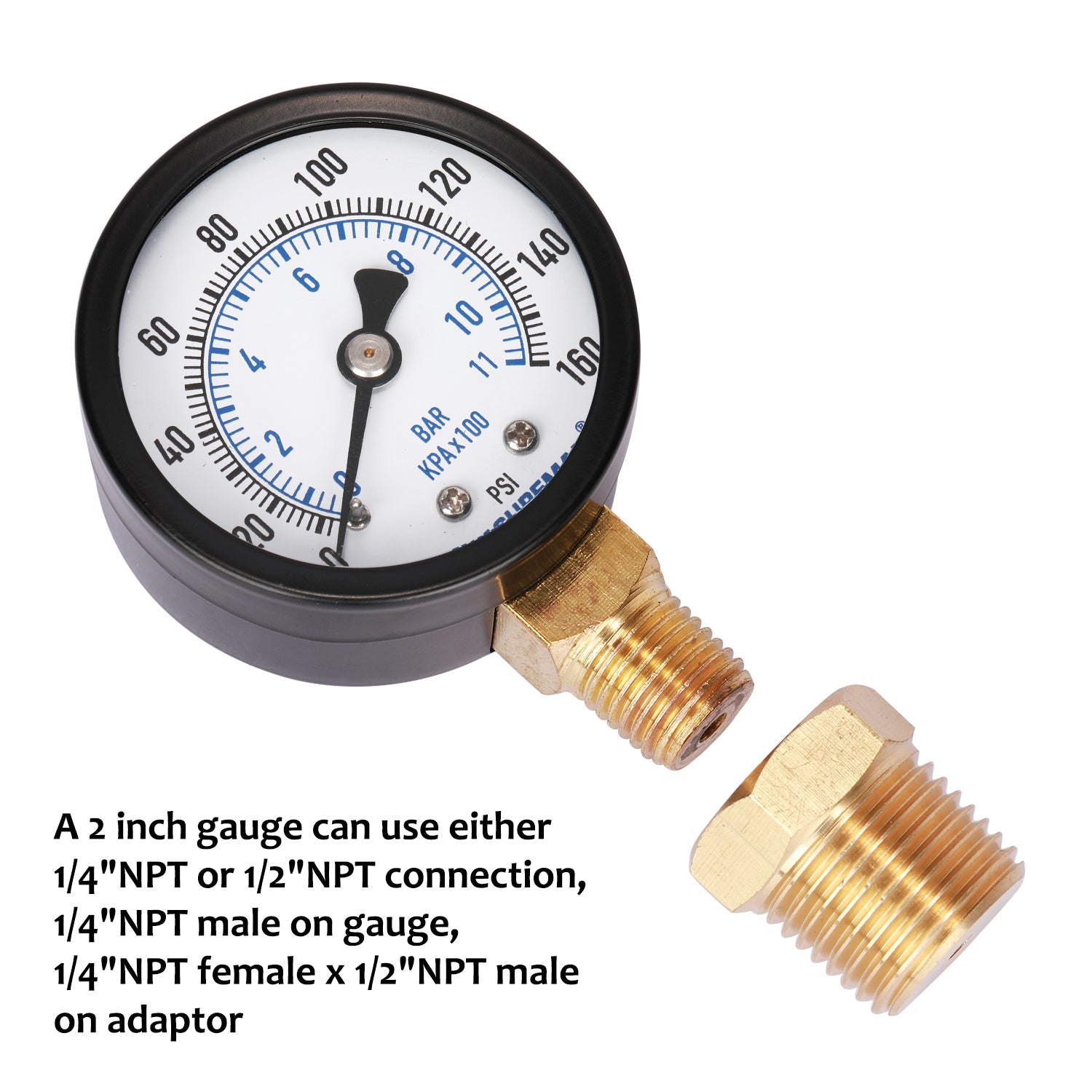

Process connection : 1/4"" NPT male lower mount, with 1/2""NPT adaptor
Case : Black steel case and bezel
Window : Clear plastic
Dial plate : aluminum, with pointer stop
Pointer : Aluminum, black, DIN style
Boudon tube : Copper alloy
Movement : Brass
Connection : Brass
IP class : IP43
Accuracy : +/-3-2-3%

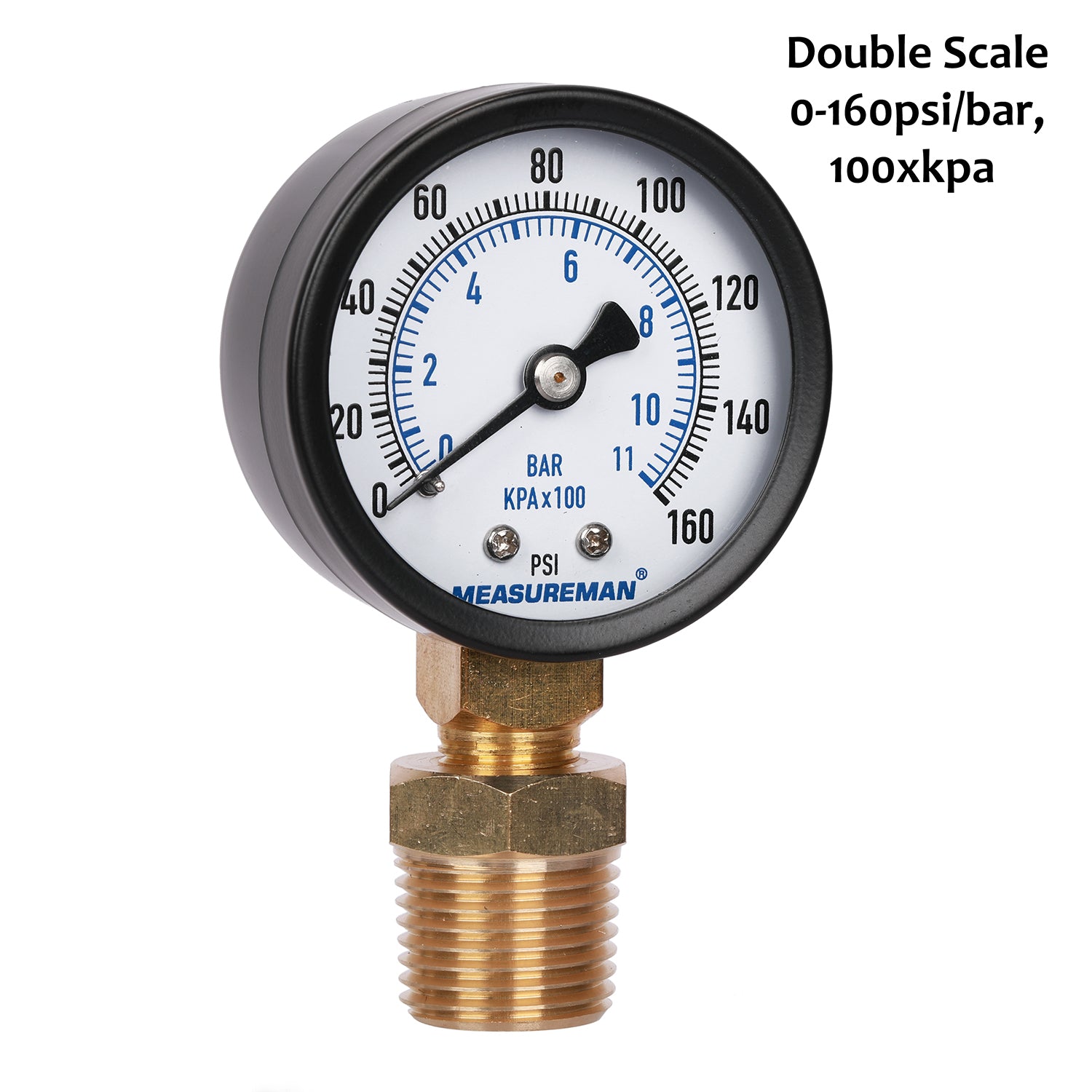

Pressure range : 0-160psi/11bar, 100xkpa, double scale
Working temperature : -4 to 140 deg F/-20 to 60 deg C
Ambient temperature : 140 deg F/60 deg C maximum
"



Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
