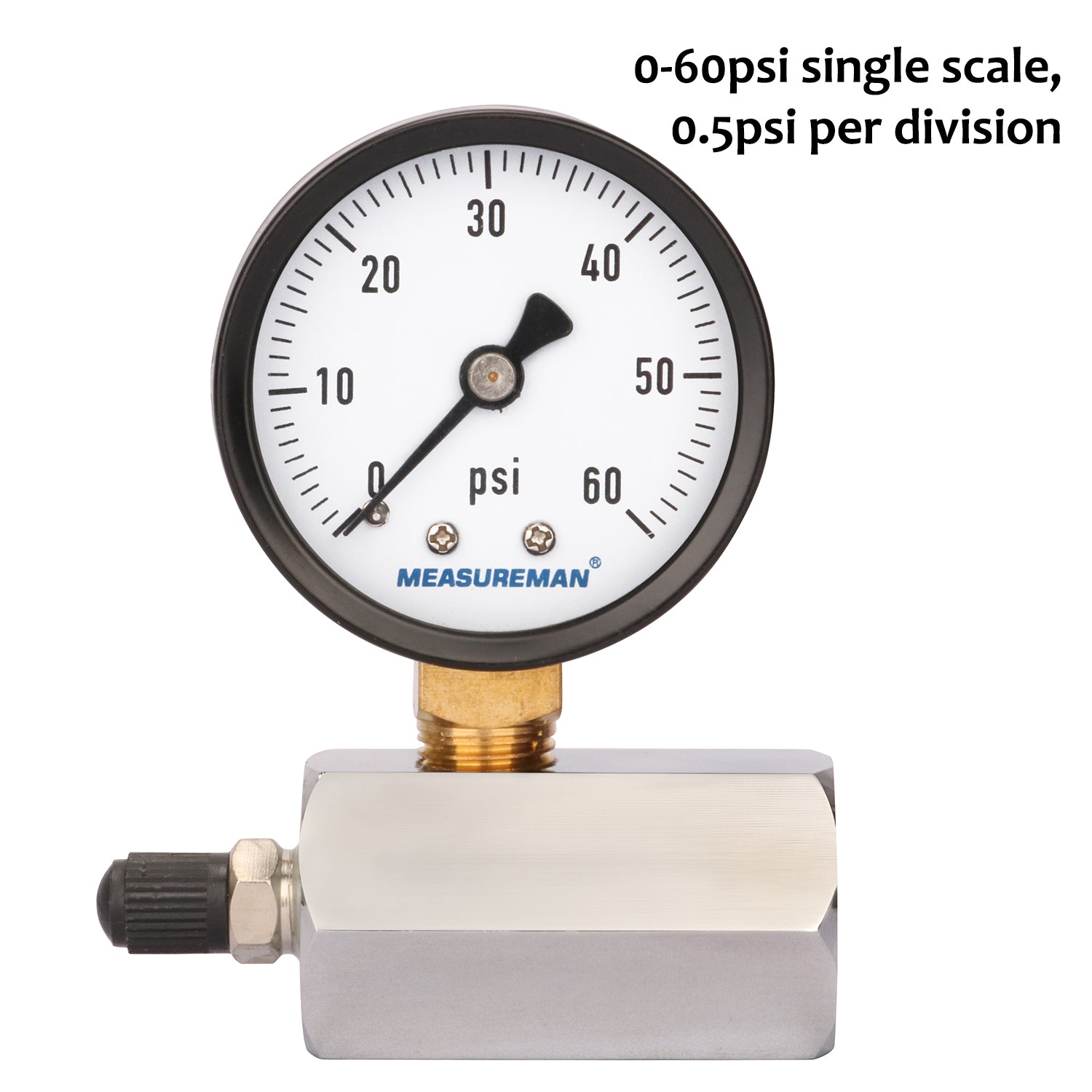

Measureman 2" Steel Gas Pressure Test Gauge Assembly, 3/4" FNPT Connection, 0-60psi, -3-2-3% Accuracy
Measureman 2" Steel Gas Pressure Test Gauge Assembly, 3/4" FNPT Connection, 0-60psi, -3-2-3% Accuracy
- For pressure testing on the gas line etc
- 2" dial size, chrome plated steel gas test body, 3/4” NPT female thread adapter attaches directly to gas line
- Pressure range: 0-60psi single scale, 1psi division
- Black steel case, brass wetted parts, dry
- Accuracy: +/-3-2-3%
Product description
Description
"This pressure gauge is designed for gas pressure measuring in the gas line etc
Dial size : 2""

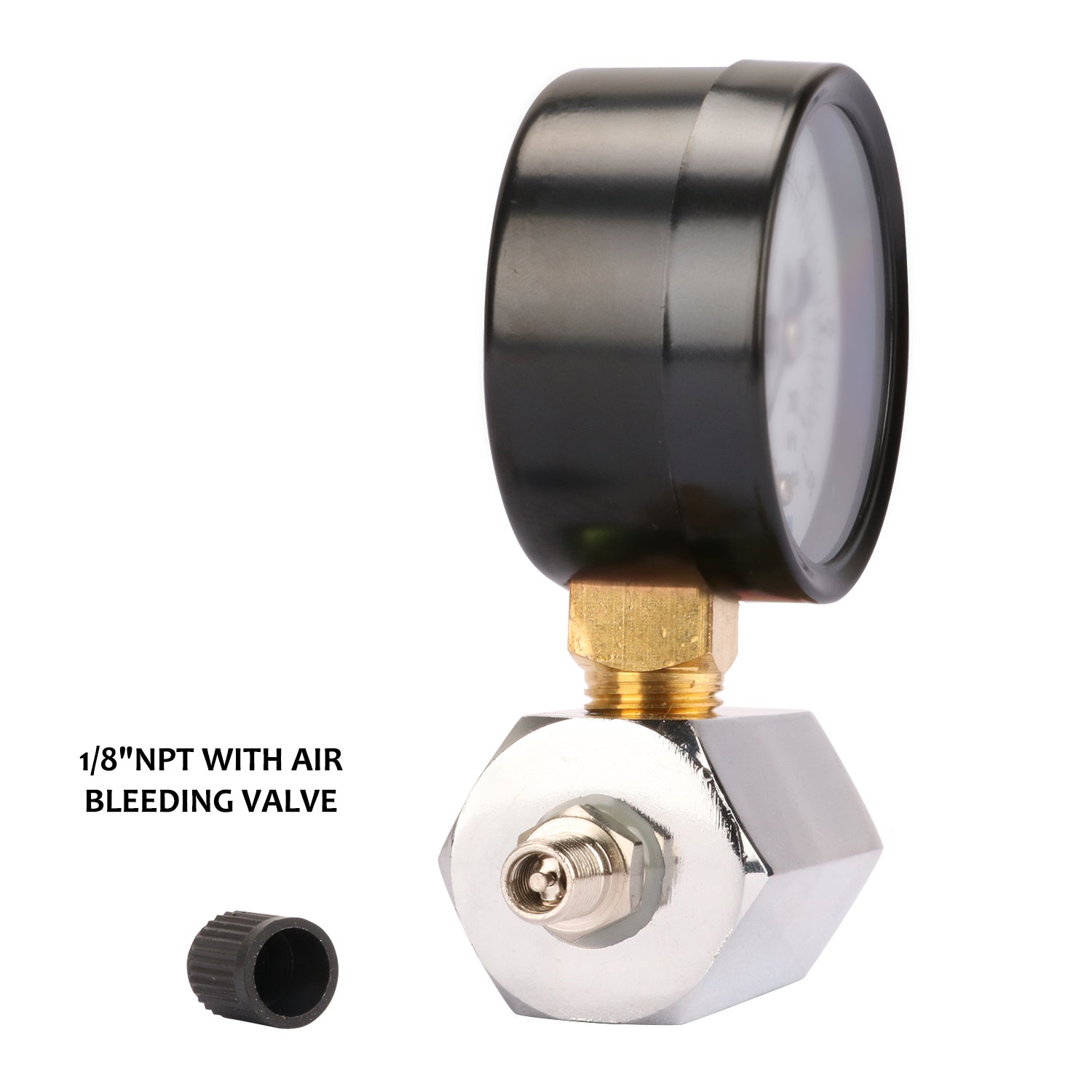

Process connection : 3/4"" NPT female, hexagon gas test body in chrome plated steel 1/8""NPT for pressure release
Case : Black steel case and bezel
Window : Clear plastic
Dial plate : aluminum, with pointer stop
Pointer : Aluminum, black, DIN style
Boudon tube : Copper alloy
Movement : Brass
Connection : Brass
IP class : IP43
Accuracy : +/-3-2-3%
Pressure range : 0-60psi single scale, 1psi division
Working temperature : -4 to 140 deg F/-20 to 60 deg C
Ambient temperature : 140 deg F/60 deg C maximum
Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
