Measureman 2" Dial Size, Liquid Filled Pool Filter Pressure Gauge, 304 Stainless Steel Case, 0-35psi/250kpa,1/4" NPT Center Back Mount
Measureman 2" Dial Size, Liquid Filled Pool Filter Pressure Gauge, 304 Stainless Steel Case, 0-35psi/250kpa,1/4" NPT Center Back Mount
- For pressure measuring and adjustment on the filter of swimming pool,Spa, Aquarium Water etc
- 2" dial size, 1/4"NPT center back mount
- Pressure range: 0-35psi/250kpa dual scale
- Stainless steel case, brass wetted parts, glycerin filled
- Accuracy: +/-3-2-3%
Product description
Description
This pressure gauge is designed for pressure measuring and adjustment on the filter for swimming pool, spa, aquarium etc.

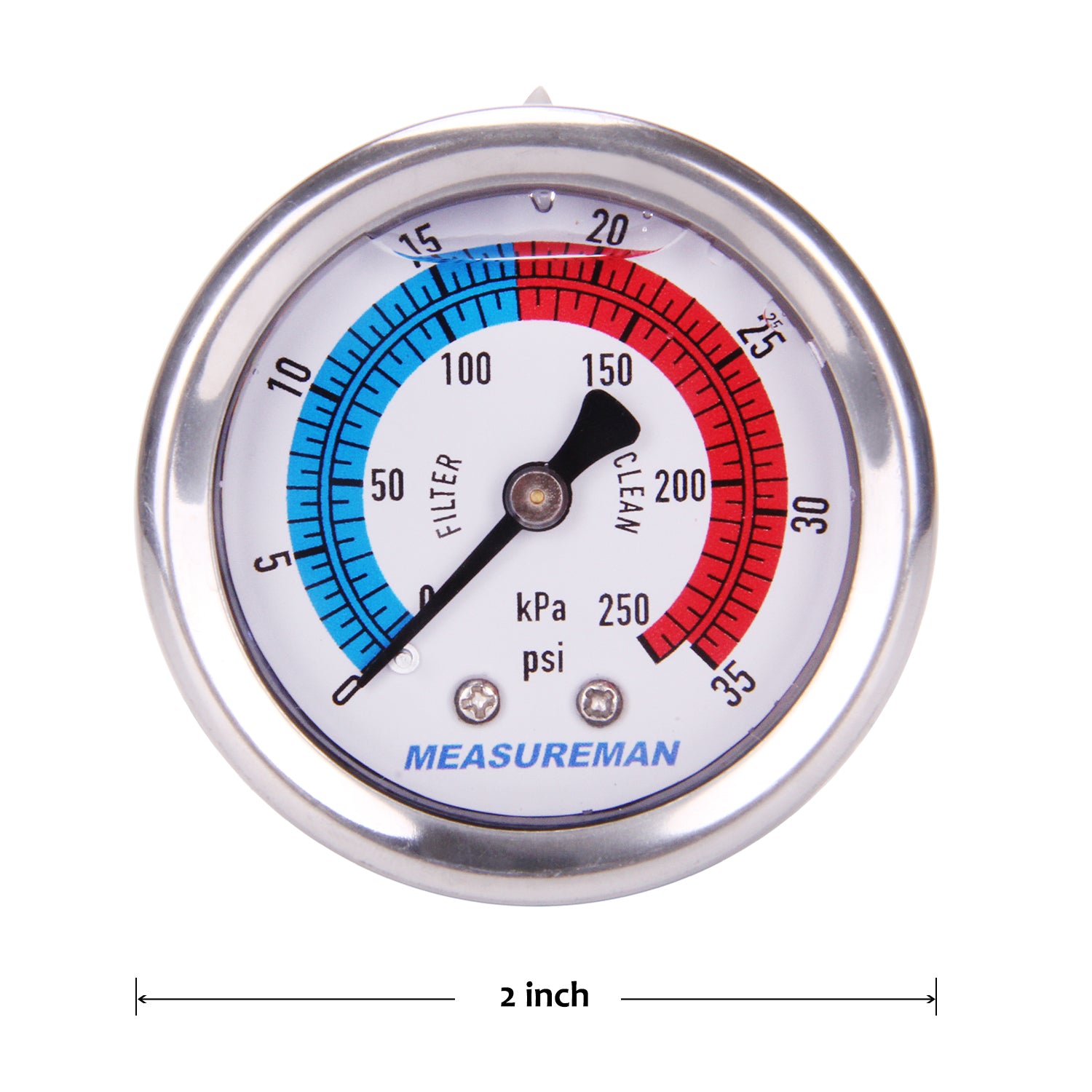

Dial size : 2"
Process connection: 1/4"NPT center back mount male
Case : 304 stainless steel case and crimped ring
Window : Polycarbonate
Dial plate : aluminum, with pointer stop
Pointer : Aluminum, black, DIN style
Boudon tube : Copper alloy
Movement : Brass
Connection : Brass, one piece design
Oil cap : rubber, gray color
Filling : Glycerin filled, dampens the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
IP class : IP67
Accuracy : +/-3-2-3%
Pressure range : 0-35psi/250kpa dual scale
Color zone, blue zone for filter 0-17.5psi, red zone for clean 17.5 to 35psi
Working temperature : -4 to 140 deg F/-20 to 60 deg C
Ambient temperature : 140 deg F/60 deg C maximum
