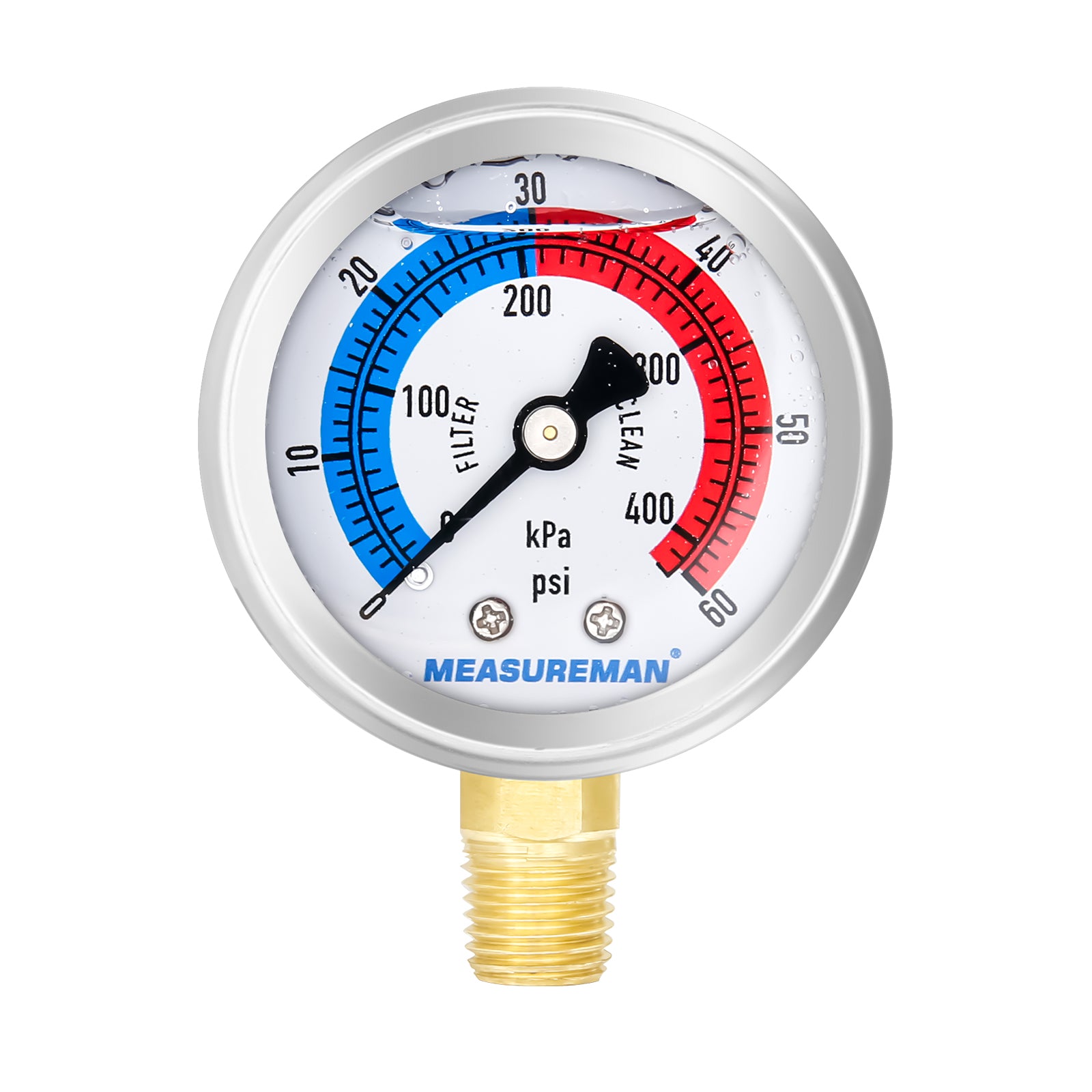

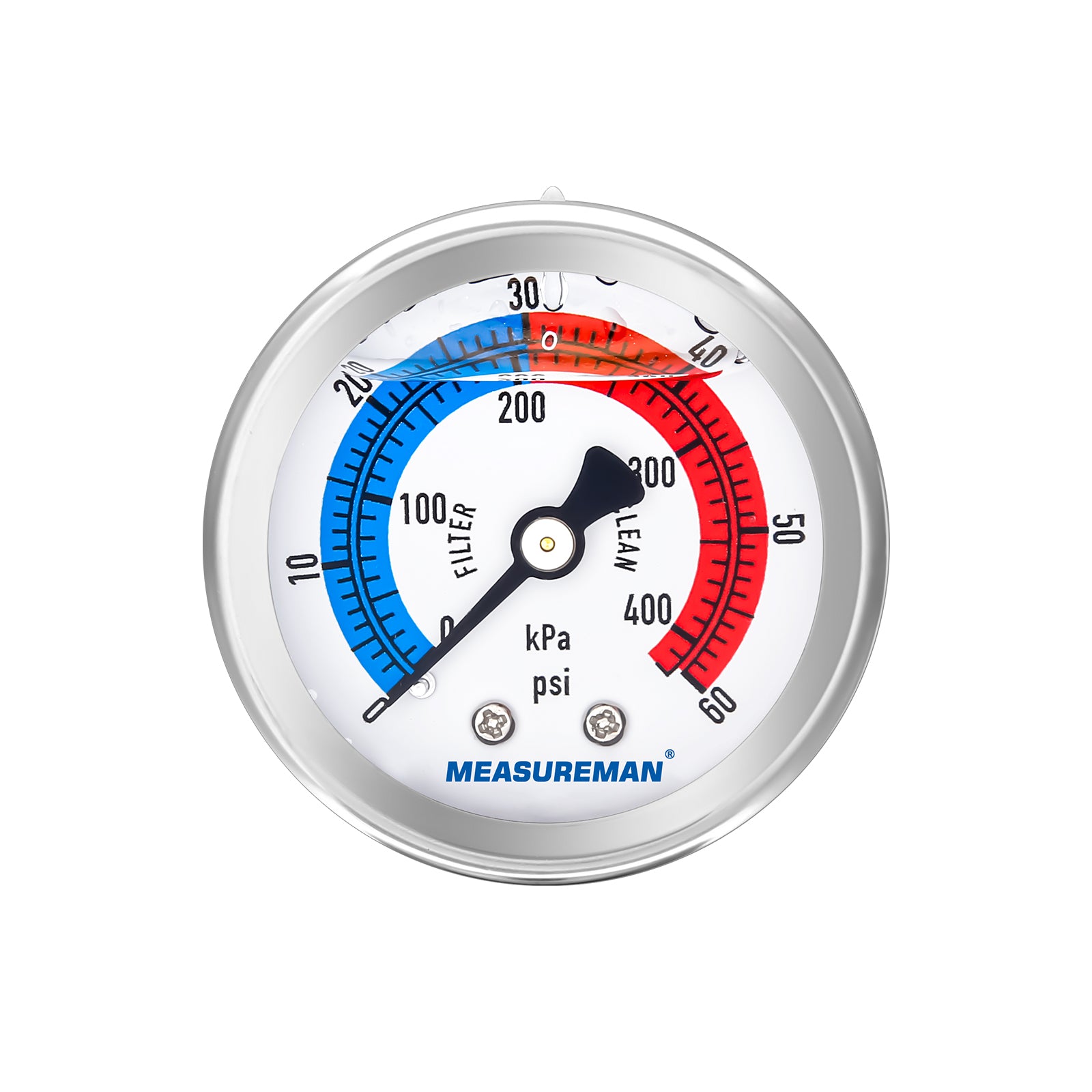

MEASUREMAN 2" Dial Size, Glycerin Filled Pool Filter Pressure Gauge, 304 Stainless Steel Case, 0-60psi/420kpa, 1/4"NPT Lower Mount
MEASUREMAN 2" Dial Size, Glycerin Filled Pool Filter Pressure Gauge, 304 Stainless Steel Case, 0-60psi/420kpa, 1/4"NPT Lower Mount
- For pressure measuring and adjustment on the filter of swimming pool,Spa, Aquarium Water etc
- 2" dial size, 1/4"NPT lower mount
- Pressure range: 0-60psi/420kpa dual scale
- Stainless steel case, brass wetted parts, glycerin filled
- Accuracy: +/-3-2-3%
Product Description
Description
This pressure gauge is designed for pressure measuring and adjustment on the filter for swimming pool, spa, aquarium etc.
Dial size: 2""
Process connection: 1/4""NPT lower mount male
Case: 304 stainless steel case and crimped ring
Window: Polycarbonate
Dial plate: aluminum, with pointer stop
Pointer: Aluminum, black, DIN style
Bourdon tube: Copper alloy
Movement: Brass
Connection: Brass, one piece design
Oil cap: rubber, gray color
Filling: Glycerin filled, dampens the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
IP class: IP67
Accuracy:+/-3-2-3%,
Pressure range: 0-60psi/420kpa dual scale
Color zone, blue zone for filter 0-30psi, red zone for clean 30 to 60psi
Working temperature:-4 to 140 deg F/-20 to 60 deg C
Ambient temperature:140 deg F/60 deg C maximum"
Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
