Size:0-1000psi/kpa | Style:Lower Mount
Description

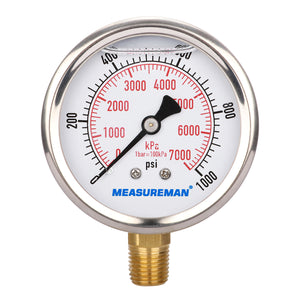

"This liquid filled pressure gauge is designed for media which is not corrosive to brass, also where vibration and pulsation is a concern.
Dial size: 2-1/2""
Process connection: 1/4""NPT lower mount
Case: 304 stainless steel case and crimped ring
Window: Polycarbonate
Dial plate: aluminum, with pointer stop
Pointer: Aluminum, black, DIN style
Bourdon tube: Copper alloy
Movement: Brass
Connection: Brass, one piece design
Oil cap: rubber, gray color
Filling: Glycerin filled, dampens the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
IP class: IP67
Accuracy: +/-3-2-3%
Range: 0-1000psi/7000kpa dual scale, psi outside, kpa inside
Working temperature:-4 to 140 deg F/-20 to 60 deg C
Ambient temperature:140 deg F/60 deg C maximum"
