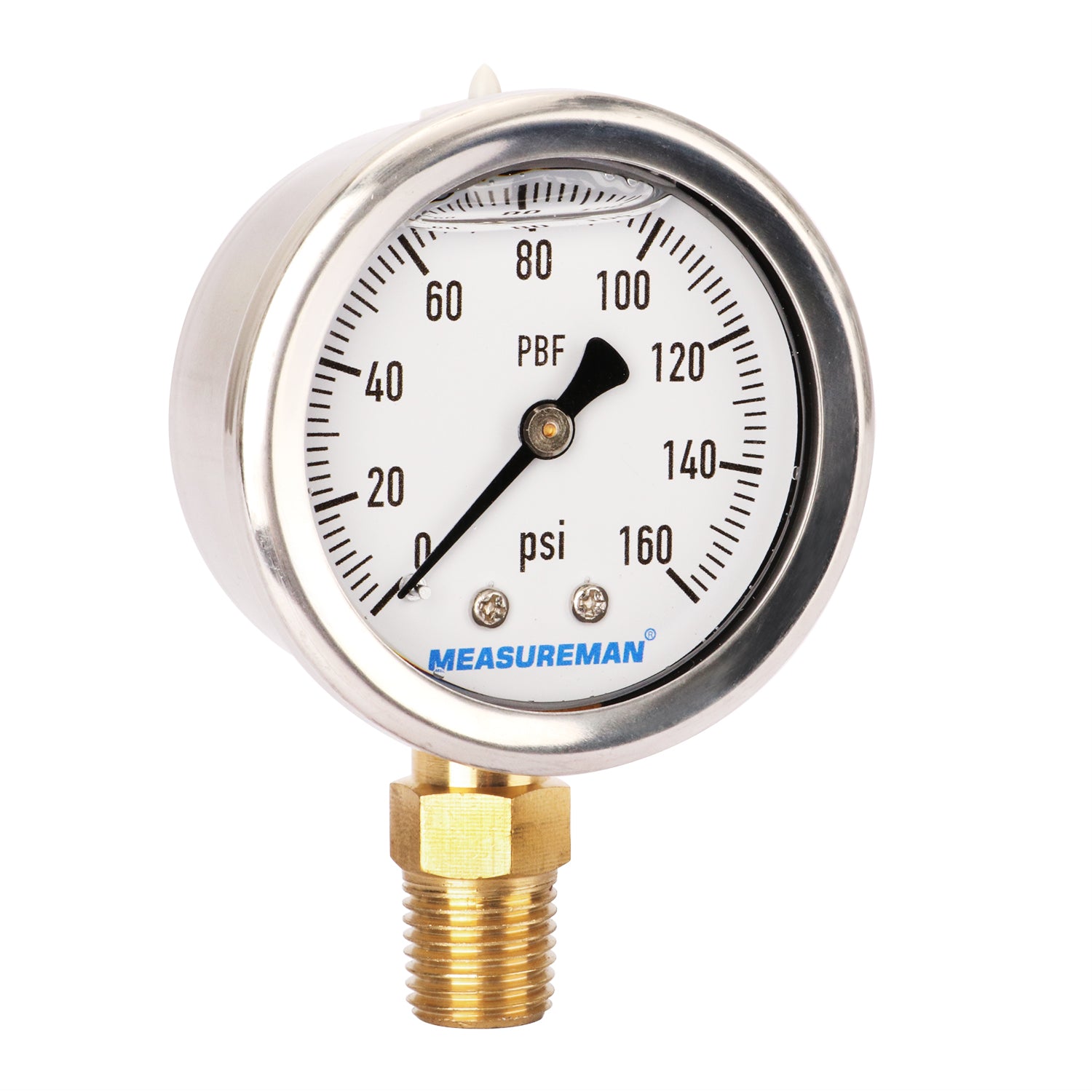

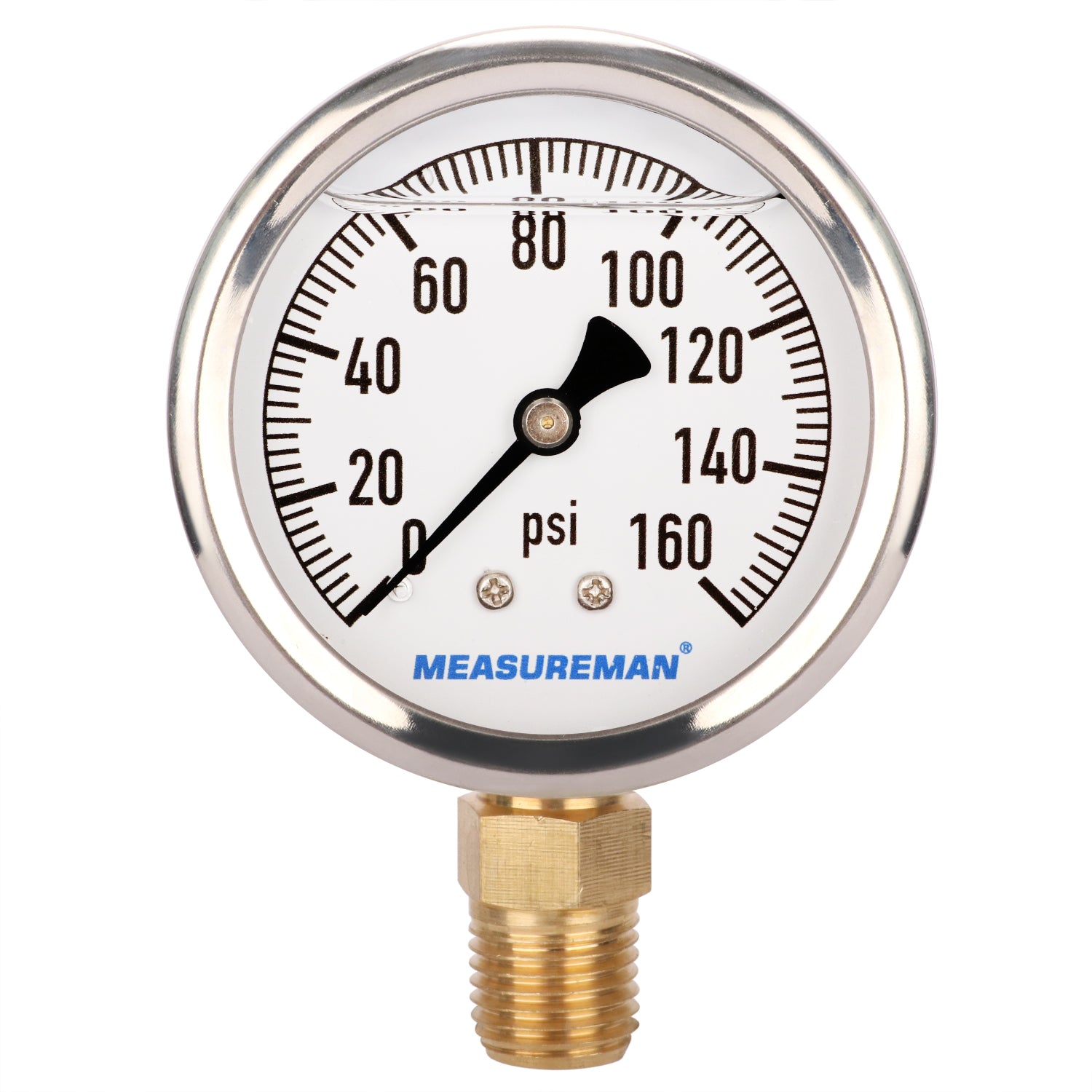

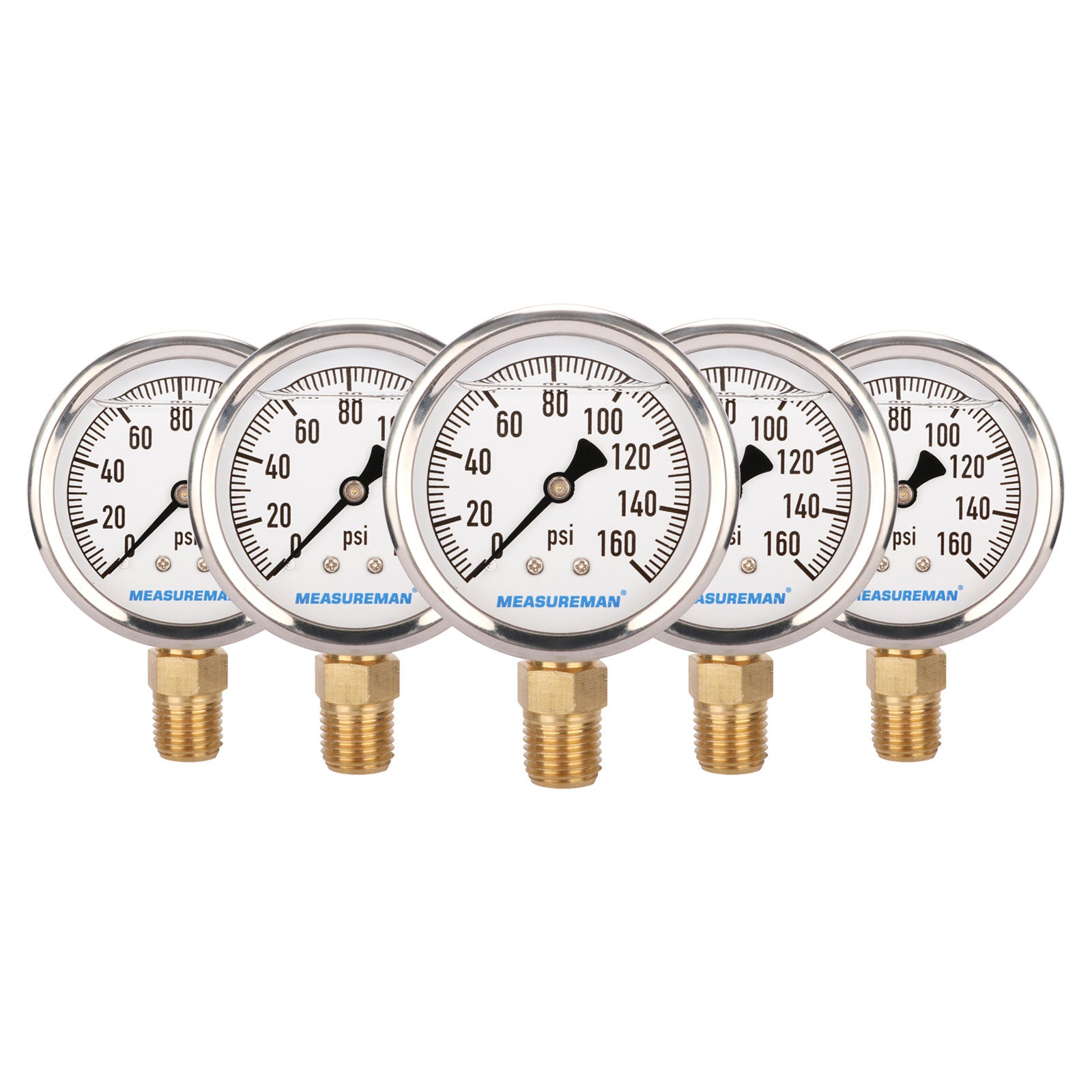

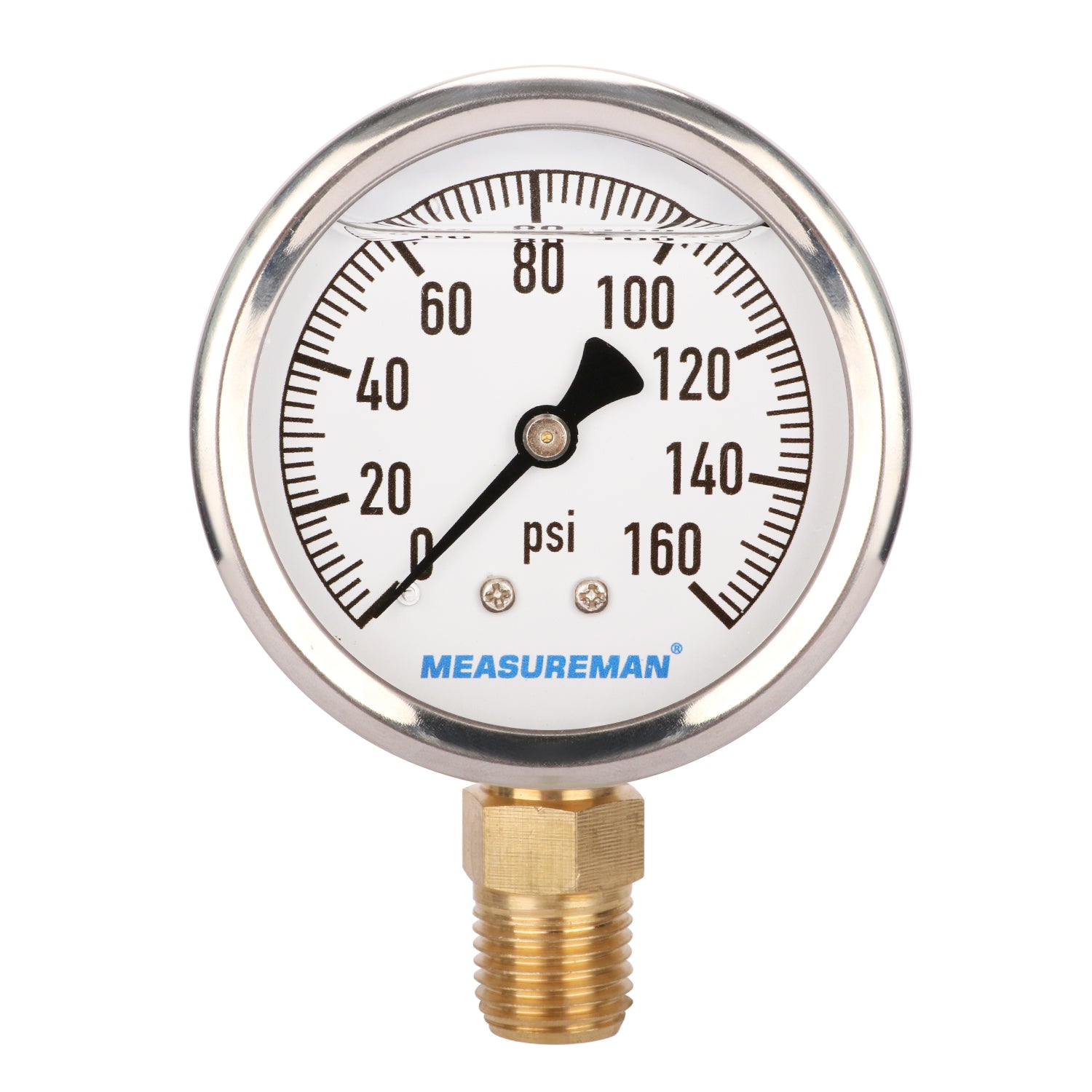

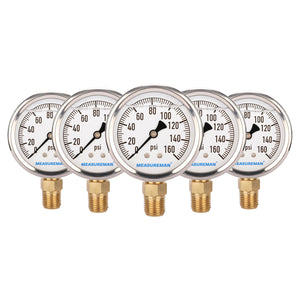

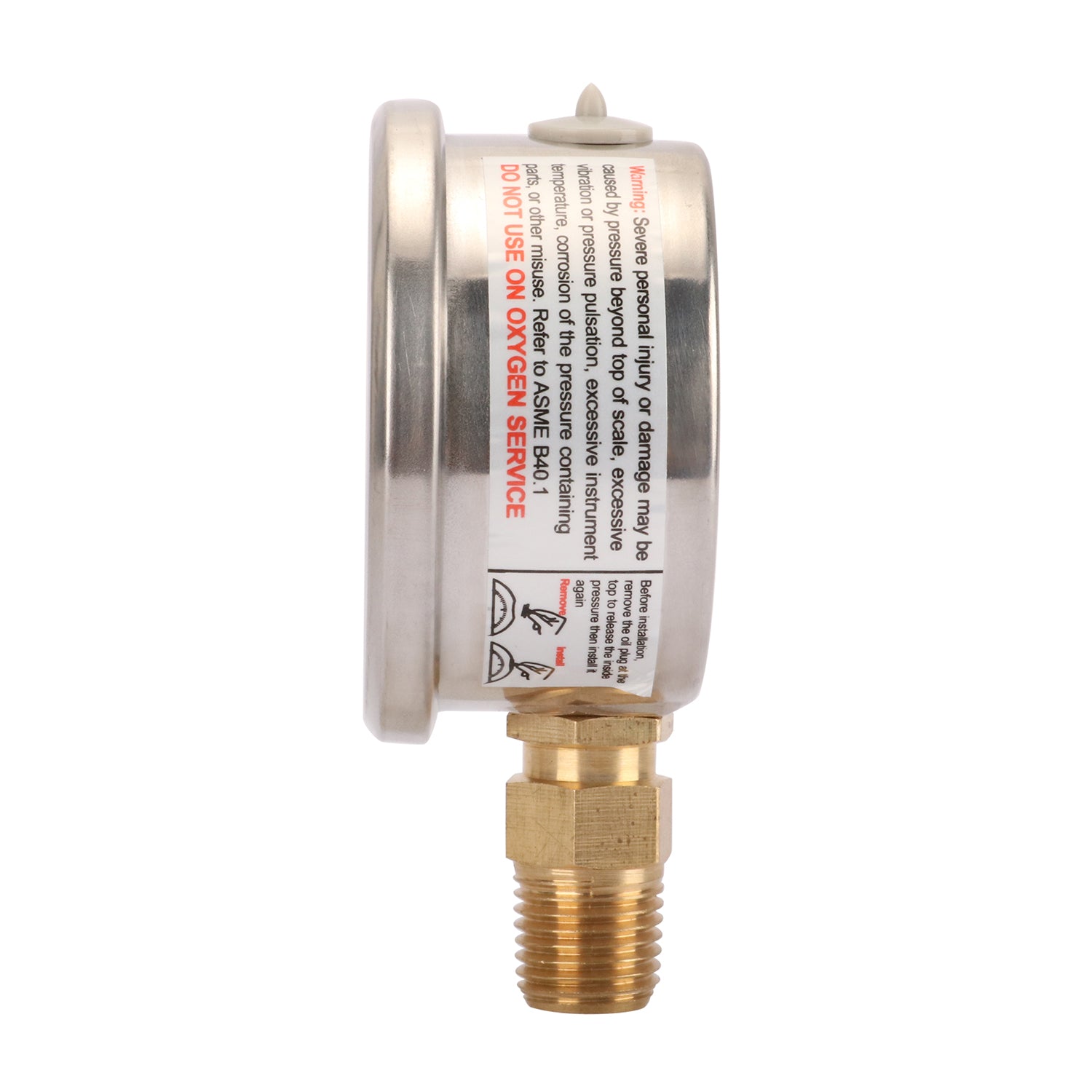

MEASUREMAN Lead-Free Glycerin Filled Pressure Gauge, 0-160psi, RV Regulator Replacement Pressure Gauge, 2" x 1/4"NPT Lower, Stainless Steel Case, Brass Inside, 5pieces
MEASUREMAN Lead-Free Glycerin Filled Pressure Gauge, 0-160psi, RV Regulator Replacement Pressure Gauge, 2" x 1/4"NPT Lower, Stainless Steel Case, Brass Inside, 5pieces
- For pressure measuring of water pressure, RV pressure regulator, reducer

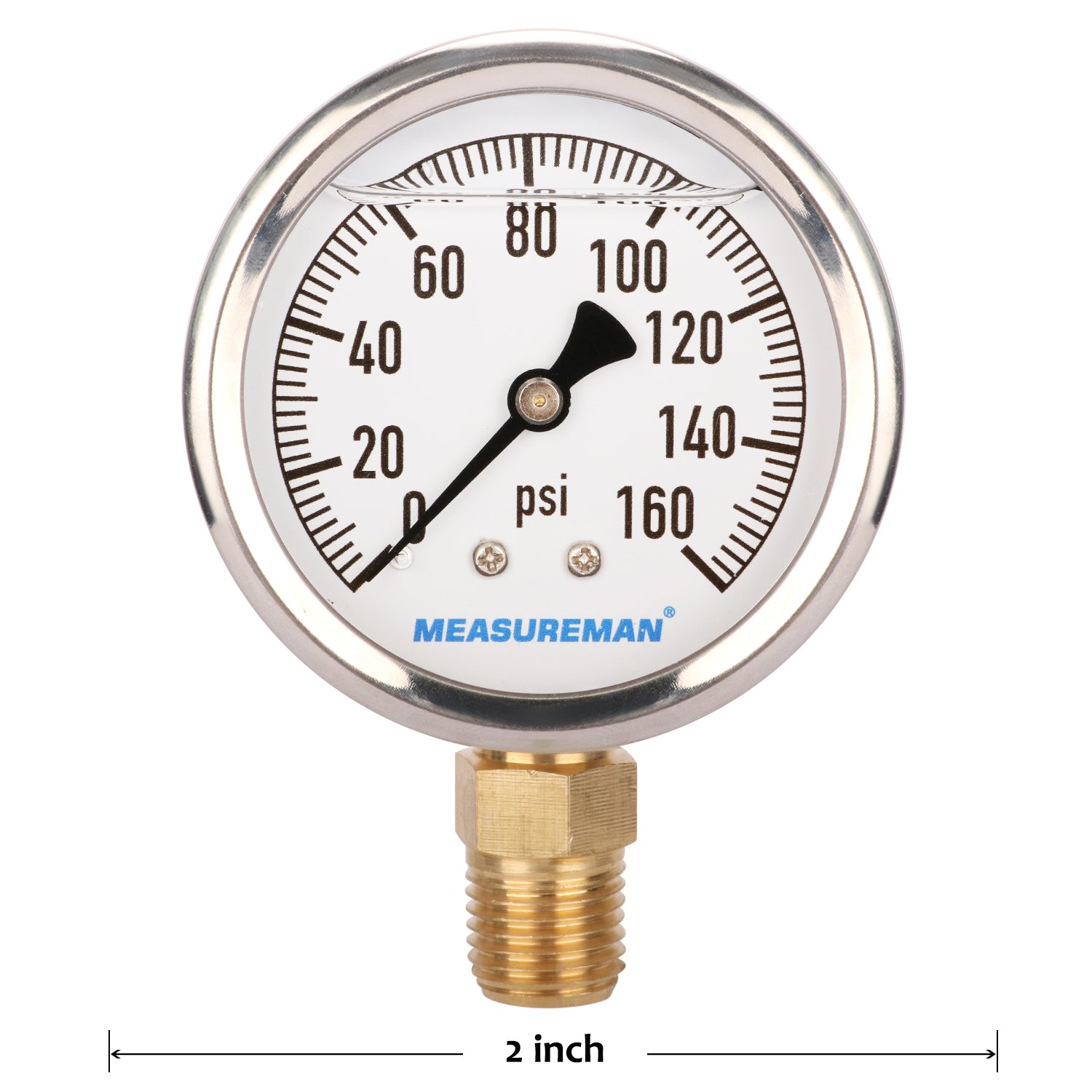

- 2" dial size, 1/4"NPT Lower mount
- Pressure range: 0-160psi single scale, big letters, easy to read
- Stainless steel case, brass wetted parts, glycerin filled
- Accuracy: +/-3-2-3%
Product description
Description
"This oil filled pressure gauge is designed for media which is not corrosive to brass, also where vibration and pulsation is a concern, typical use for RV pressure regulator, pressure reducer
Dial size: 2-1/2""
Process connection: 1/4""NPT lower mount
Case: 304 stainless steel case and crimped ring
Window: Polycarbonate
Dial plate: aluminum, with pointer stop
Pointer: Aluminum, black, DIN style
Bourdon tube: Copper alloy
Movement: Brass

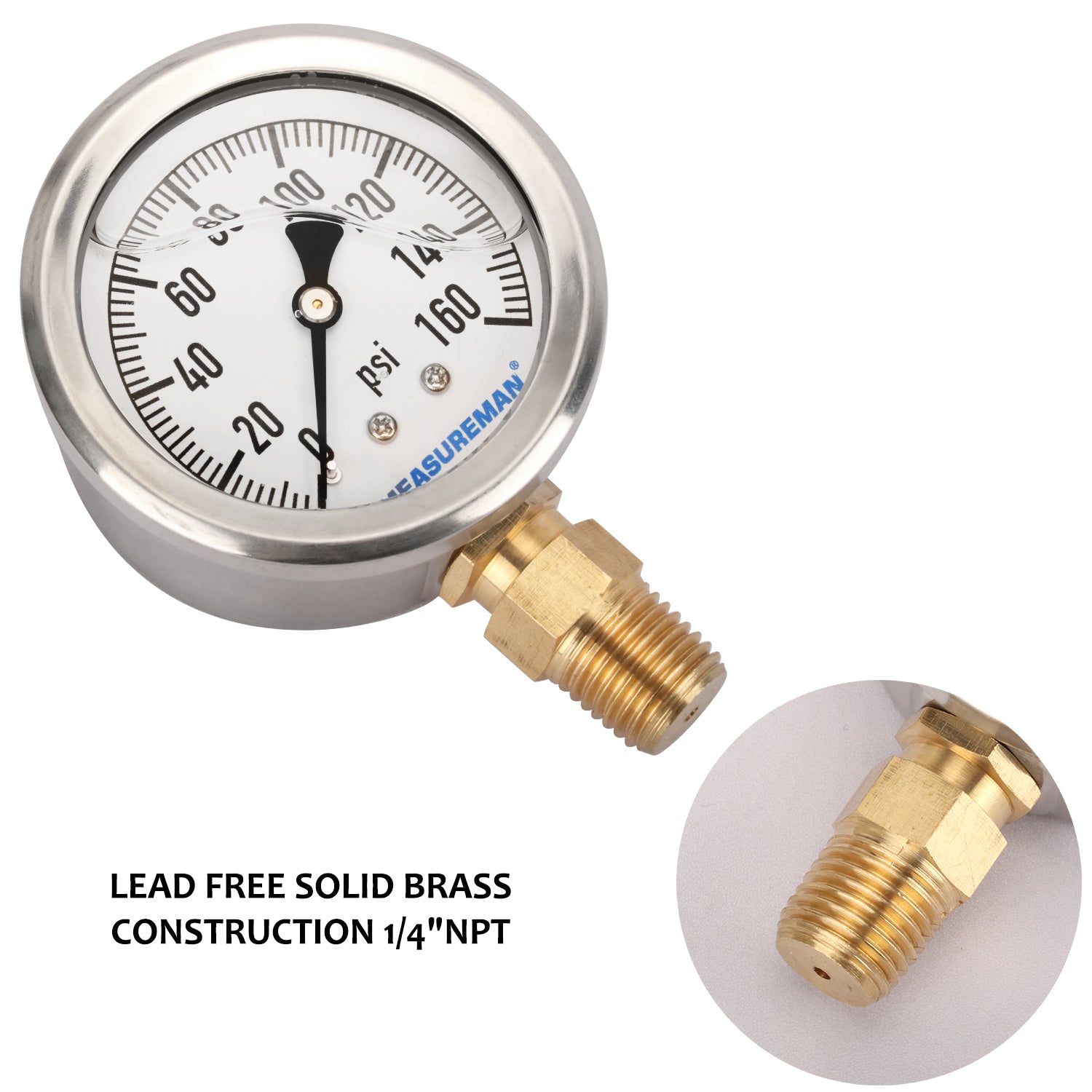

Connection: Brass, two piece design
Oil cap: rubber, gray color

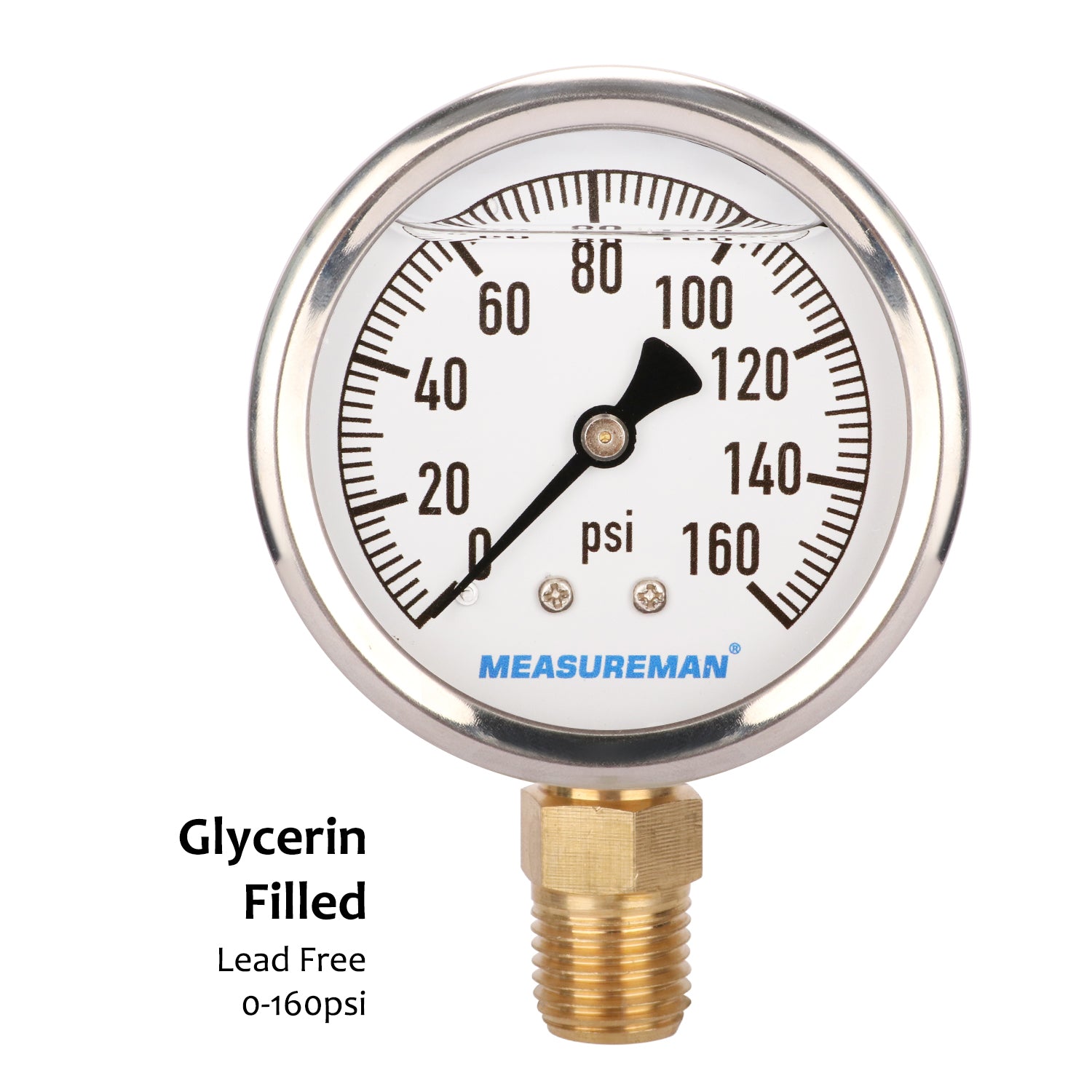

Filling: Glycerin filled, dampens the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
IP class: IP67
Accuracy: +/-3-2-3%
Range: 0-160psi single scale
Working temperature:-4 to 140 deg F/-20 to 60 deg C
Ambient temperature:140 deg F/60 deg C maximum"
Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
