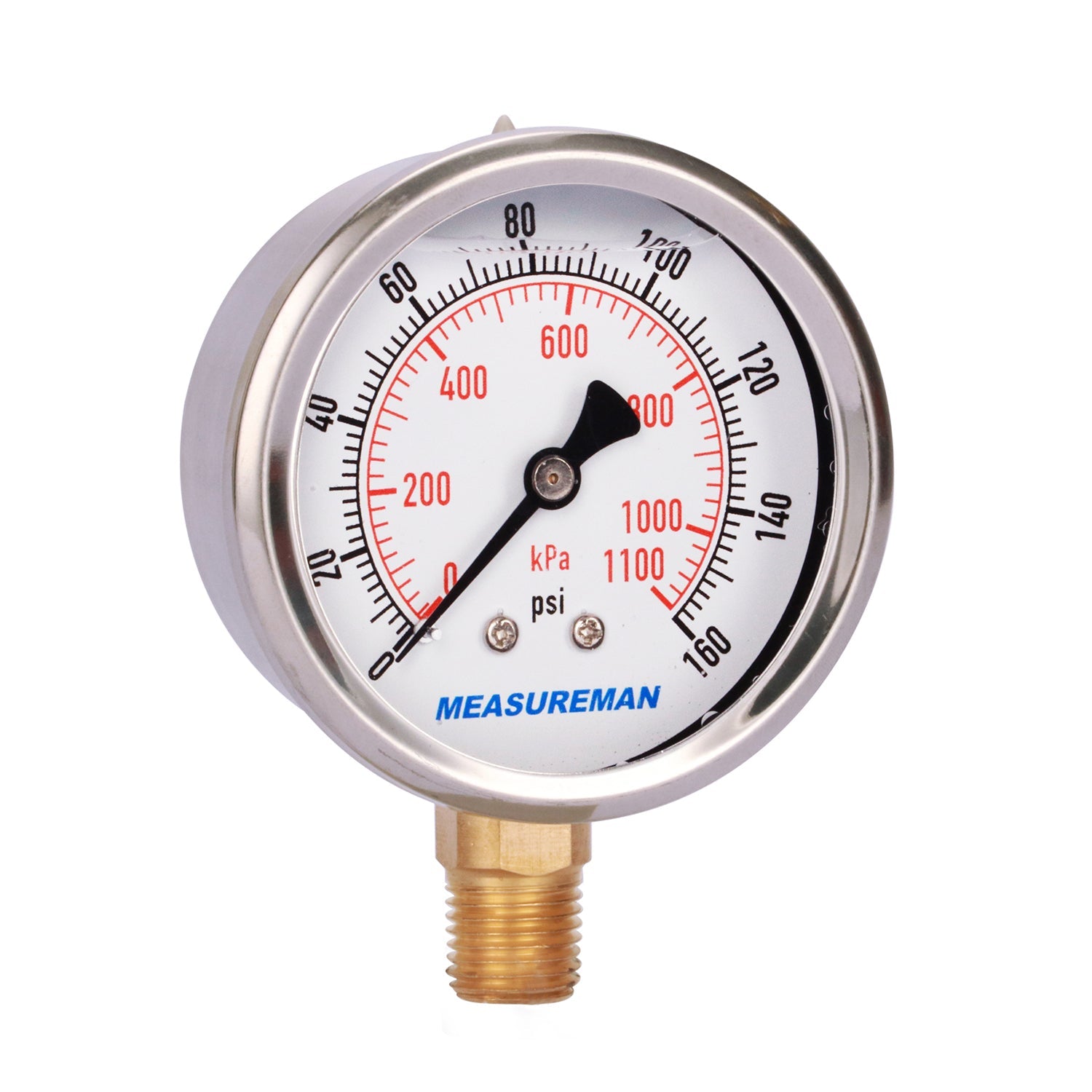

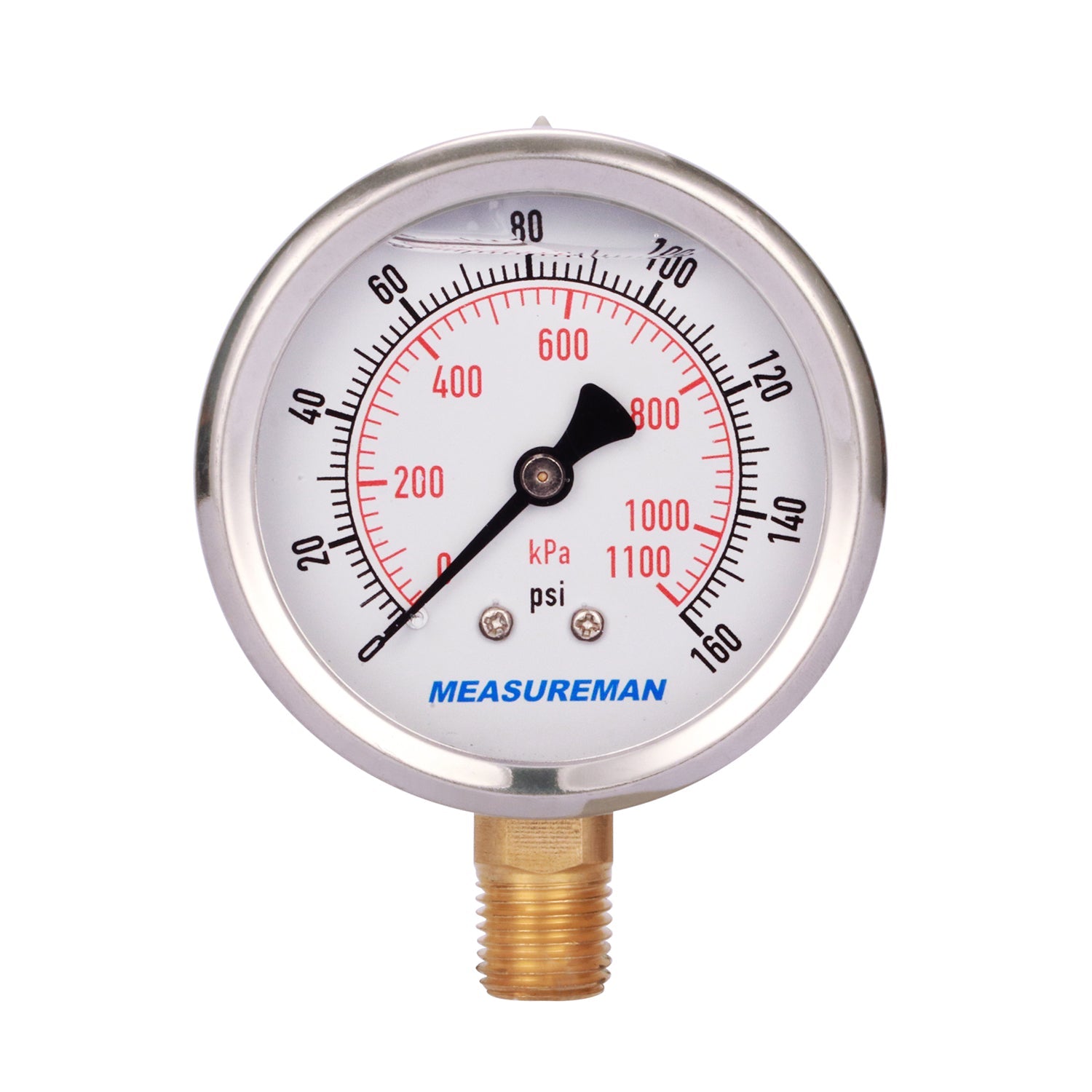

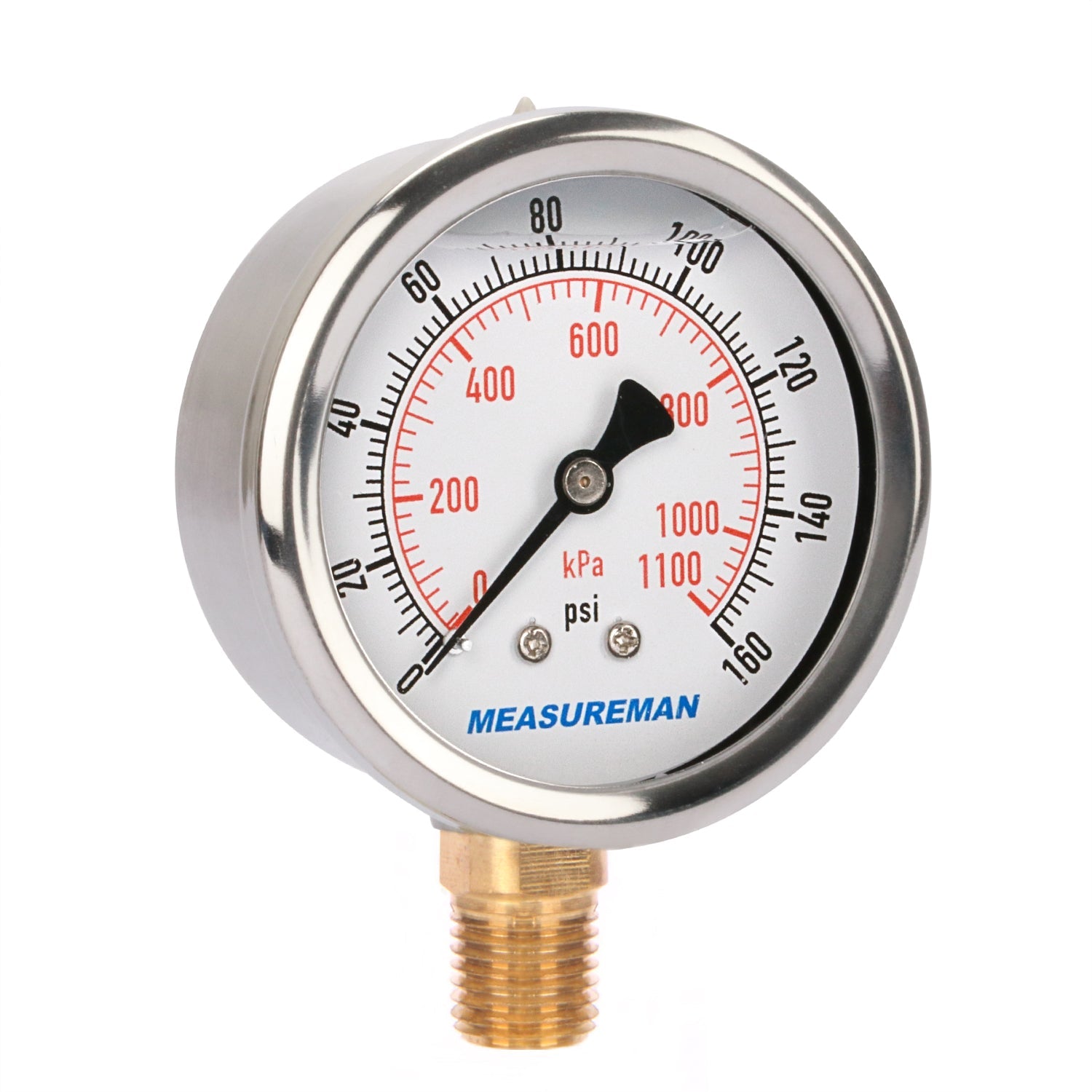

Measureman 2-1/2" Dial Size, Oil Filled Pressure Gauge, 0-160psi/kpa, 304 Stainless Steel Case, 1/4"NPT Lower Mount-50pcs

$498.00
Unit price per
Save $101

Tax included. Shipping calculated at checkout.

Shipped from factory direct, about 7-10days

For pressure measuring of gas, liquid which is not corrosive to brass, also where vibration and pulsation is a concern.

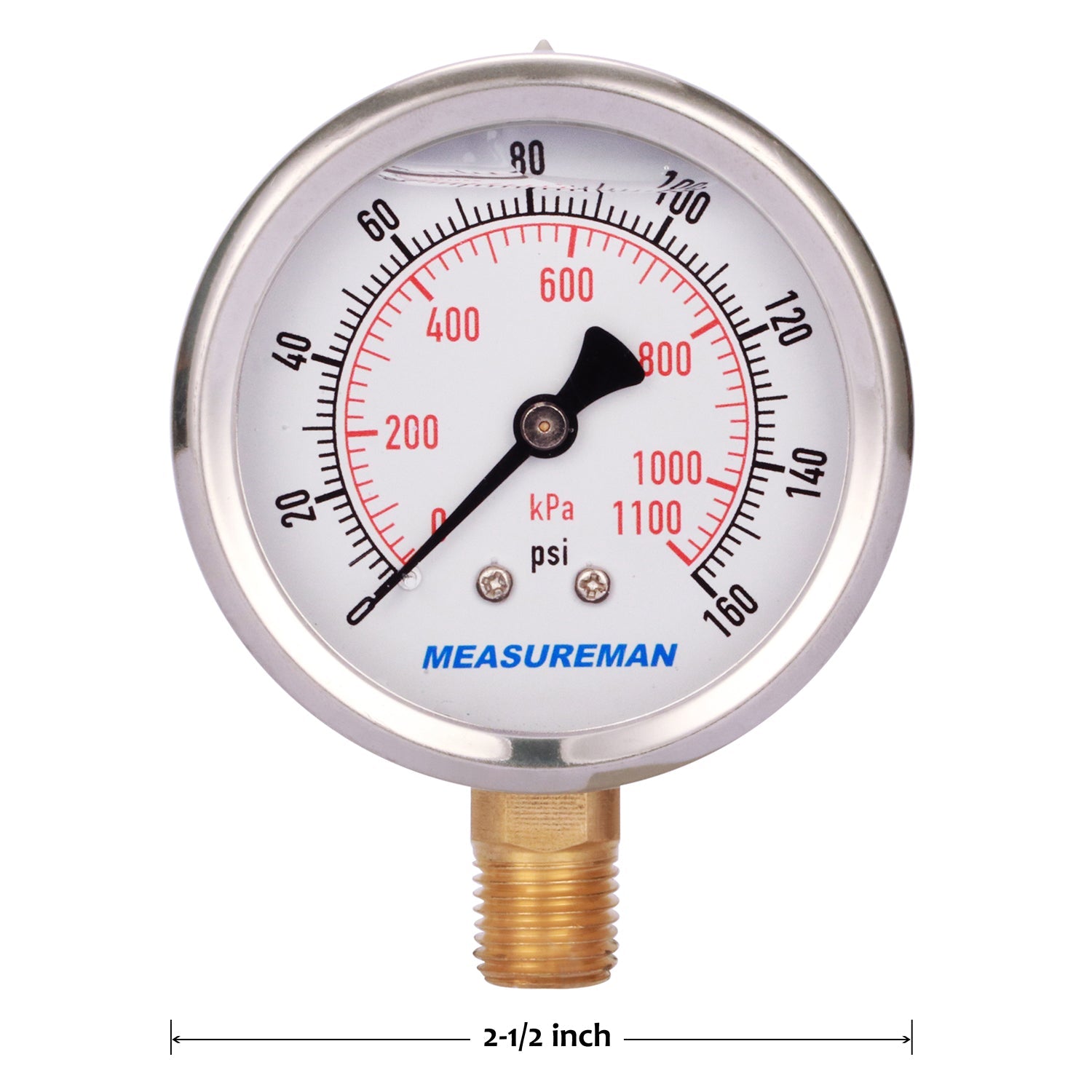

2-1/2" dial size, 1/4"NPT lower mount
Pressure range: 0-160psi/kpa dual scale
Stainless steel case, brass wetted parts, glycerin filled
Accuracy: +/-3-2-3%

Product description

Size:0-160 psi/kpa | Style:Lower Mount

Description
This liquid filled pressure gauge is designed for media which is not corrosive to brass, also where vibration and pulsation is a concern.

Dial size : 2-1/2"
Process connection : 1/4"NPT lower mount

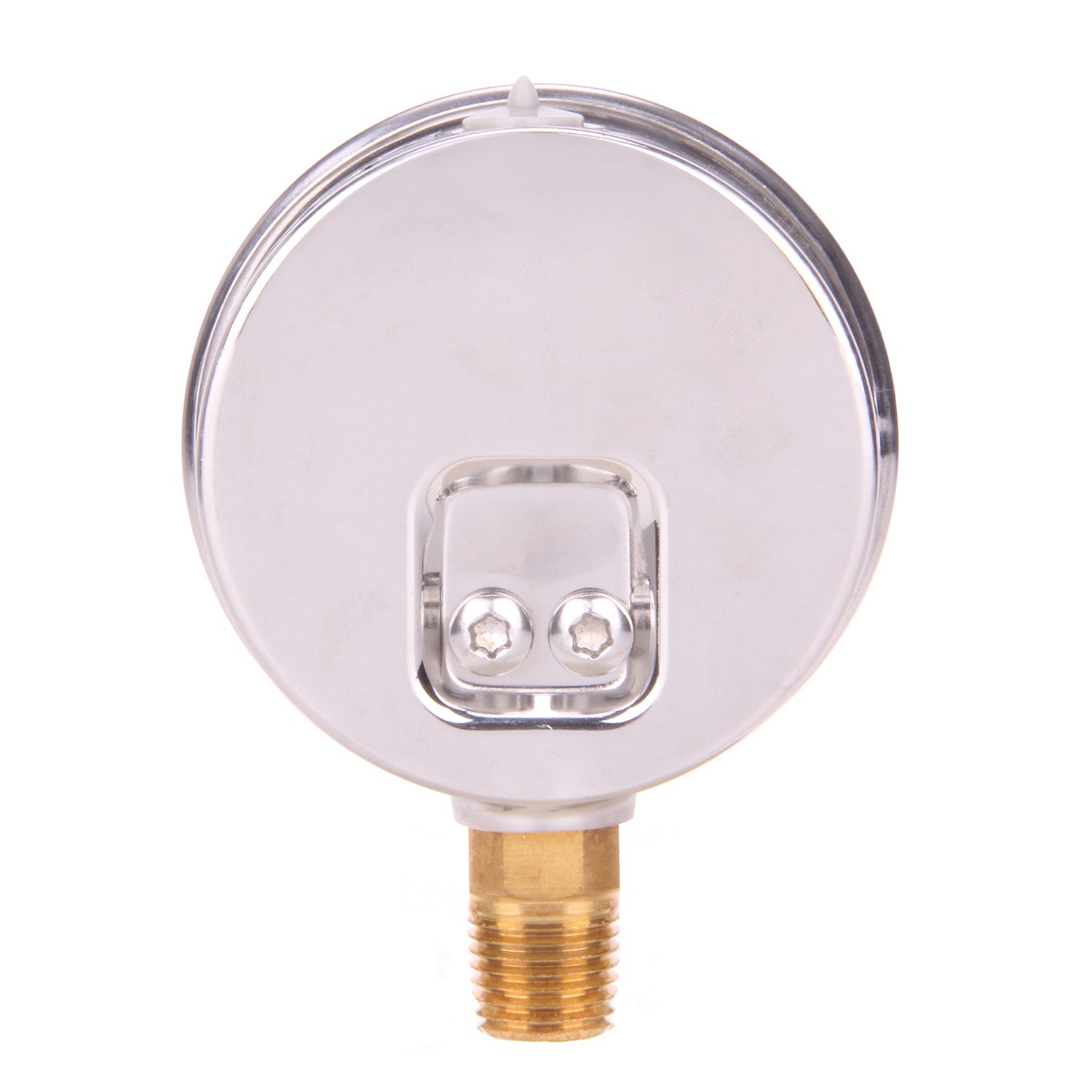

Case : 304 stainless steel case and crimped ring
Window : Polycarbonate
Dial plate : aluminum, with pointer stop
Pointer : Aluminum, black, DIN style
Boudon tube : Copper alloy
Movement : Brass

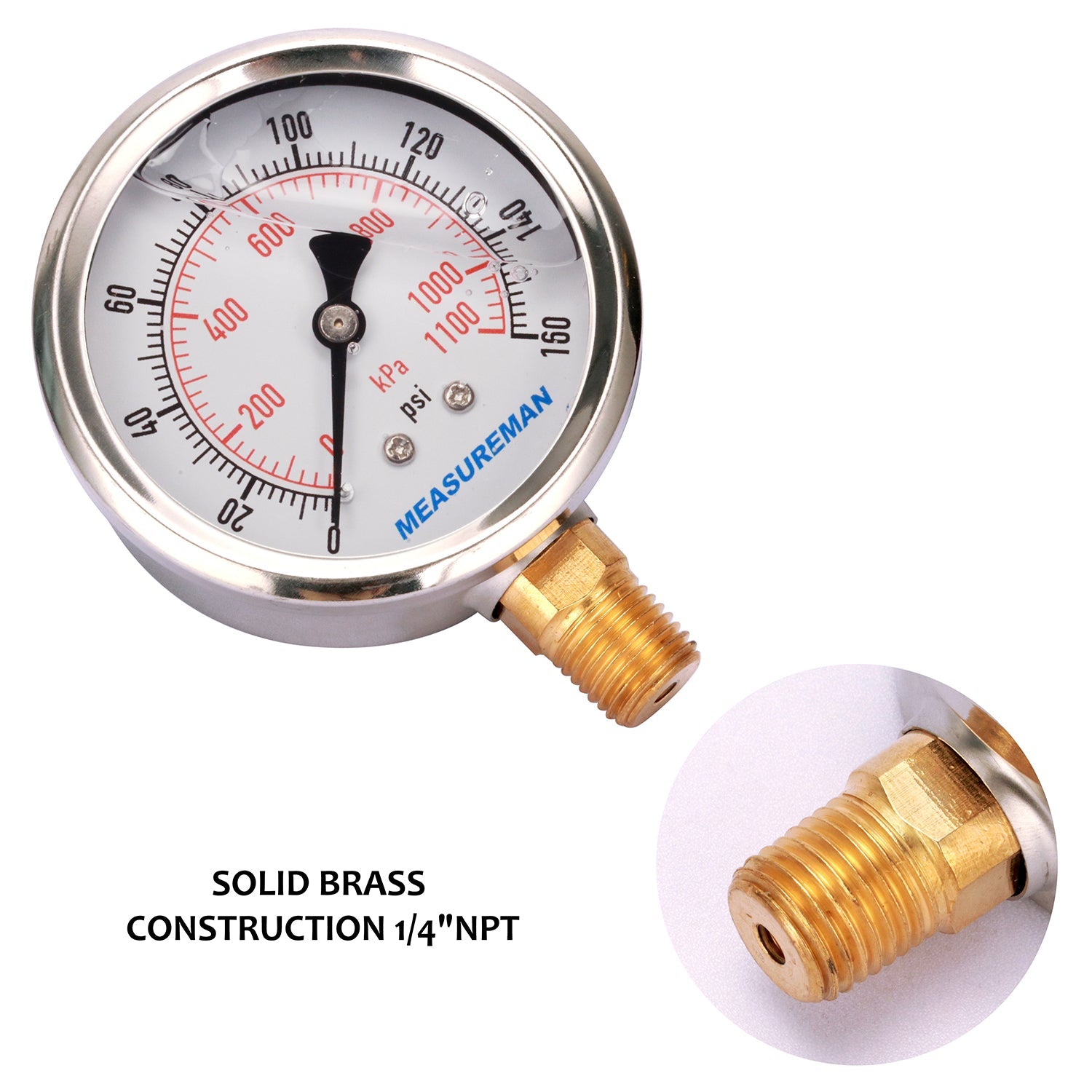

Connection : Brass, one piece design

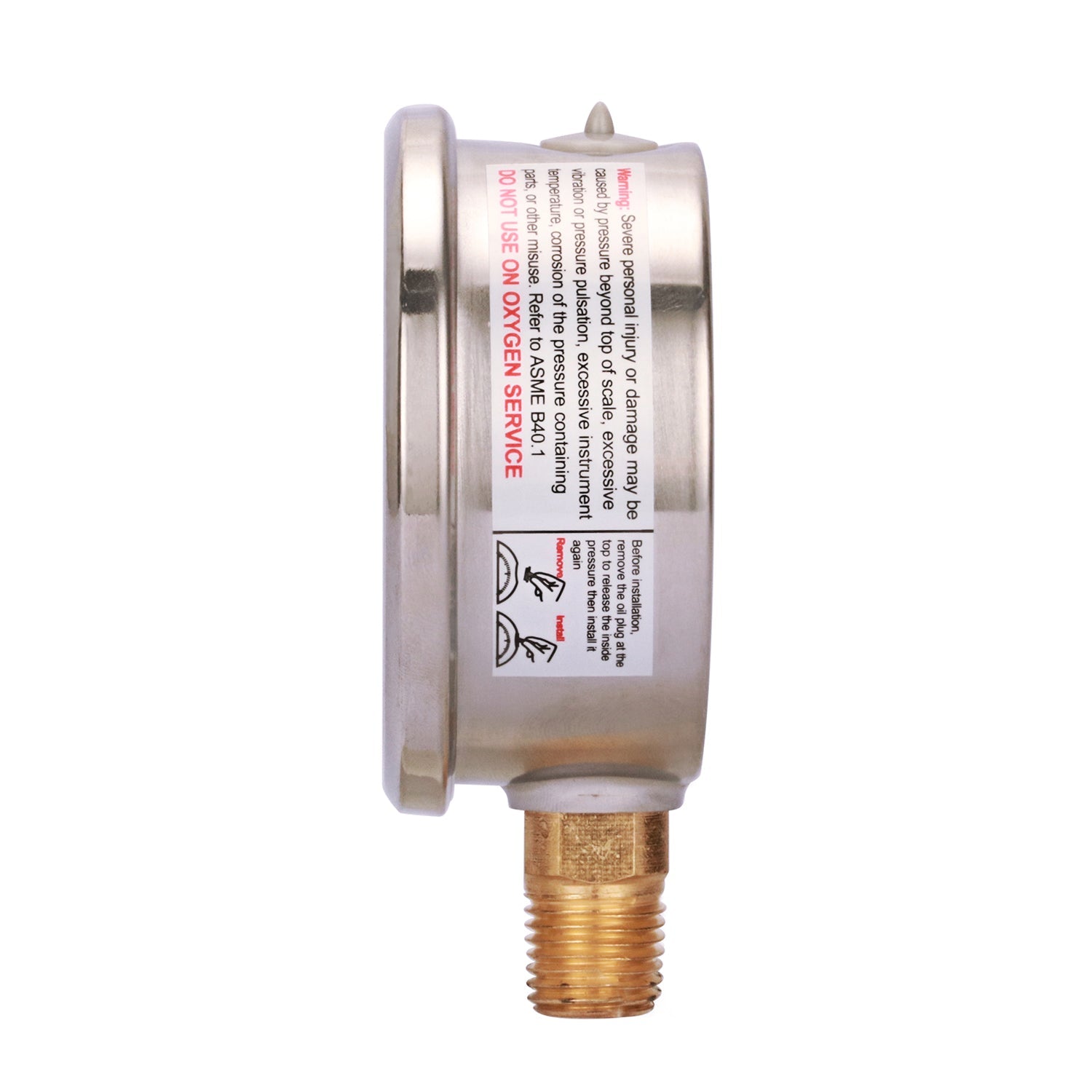

Oil cap : rubber, gray color

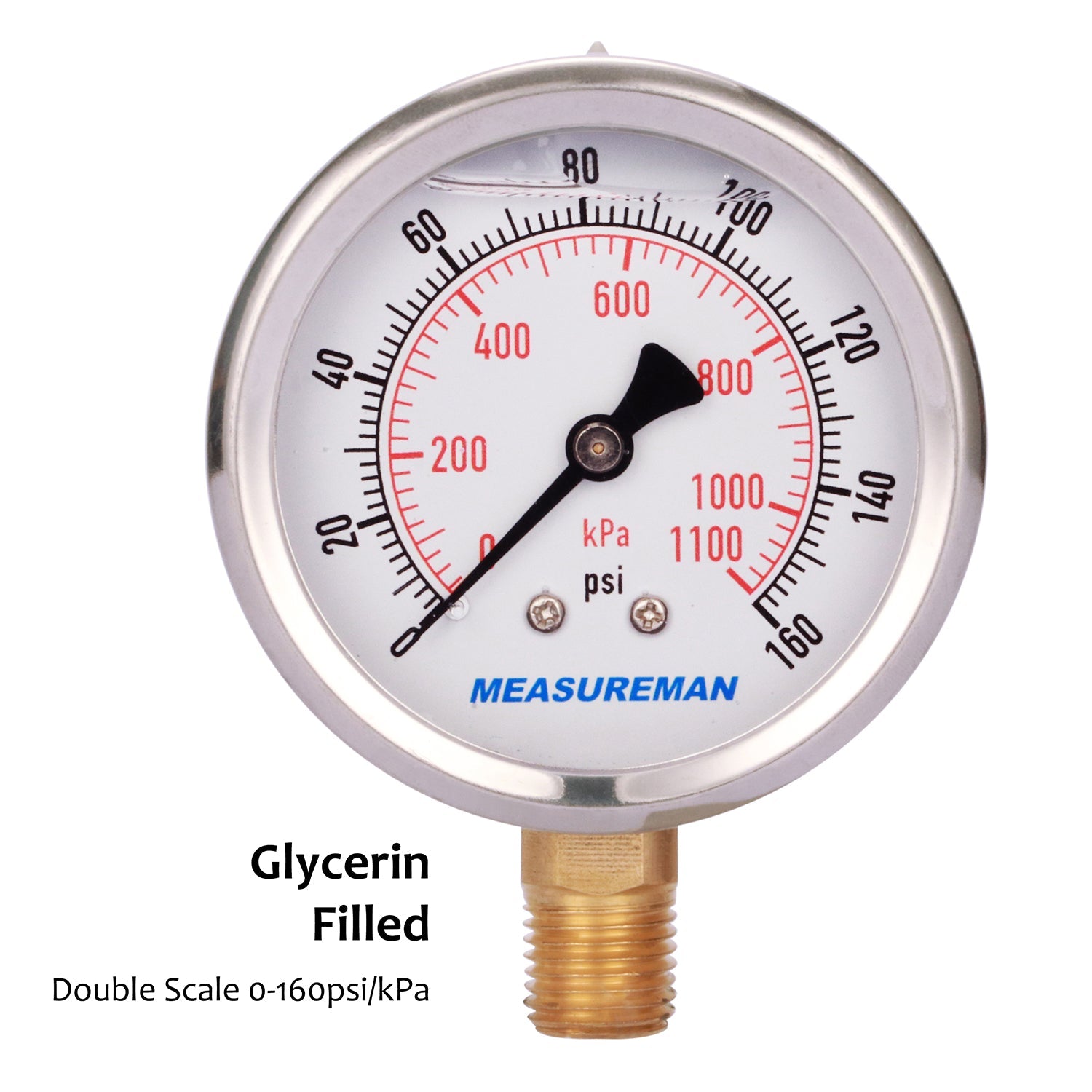

Filling : Glycerin filled, dampens the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
IP class : IP67
Accuracy : +/-3-2-3%
Range : 0-160psi/kpa dual scale, psi outside, kpa inside
Working temperature : -4 to 140 deg F/-20 to 60 deg C
Ambient temperature : 140 deg F/60 deg C maximum

Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
