Measureman 2-1/2" Dial Size, Liquid Filled Hydraulic Pressure Gauge, 0-5000psi/kpa, 304 Stainless Steel Case, 1/4"NPT Lower Mount-50pcs
Measureman 2-1/2" Dial Size, Liquid Filled Hydraulic Pressure Gauge, 0-5000psi/kpa, 304 Stainless Steel Case, 1/4"NPT Lower Mount-50pcs
Shipped from factory direct, about 7-10days
- For pressure measuring of gas, liquid which is not corrosive to brass, also where vibration and pulsation is a concern.
- 2-1/2" dial size, 1/4"NPT lower mount
- Pressure range: 0-5000psi/kpa dual scale
- Stainless steel case, brass wetted parts, glycerin filled
- Accuracy: +/-3-2-3%
Product description
Description
This liquid filled pressure gauge is designed for media which is not corrosive to brass, also where vibration and pulsation is a concern.
Dial size : 2-1/2"

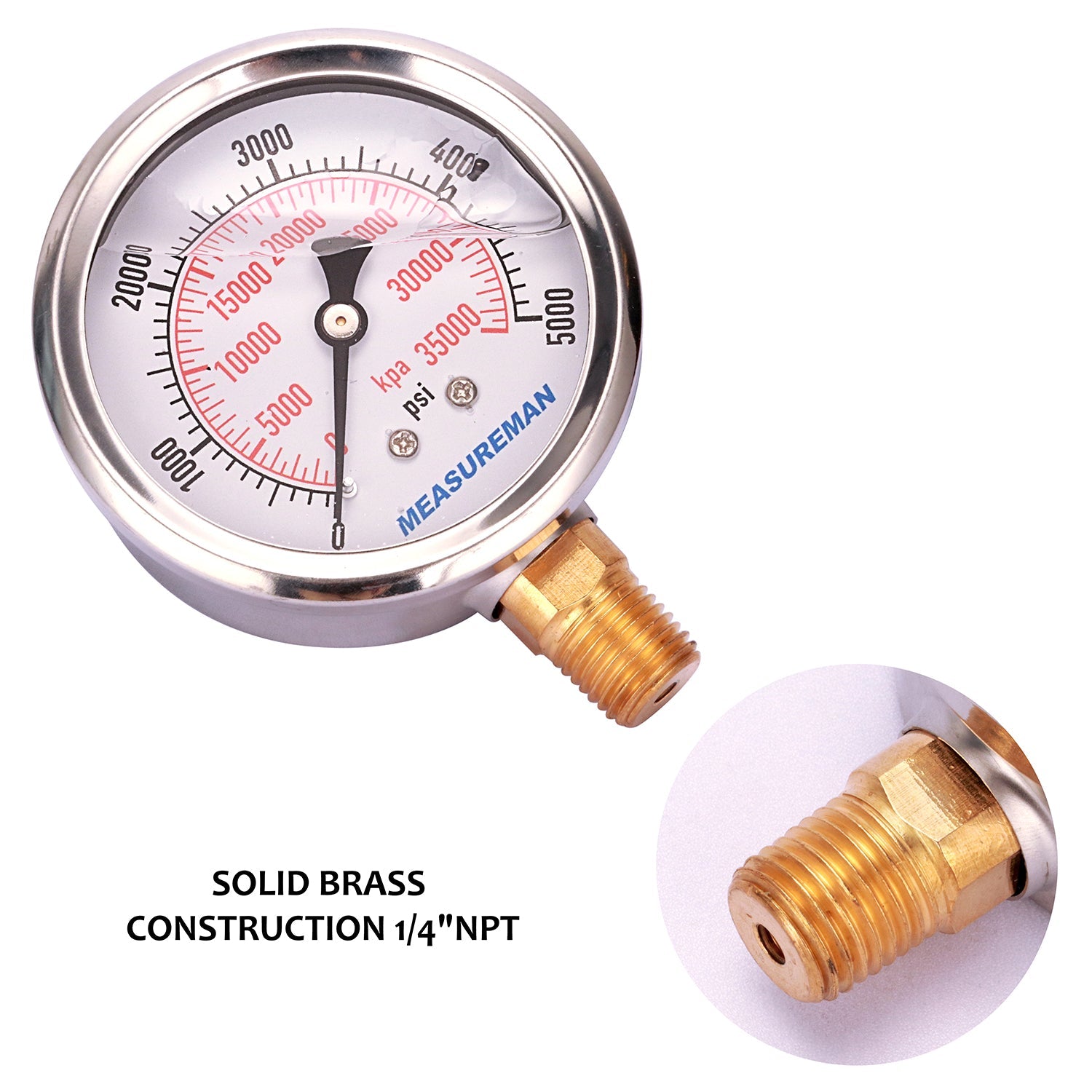

Process connection : 1/4"NPT lower mount
Case : 304 stainless steel case and crimped ring
Window : Polycarbonate
Dial plate : aluminum, with pointer stop
Pointer : Aluminum, black, DIN style
Boudon tube : Copper alloy
Movement : Brass
Connection : Brass, one piece design
Oil cap : rubber, gray color

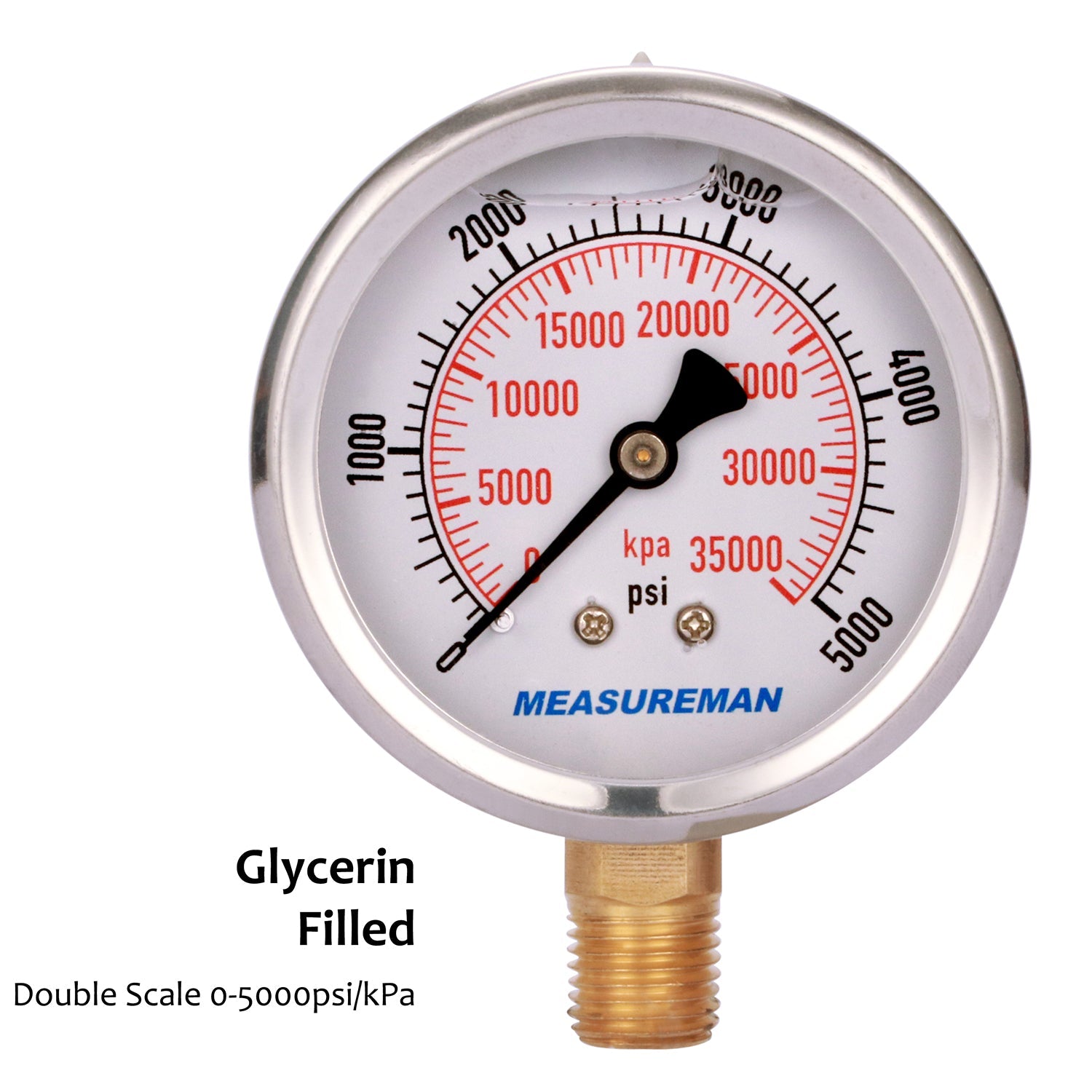

Filling : Glycerin filled, dampens the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
IP class : IP67
Accuracy : +/-3-2-3%
Range : 0-5000psi/kpa dual scale, psi outside, kpa inside
Working temperature : -4 to 140 deg F/-20 to 60 deg C
Ambient temperature : 140 deg F/60 deg C maximum
Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
