Measureman 2" Dry and Utility Pressure Gauge, Start and Clean Filter Pressure Gauge, Swimming Pool Filter Pressure Gauge, Spa, Aquarium, Water Pressure Gauge, 1/4"NPT Center Back Mount 0-60Psi/bar

$11.97
Unit price per
Save $7

Tax included. Shipping calculated at checkout.

For pressure measuring on the filter of swimming pool,Spa, Aquarium Water etc
2" dial size, 1/4"NPT Center back mount

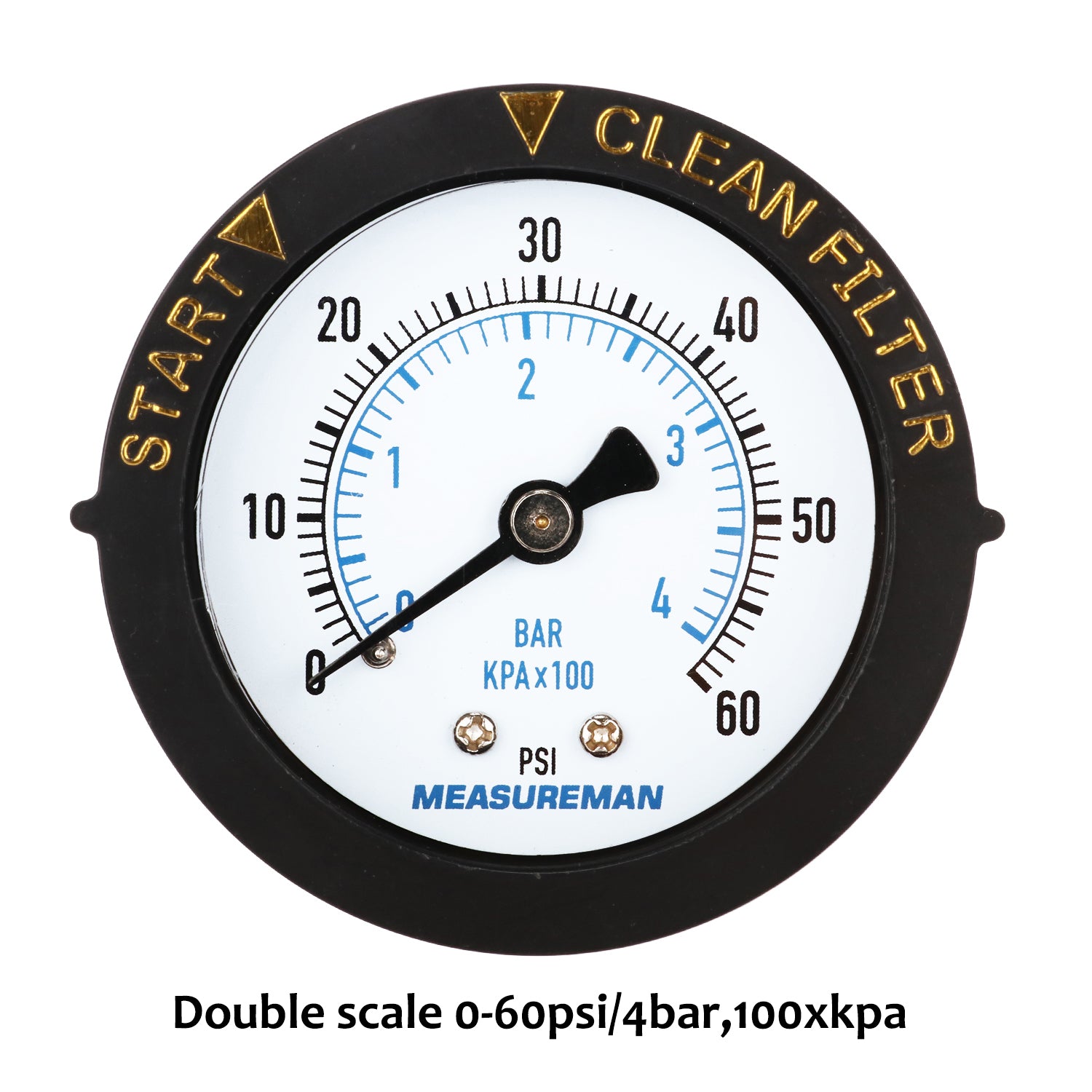

Pressure range: 0-60psi/bar 100xkpa double scale

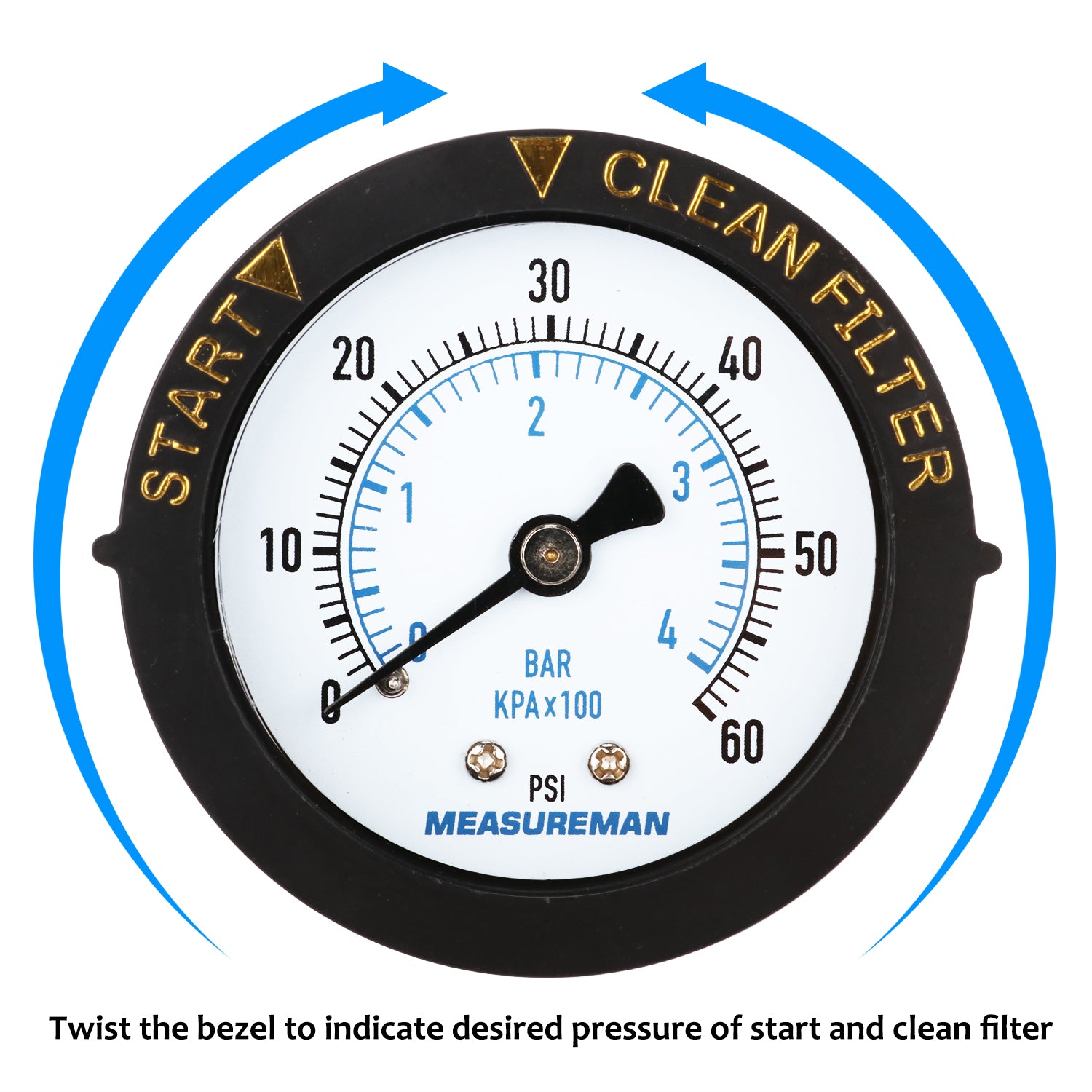

Plastic case, twist to move bezel, start and clean filter, brass wetted parts, dry
Accuracy: +/-3-2-3%

Product description

Size:Back 60psi/bar Start and Clean

Description
This pressure gauge is designed for water pressure measuring on the filter for swimming pool, spa, aquarium etc.

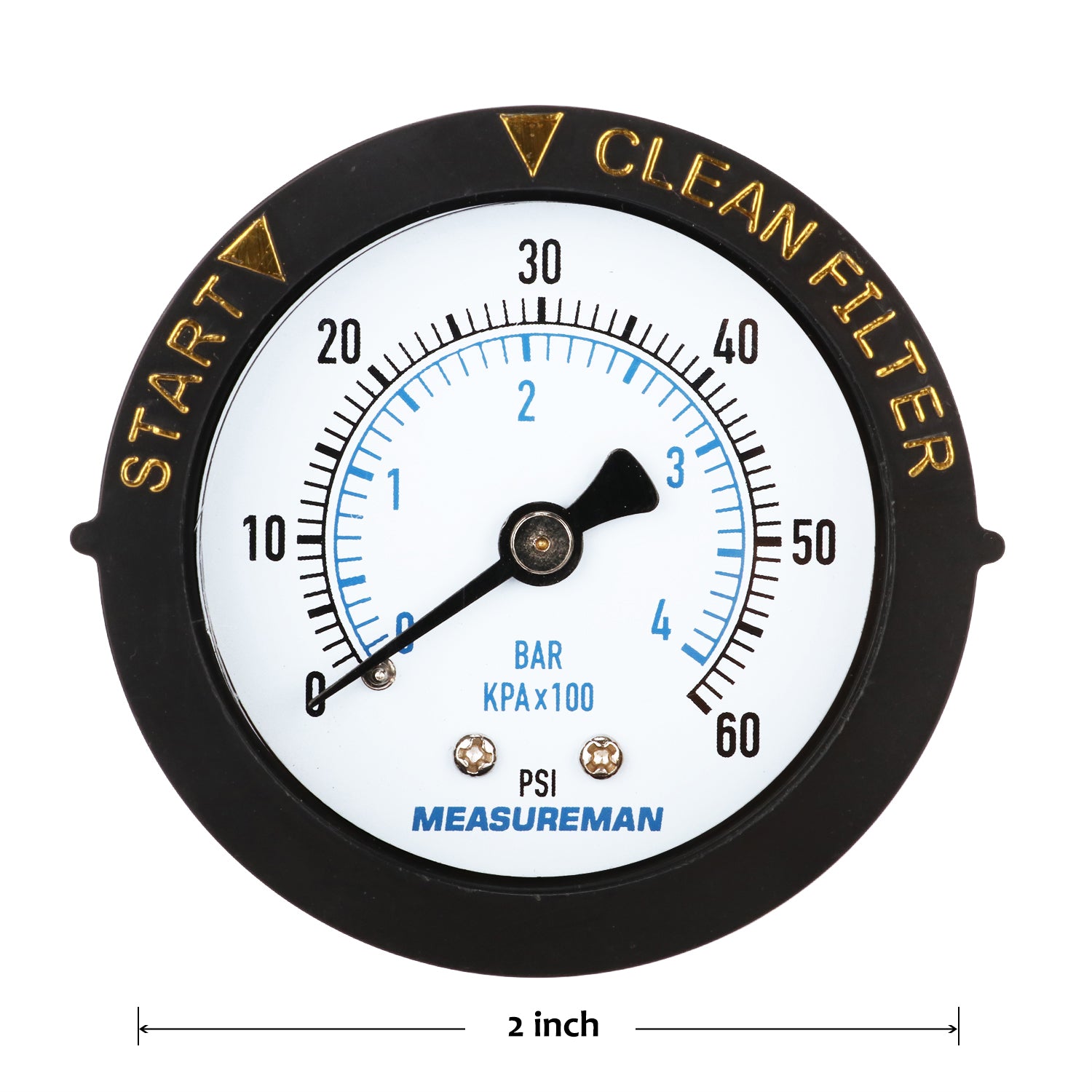

Dial size : 2"

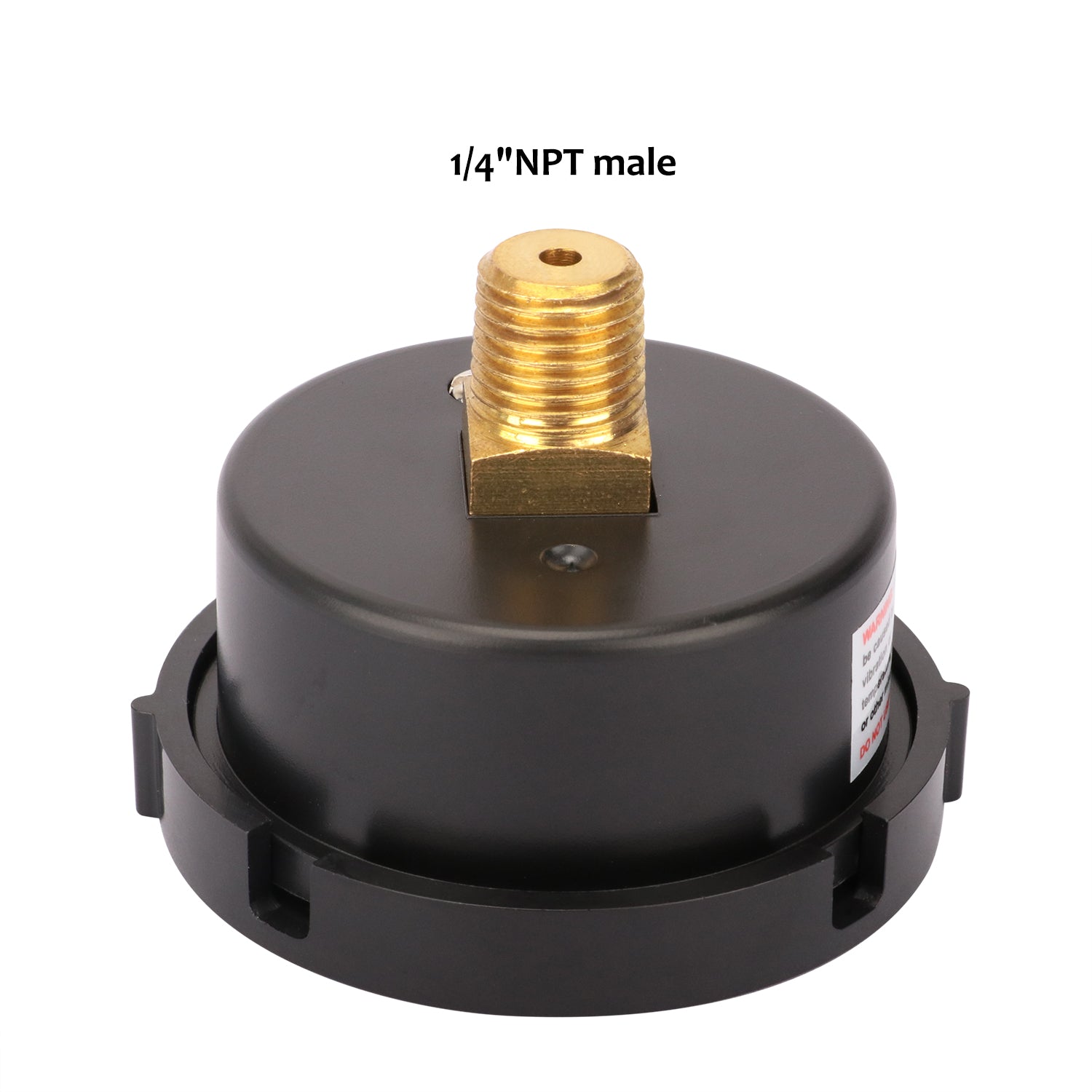

Process connection : 1/4"NPT center back mount male
Case : plastic case and bezel, start and clean filter
Window : Clear plastic
Dial plate : aluminum, with pointer stop
Pointer : Aluminum, black, DIN style
Bourdon tube : Copper alloy
Movement : Brass
Connection : Brass
IP class : IP43
Accuracy : +/-3-2-3%
Pressure range : 0-60psi/bar, 100 x kpa
Working temperature : -4 to 140 deg F/-20 to 60 deg C
Ambient temperature :140 deg F/60 deg C maximum

Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
