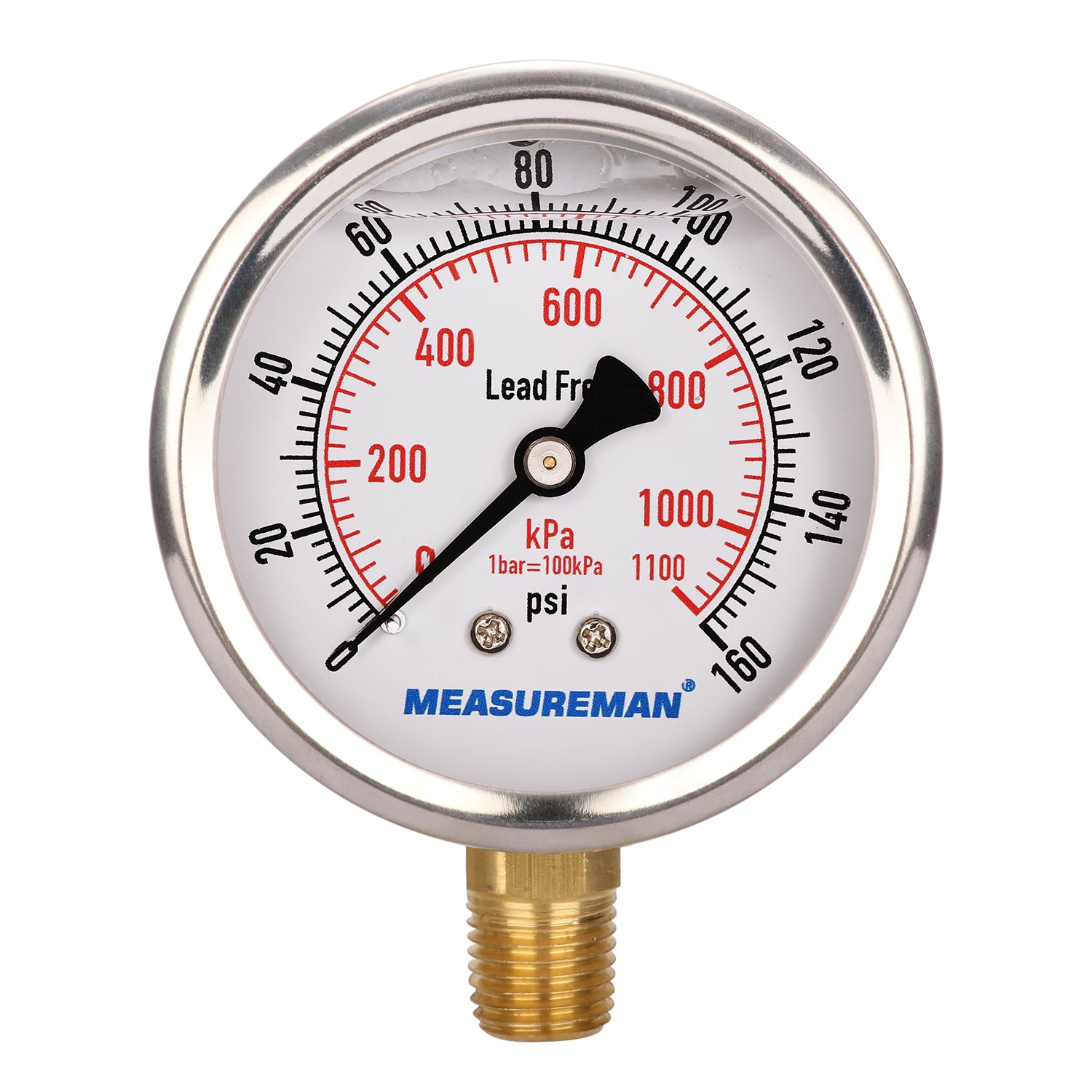

Meaureman Lead-Free Pressure Gauge, 2-1/2" Dial, Glycerin Filled, 0-160psi/kpa, Stainless Steel Case, 1/4"NPT Lower Mount
Meaureman Lead-Free Pressure Gauge, 2-1/2" Dial, Glycerin Filled, 0-160psi/kpa, Stainless Steel Case, 1/4"NPT Lower Mount
- For pressure measuring of gas, liquid which is not corrosive to brass, also where vibration and pulsation is a concern. It is suitable for drinking water system.
- 2-1/2" dial size, 1/4"NPT Lower mount
- Pressure range: 0-160psi/kpa double scale, big letters, easy to read
- Stainless steel case, brass wetted parts, glycerin filled
- Accuracy: +/-3-2-3%
Product description
Description
"This oil filled pressure gauge is designed for media which is not corrosive to brass, also where vibration and pulsation is a concern, typical use for drink water

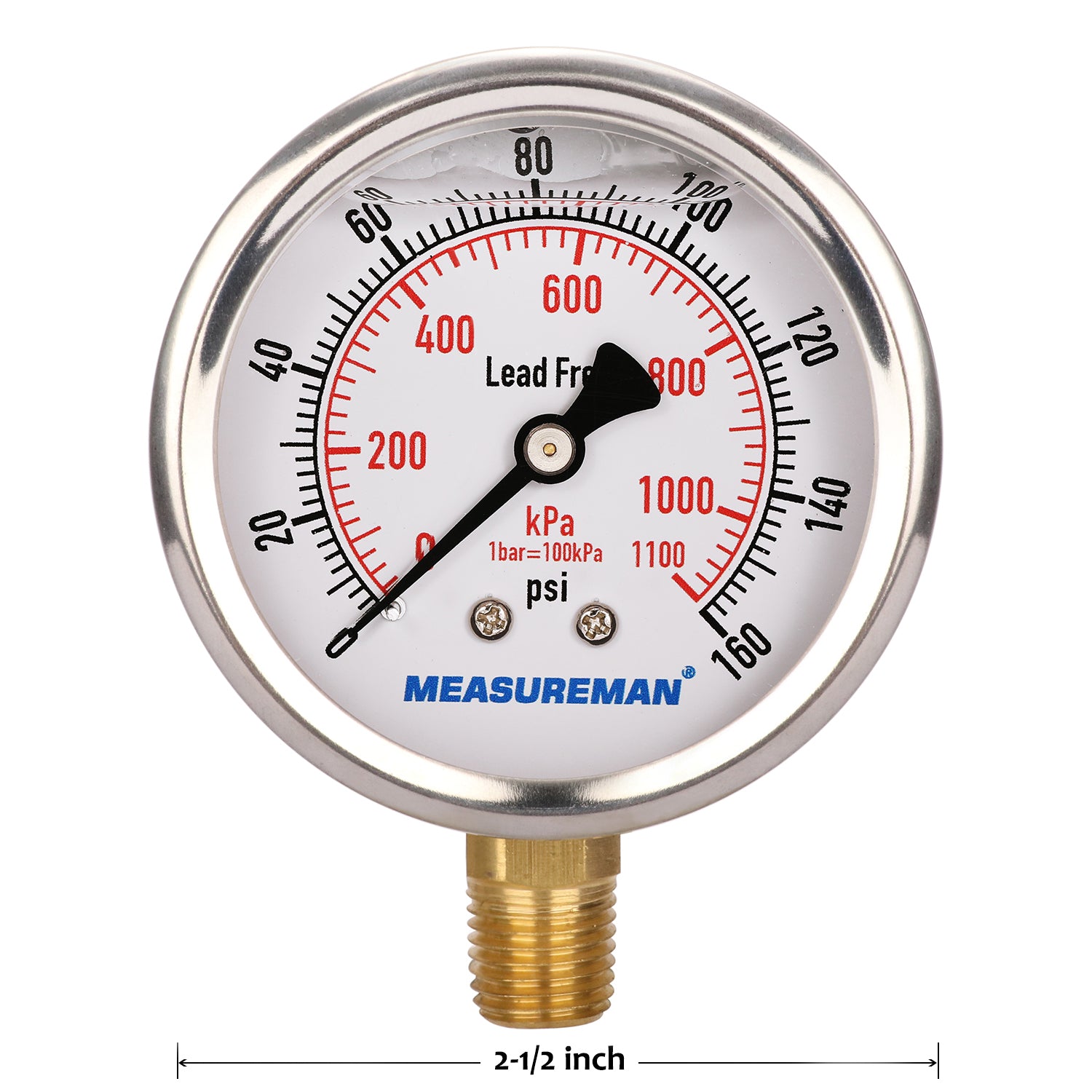

Dial size: 2-1/2""
Process connection: 1/4""NPT lower mount

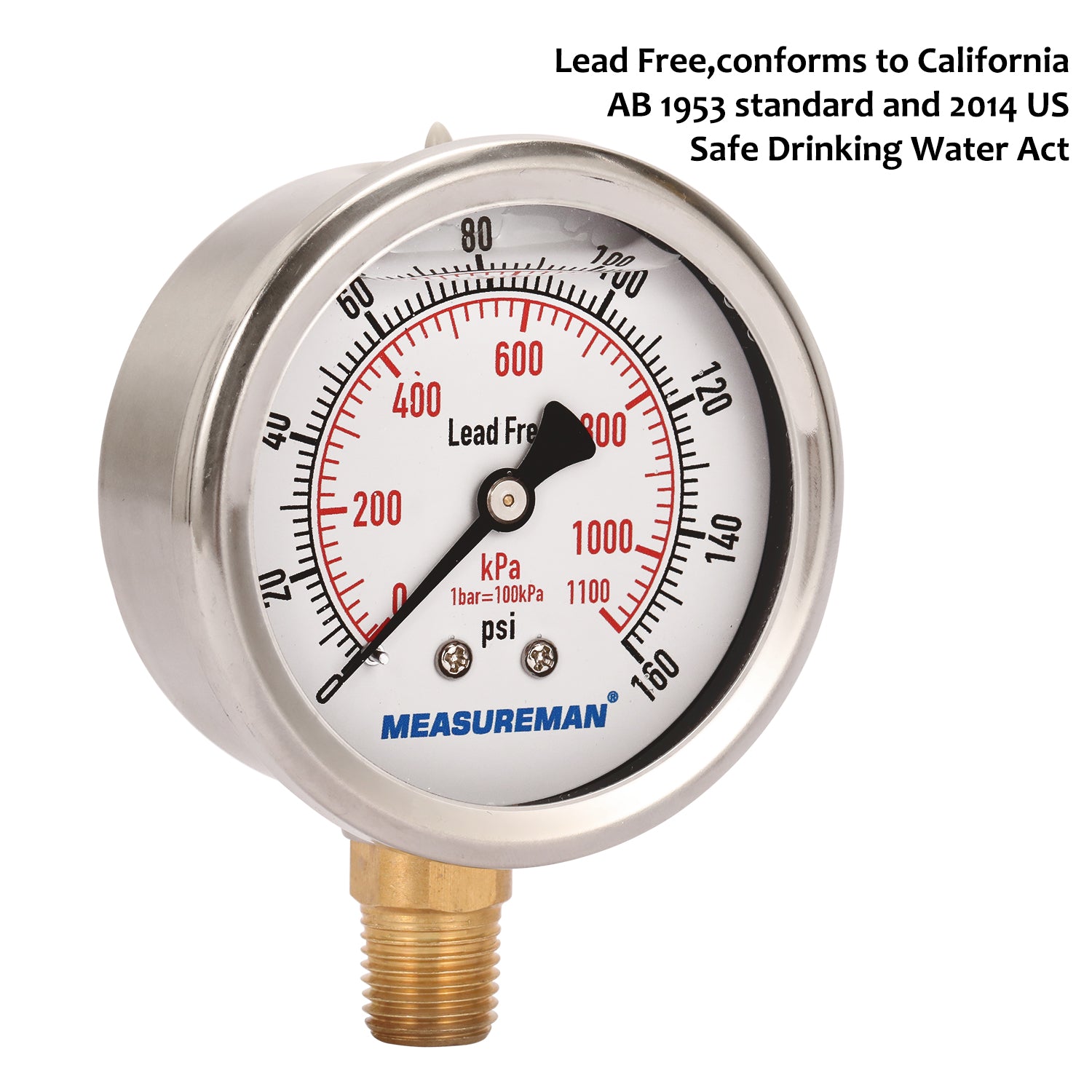

This gauge is made with Lead Free wetted parts according to California AB 1953 standard and 2014 US Safe Drinking Water Act. Lead Free brass connection, Lead Free bourdon tube, Lead Free solder.
Case: 304 stainless steel case and crimped ring
Window: Polycarbonate
Dial plate: aluminum, with pointer stop
Pointer: Aluminum, black, DIN style
Bourdon tube: Copper alloy
Movement: Brass

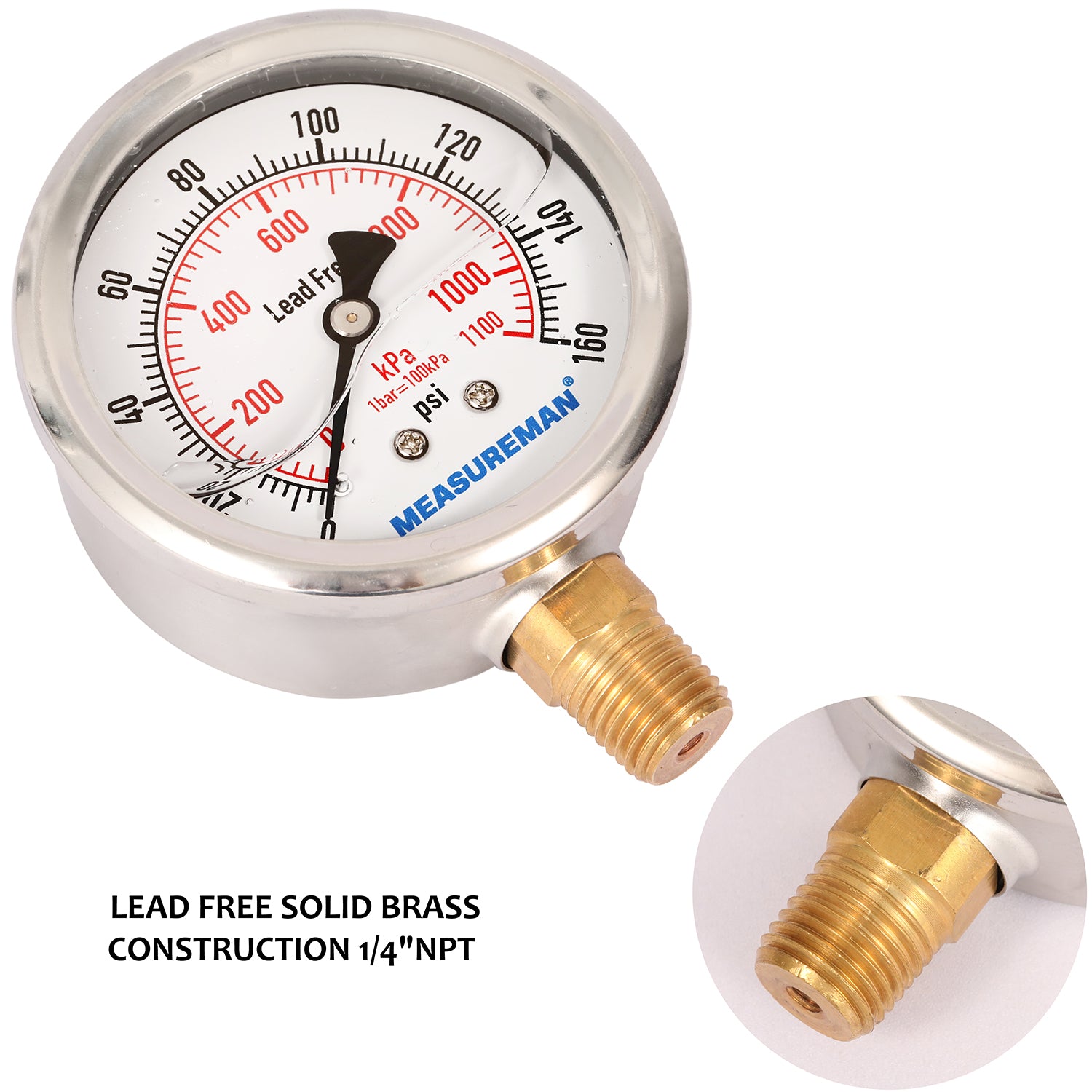

Connection: Brass, one piece design
Oil cap: rubber, gray color
Filling: Glycerin filled, dampens the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
IP class: IP67
Accuracy: +/-3-2-3%
Range: 0-160psi/kpa double scale
Working temperature:-4 to 140 deg F/-20 to 60 deg C
Ambient temperature:140 deg F/60 deg C maximum"
Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
