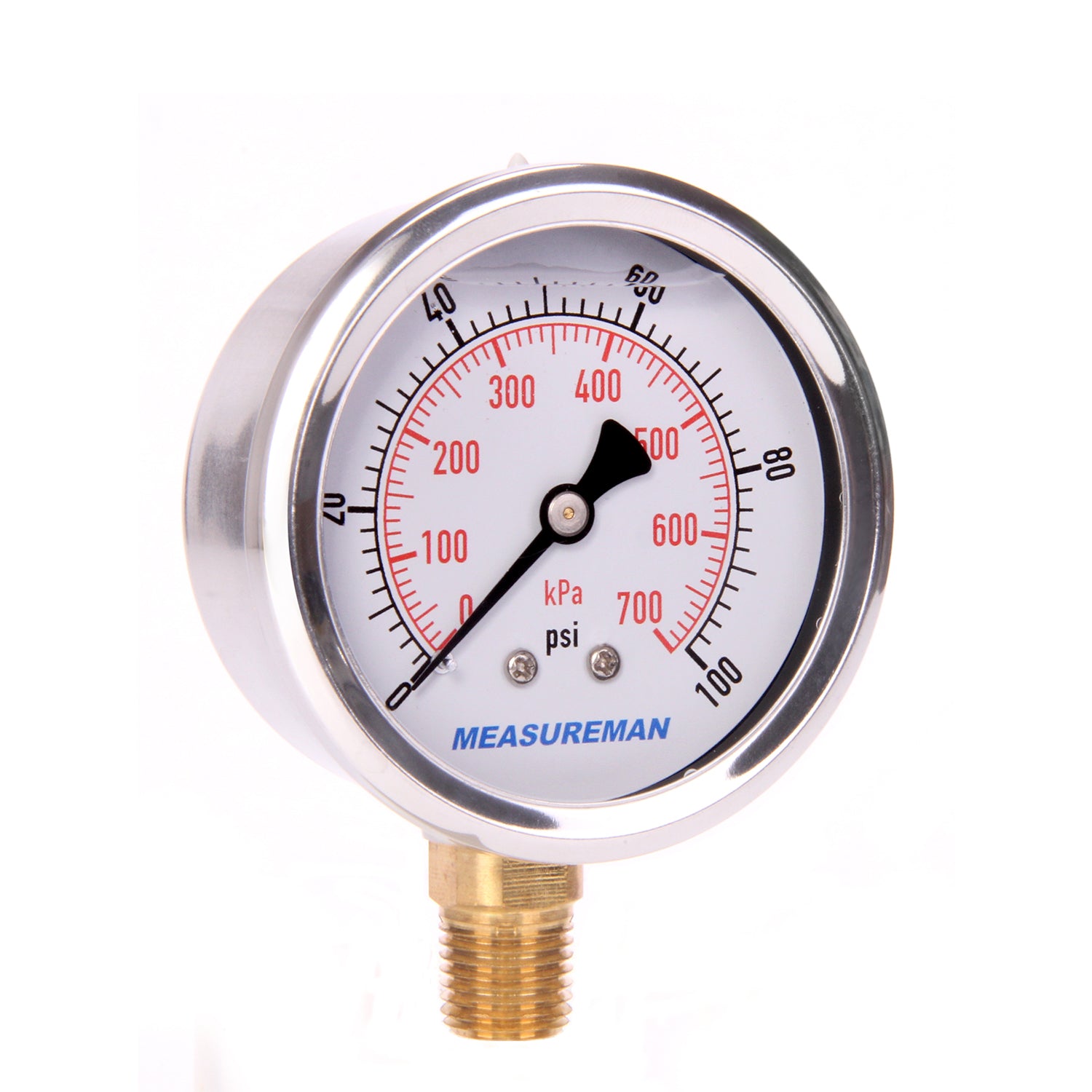

Measureman 2-1/2" Dial Size, Glycerin Filled Pressure Gauge, 0-100psi/kpa, 304 Stainless Steel Case, 1/4"NPT Lower Mount
- For pressure measuring of gas, liquid which is not corrosive to brass, also where vibration and pulsation is a concern. It is suitable for drinking water system.

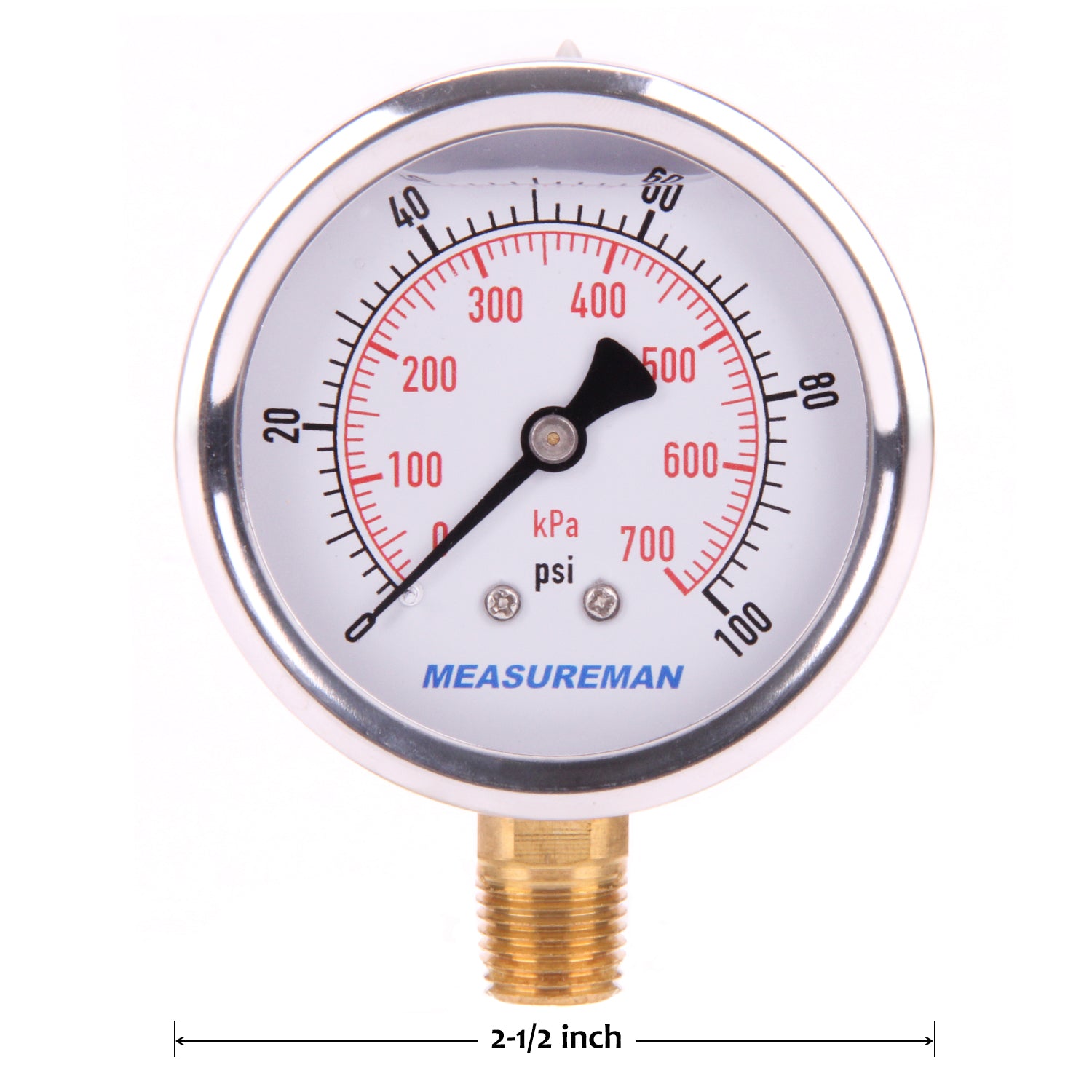

- 2-1/2" dial size, 1/4"NPT Lower mount
- Pressure range: 0-100psi/kpa double scale, big letters, easy to read
- Stainless steel case, brass wetted parts, glycerin filled
- Accuracy: +/-3-2-3%
Product Description
Meaureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable cost. "Measureman" products are selected and designed by professional engineers.
Liquid filled pressure gauge
This liquid filled pressure gauge is designed for media which is not corrosive to brass, also where vibration and pulsation is a concern.
- Pressure range: 0-100psi/kpa dual scale
- For pressure measuring of gas, liquid which is not corrosive to brass, also where vibration and pulsation is a concern.
- 2-1/2" dial size, 1/4"NPT lower mount
- Stainless steel case, brass wetted parts, glycerin filled
- Accuracy: +/-3-2-3%
|
|
|
|
|---|---|---|
|
Process connection : 1/4"NPT lower mount Window : Polycarbonate Dial plate : aluminum, with pointer stop Pointer : Aluminum, black, DIN style Boudon tube : Copper alloy |
Case : 304 stainless steel case and crimped ring Boudon tube : Copper alloy Movement : Brass Connection : Brass, one piece design |
Come with a heavy duty blow molded storage case, easy to carry |
