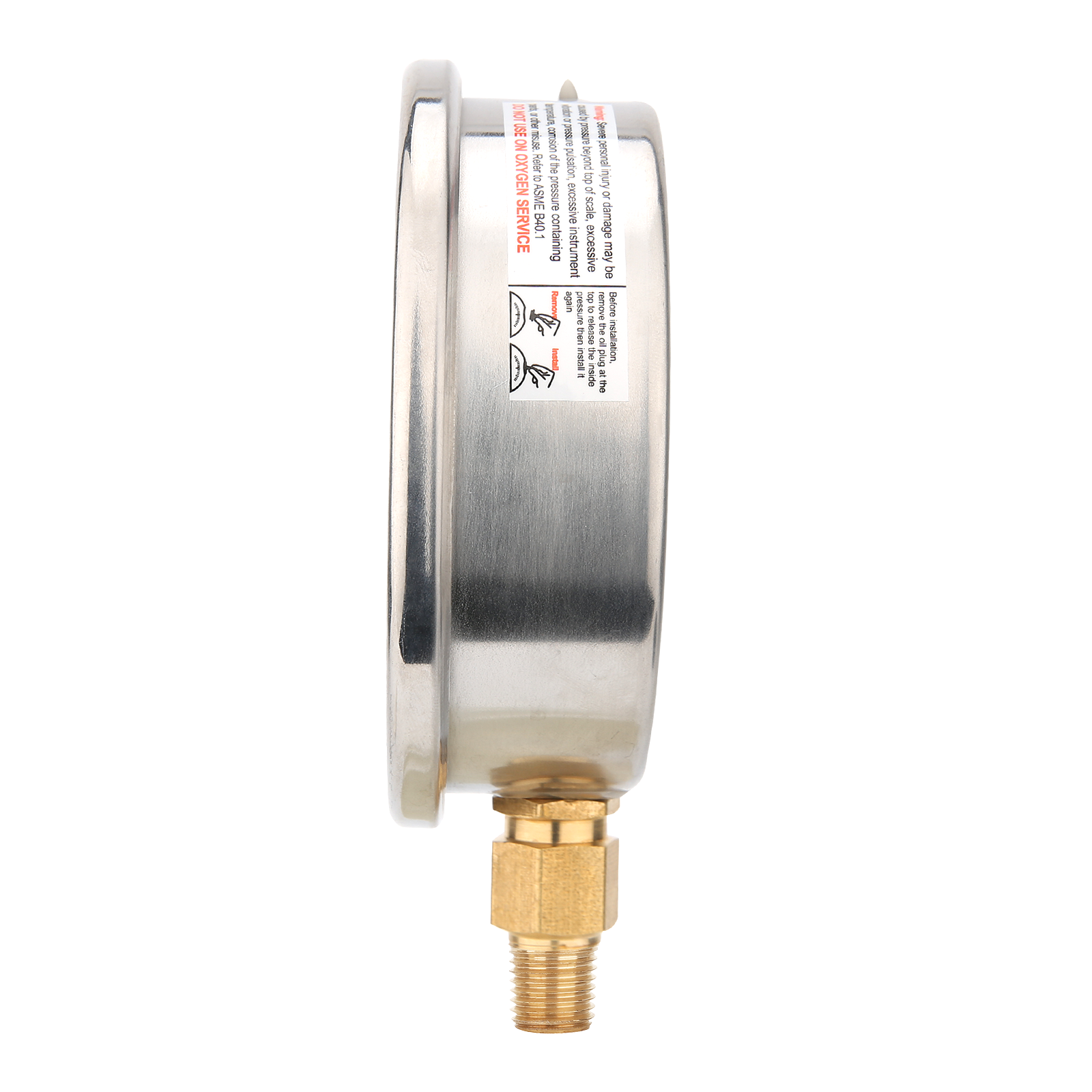

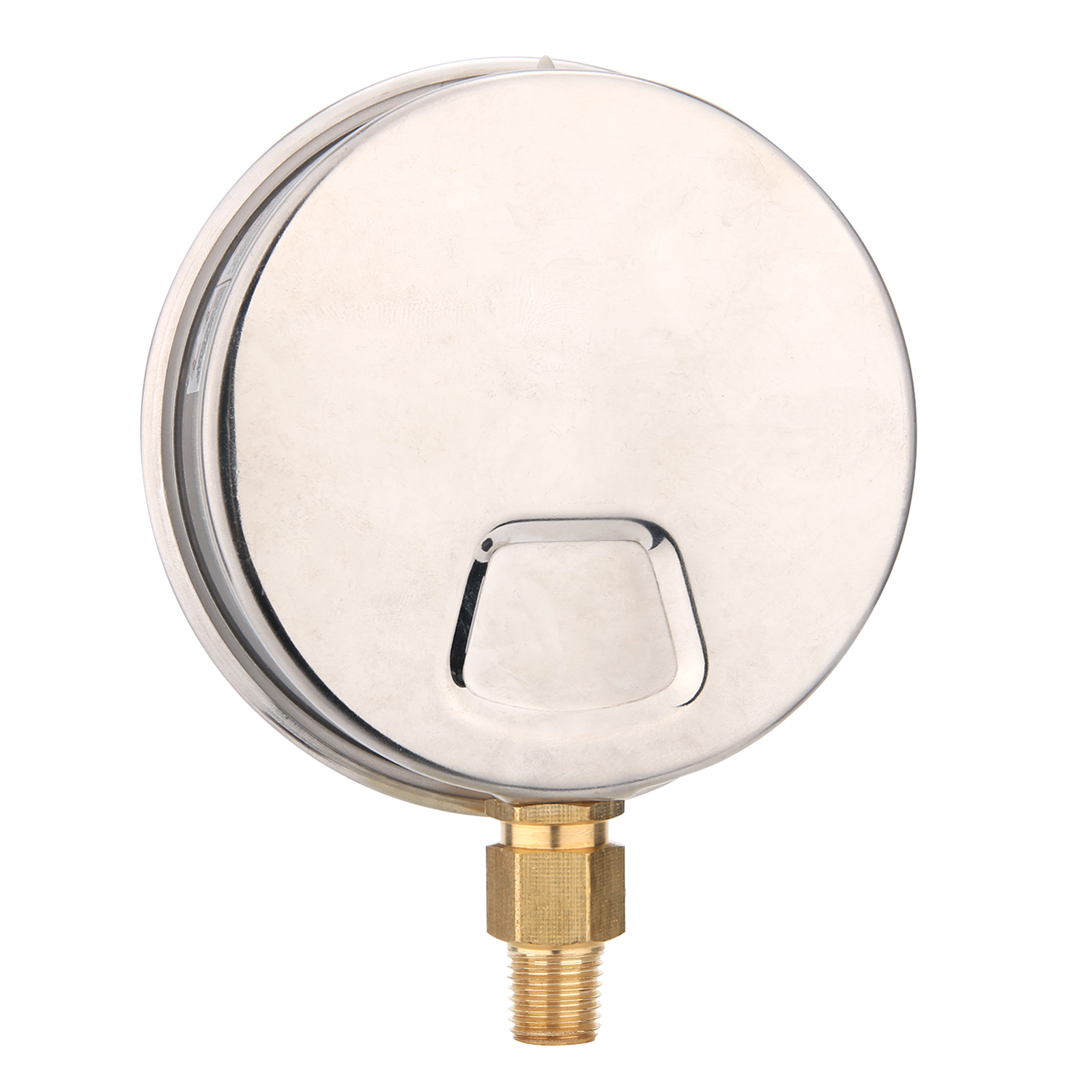

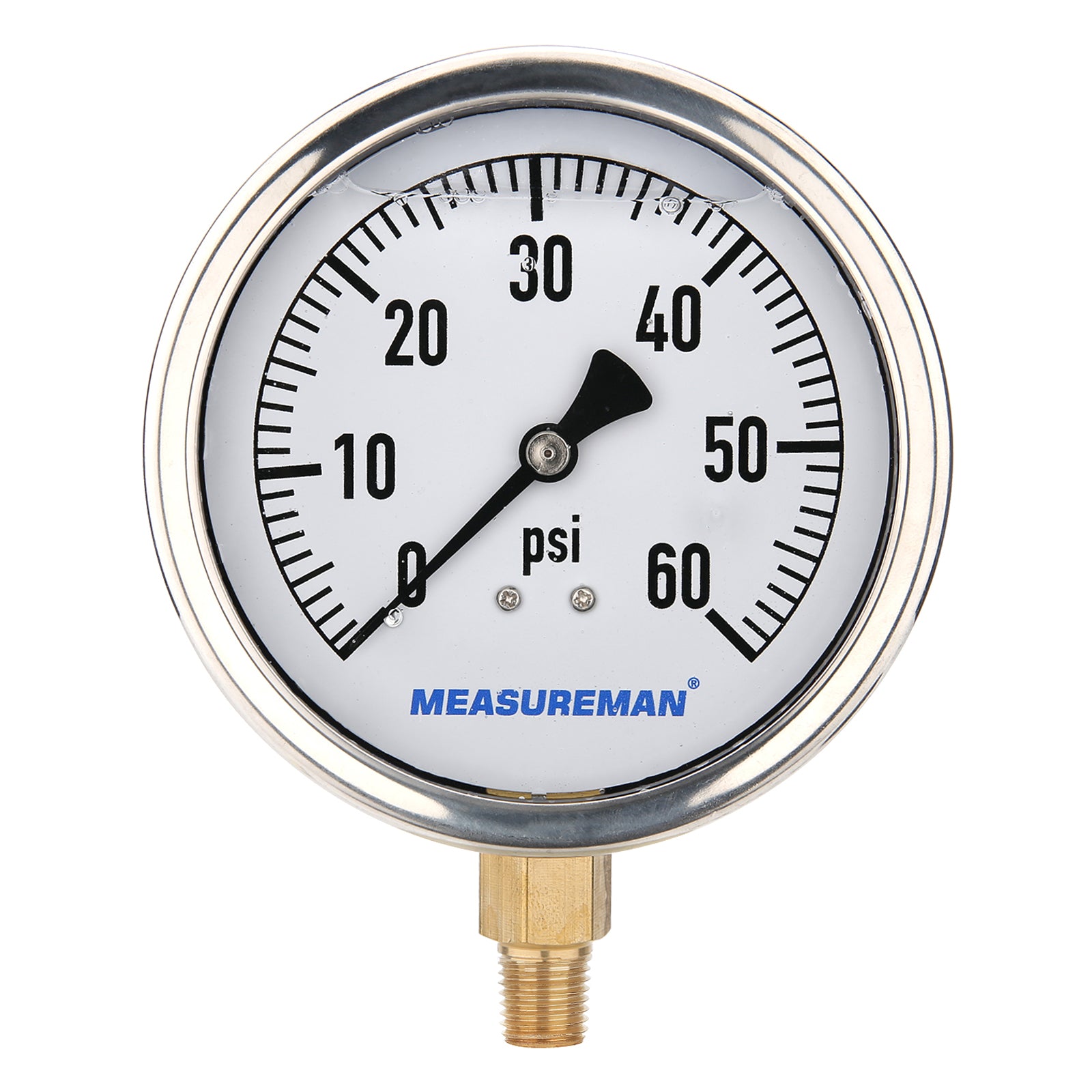

Meaureman 4" Dial Size, Glycerin Filled Plumbing Pressure Gauge, 0-60psi, Stainless Steel Case, 1/4"NPT Lower Mount
Meaureman 4" Dial Size, Glycerin Filled Plumbing Pressure Gauge, 0-60psi, Stainless Steel Case, 1/4"NPT Lower Mount
- For pressure measuring of gas, liquid which is not corrosive to brass, also where vibration and pulsation is a concern.
- 4" dial size, 1/4"NPT Lower mount
- Pressure range: 0-60psi single scale, big letters, easy to read
- Stainless steel case, brass wetted parts, glycerin filled
- Accuracy: +/-2-1-2%
Product description
Description
"This liquid filled pressure gauge is designed for media which is not corrosive to brass, also where vibration and pulsation is a concern, typical use for plumbing,
gardening, agriculature etc

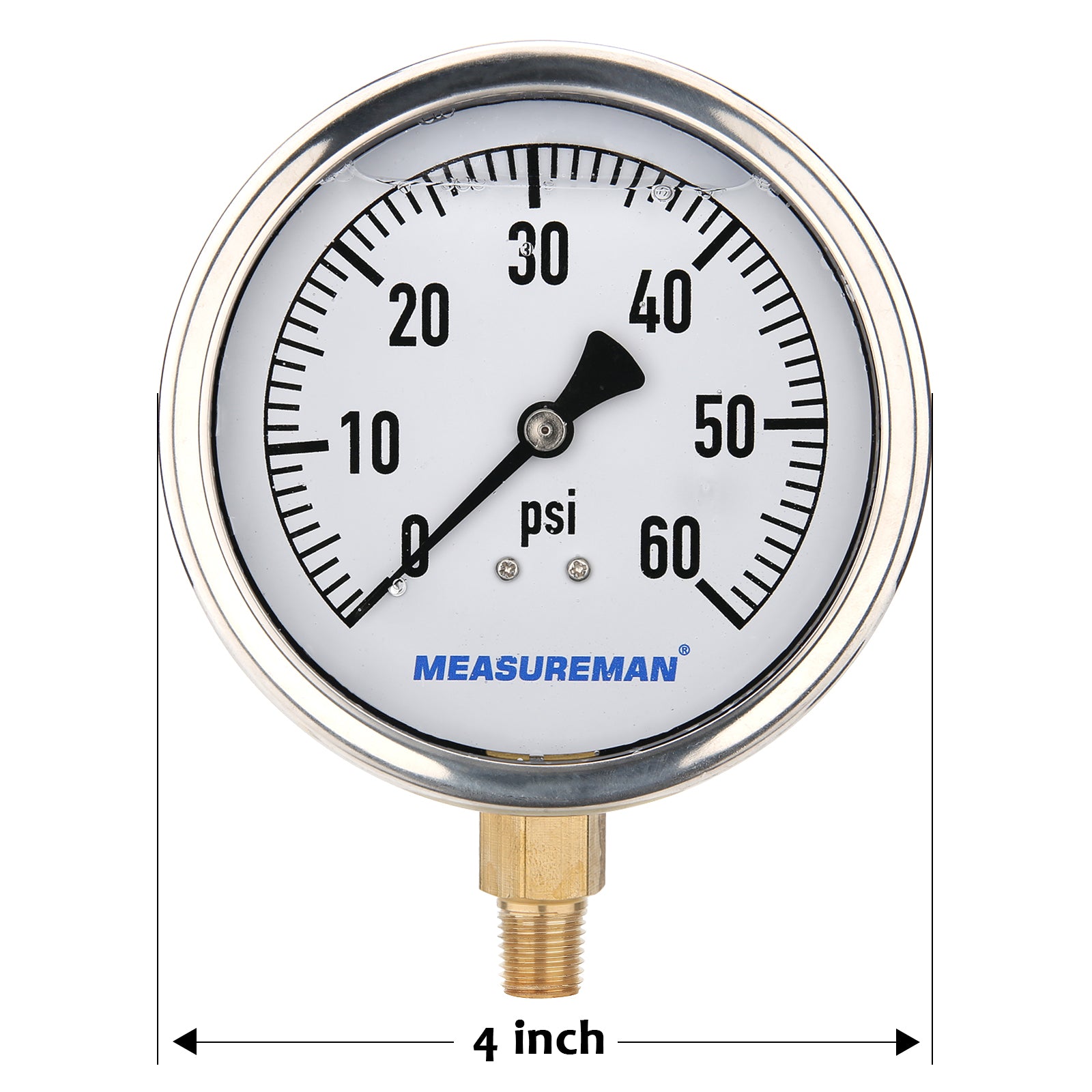

Dial size: 4"
Process connection: 1/4"NPT lower mount
Case: 304 stainless steel case and crimped ring
Window: Polycarbonate
Dial plate: aluminum, with pointer stop
Pointer: Aluminum, black, DIN style
Bourdon tube: Copper alloy
Movement: Brass

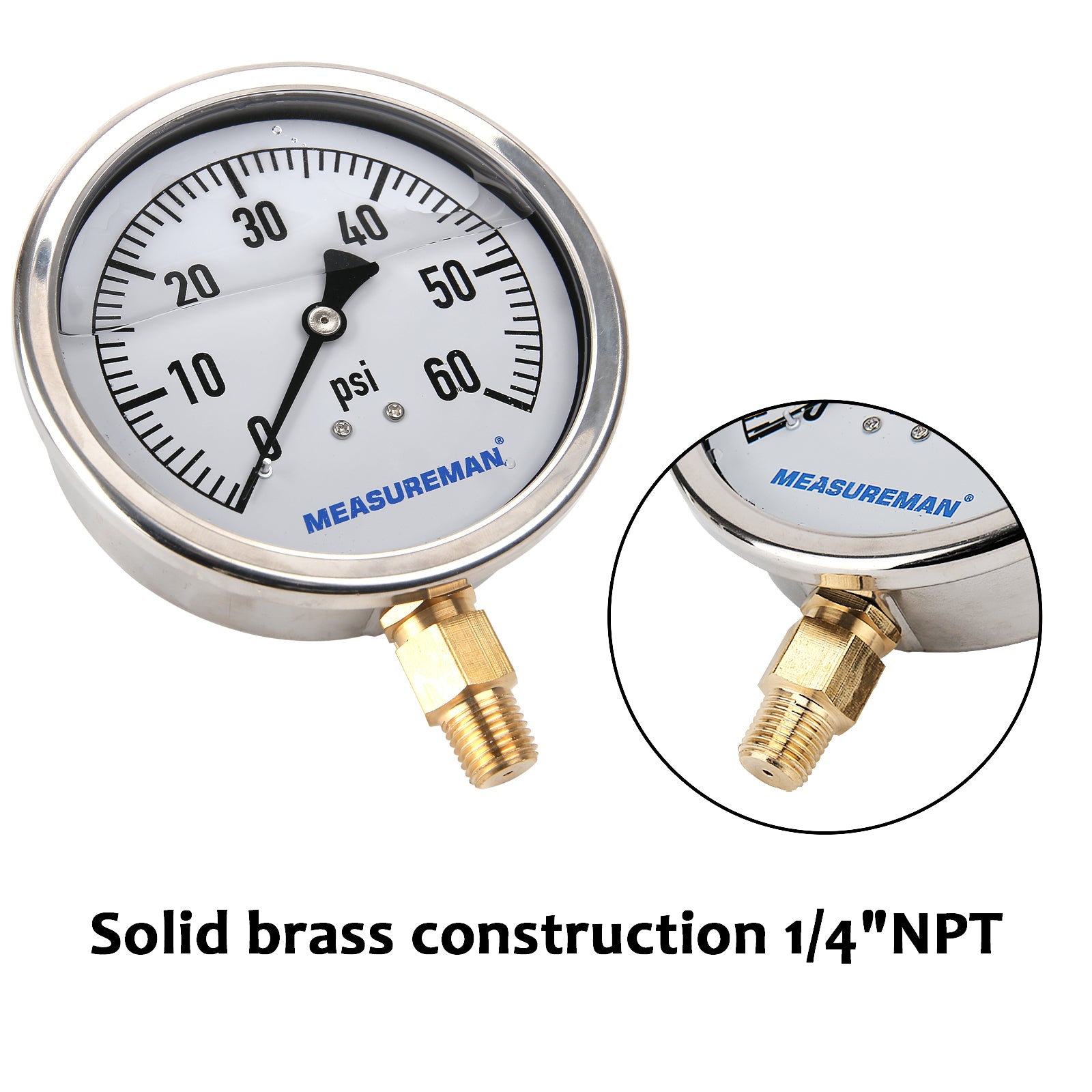

Connection: Brass, two piece design
Oil cap: rubber, gray color
Filling: Glycerin filled, dampens the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
IP class: IP67
Accuracy: +/-2-1-3%
Range: 0-60psi single scale
Working temperature:-4 to 140 deg F/-20 to 60 deg C
Ambient temperature:140 deg F/60 deg C maximum"
