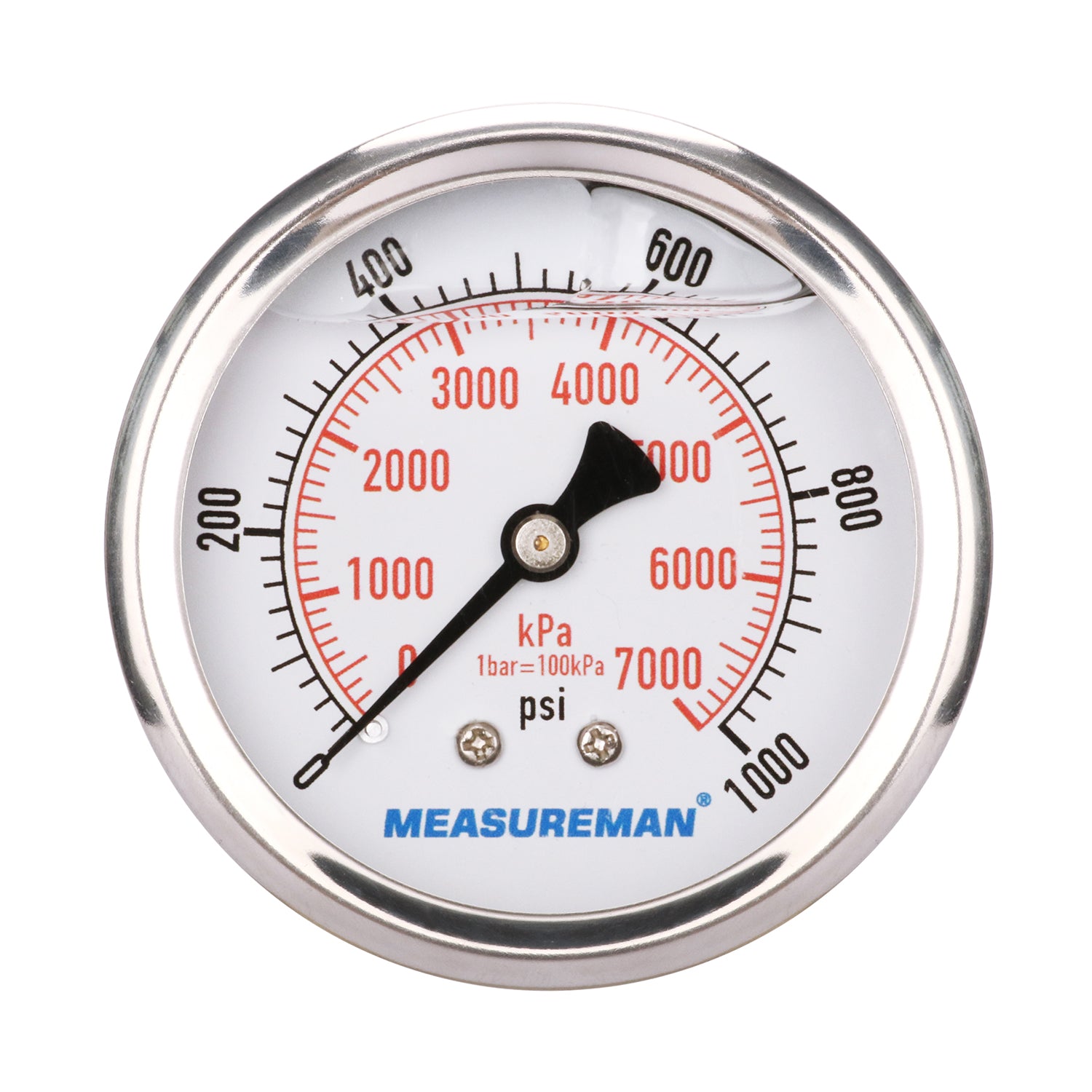

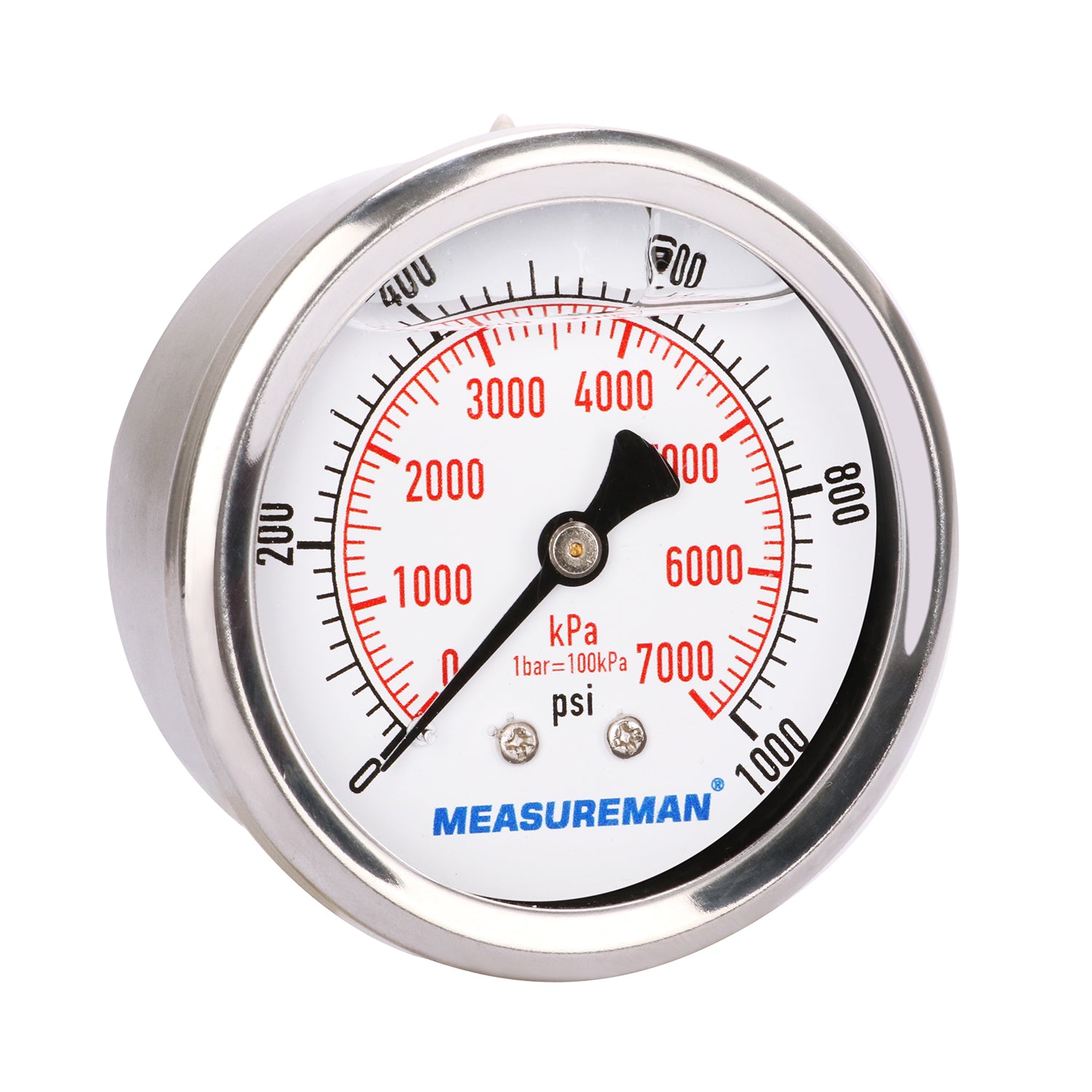

MEASUREMAN 2-1/2" Dial Size, Glycerin Filled Pressure Gauge, 0-1000psi/kpa, 304 Stainless Steel Case, 1/4"NPT Center Back Mount

$9.97
Unit price per
Save $9

Tax included. Shipping calculated at checkout.

For pressure measuring of gas, liquid which is not corrosive to brass, also where vibration and pulsation is a concern.
2-1/2" dial size, 1/4"NPT center back mount
Pressure range: 0-1000psi/kpa dual scale
Stainless steel case, brass wetted parts, glycerin filled
Accuracy: +/-3-2-3%

This liquid filled pressure gauge is designed for media which is not corrosive to brass, also where vibration and pulsation is a concern.

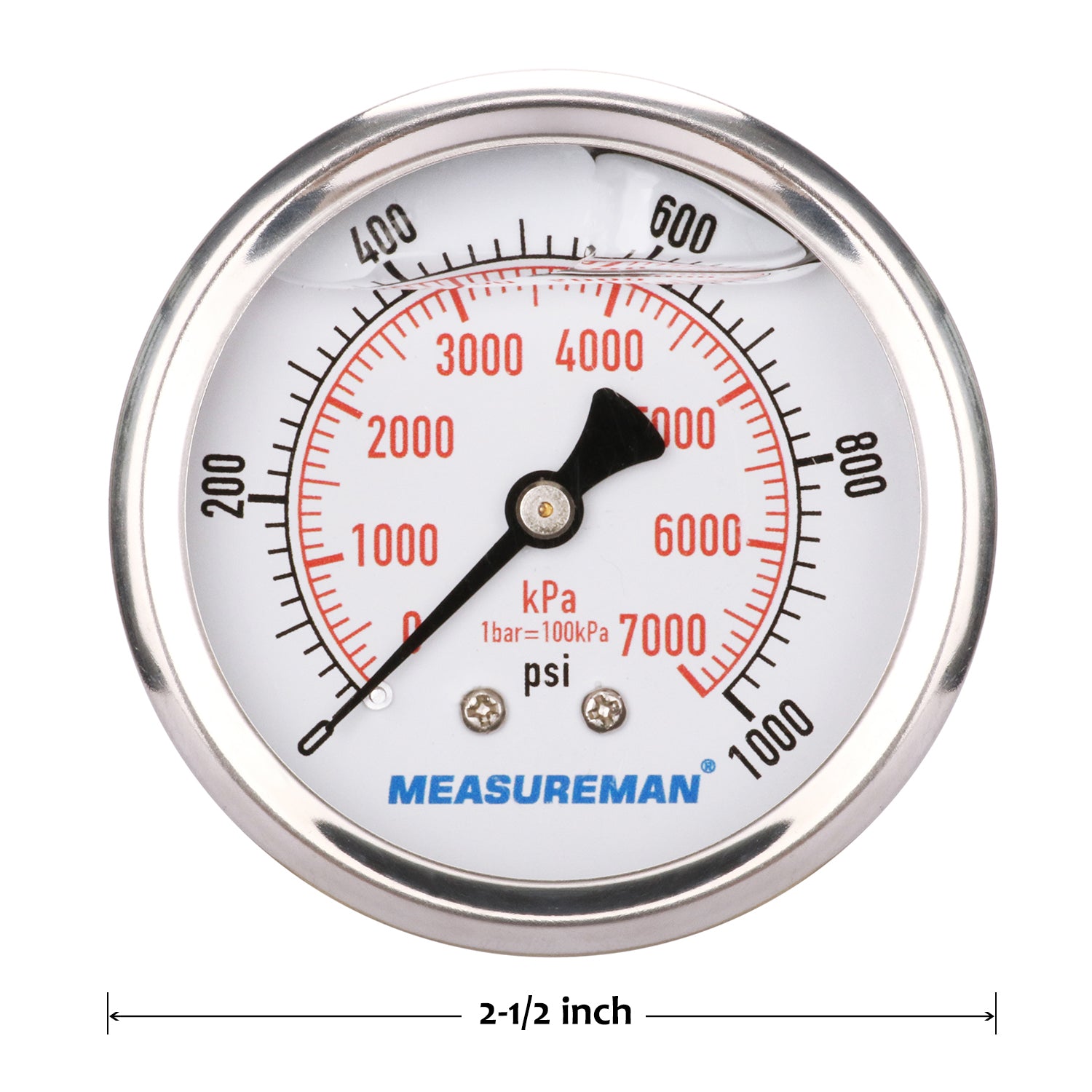

Dial size: 2-1/2"

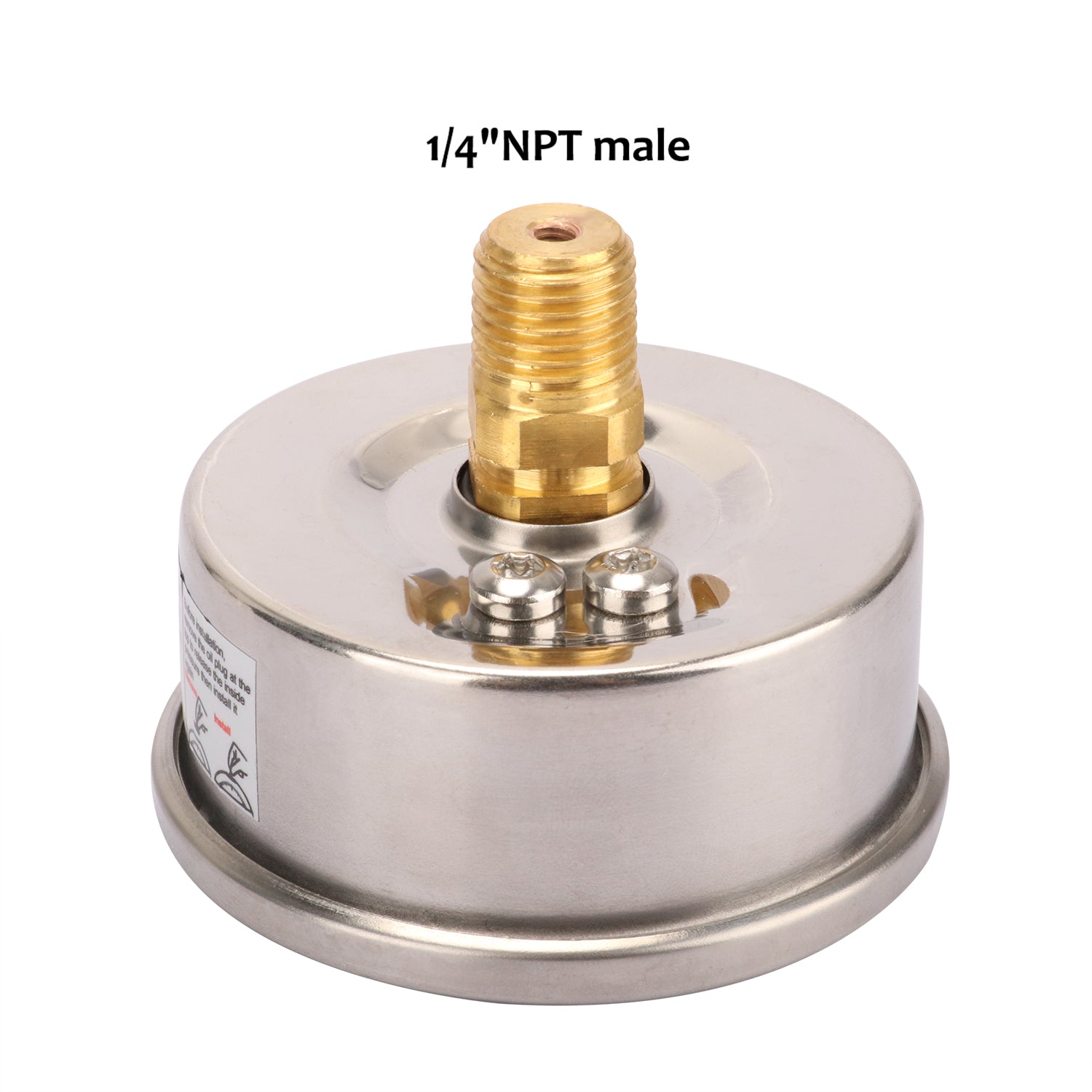

Process connection: 1/4"NPT center back mount
Case: 304 stainless steel case and crimped ring
Window: Polycarbonate
Dial plate: aluminum, with pointer stop
Pointer: Aluminum, black, DIN style
Boudon tube: Copper alloy
Movement: Brass
Connection: Brass, one piece design
Oil cap: rubber, gray color
Filling: Glycerin filled, dampens the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
IP class: IP67
Accuracy: +/-3-2-3%

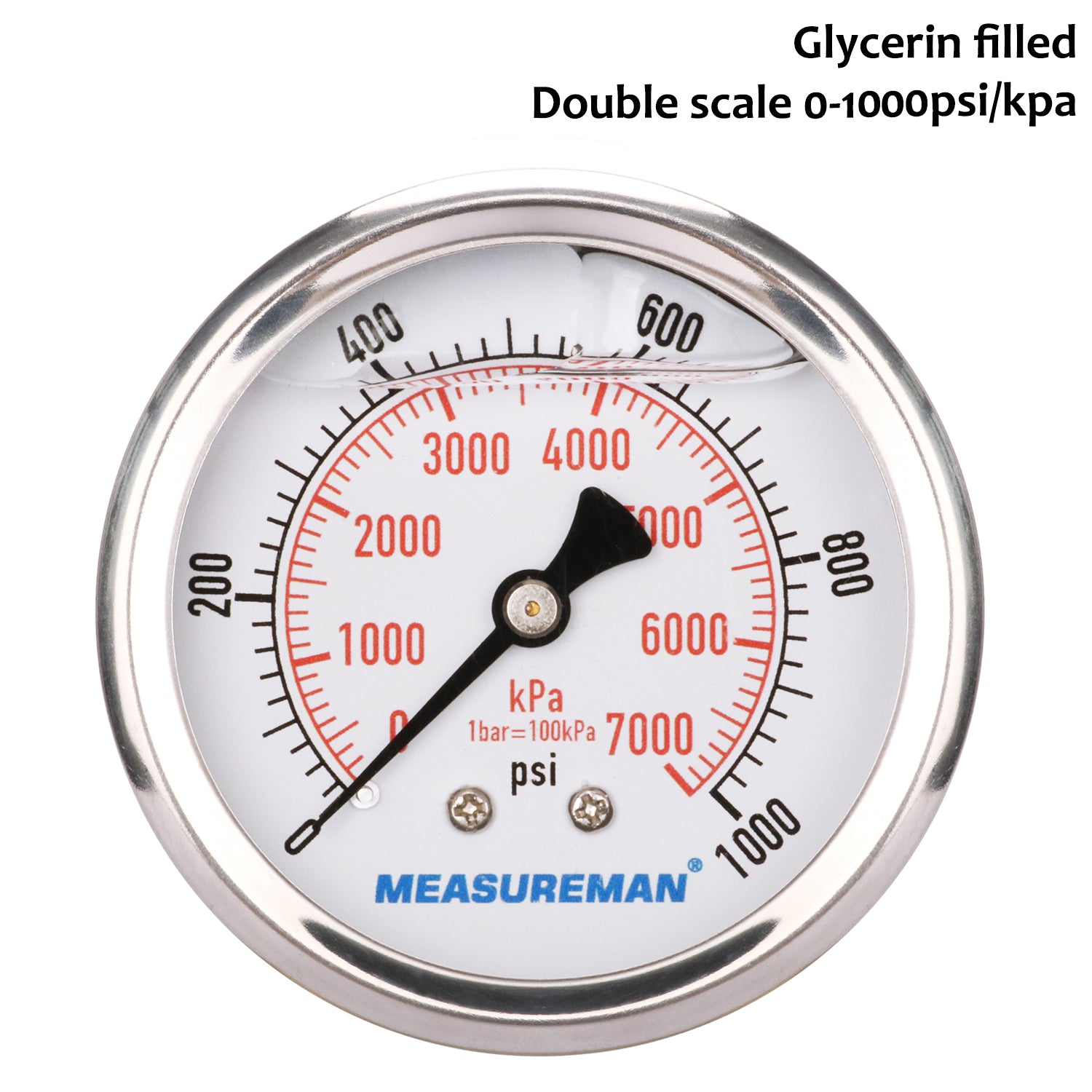

Range: 0-1000psi/kpa dual scale, psi outside, kpa inside
Working temperature:-4 to 140 deg F/-20 to 60 deg C
Ambient temperature:140 deg F/60 deg C maximum
