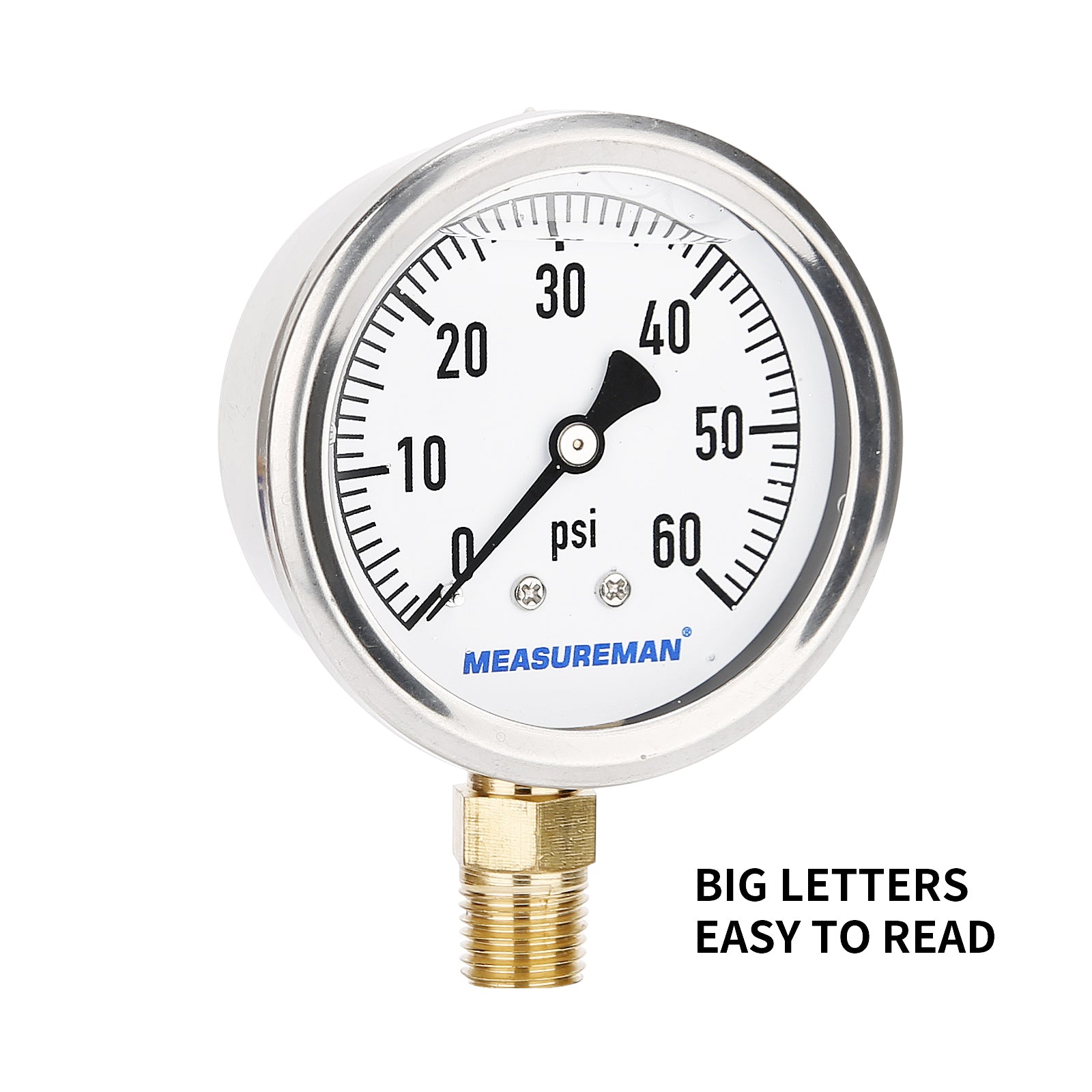

Measureman 2-1/2" Dial Size, Glycerin Filled Plumbing Pressure Gauge, 0-60psi, Stainless Steel Case, 1/4"NPT Lower Mount
Measureman 2-1/2" Dial Size, Glycerin Filled Plumbing Pressure Gauge, 0-60psi, Stainless Steel Case, 1/4"NPT Lower Mount
- For pressure measuFor pressure measuring of gas, liquid which is not corrosive to brass, also where vibration and pulsation is a concern. ring of gas, liquid which is not corrosive to brass, also where vibration and pulsation is a concern
- 2-1/2" dial size, 1/4"NPT Lower mount
- Pressure range: 0-60psi single scale, big letters, easy to read
- Stainless steel case, brass wetted parts, glycerin filled
- Accuracy: +/-3-2-3%
Product description
Description
This oil filled pressure gauge is designed for media which is not corrosive to brass, also where vibration and pulsation is a concern, typical use for plumbing, gardening, agriculature etc
Dial size: 2-1/2"
Process connection: 1/4"NPT lower mount

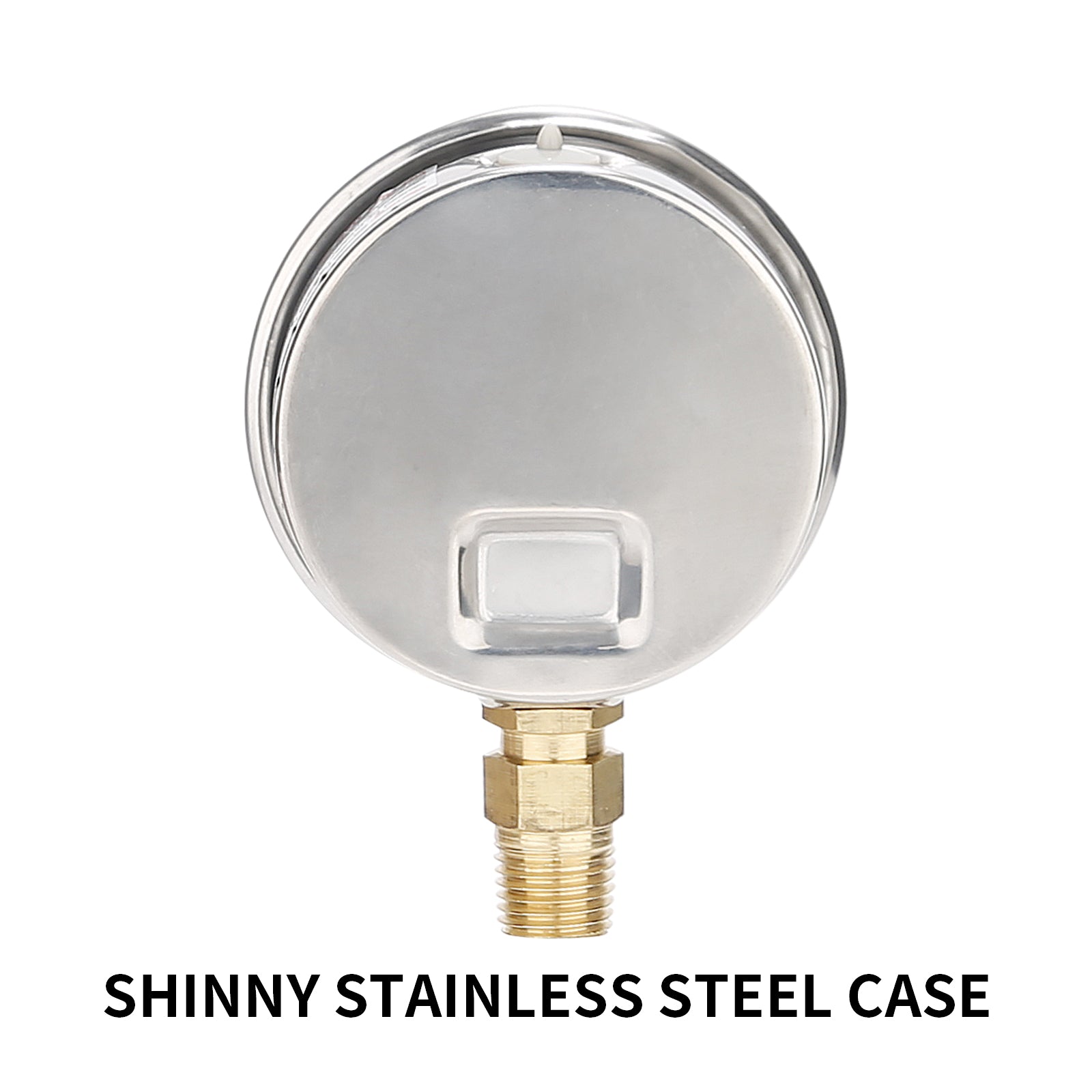

Case: 304 stainless steel case and crimped ring
Window: Polycarbonate
Dial plate: aluminum, with pointer stop
Pointer: Aluminum, black, DIN style
Boudon tube: Copper alloy
Movement: Brass
Connection: Brass, two piece design
Oil cap: rubber, gray color

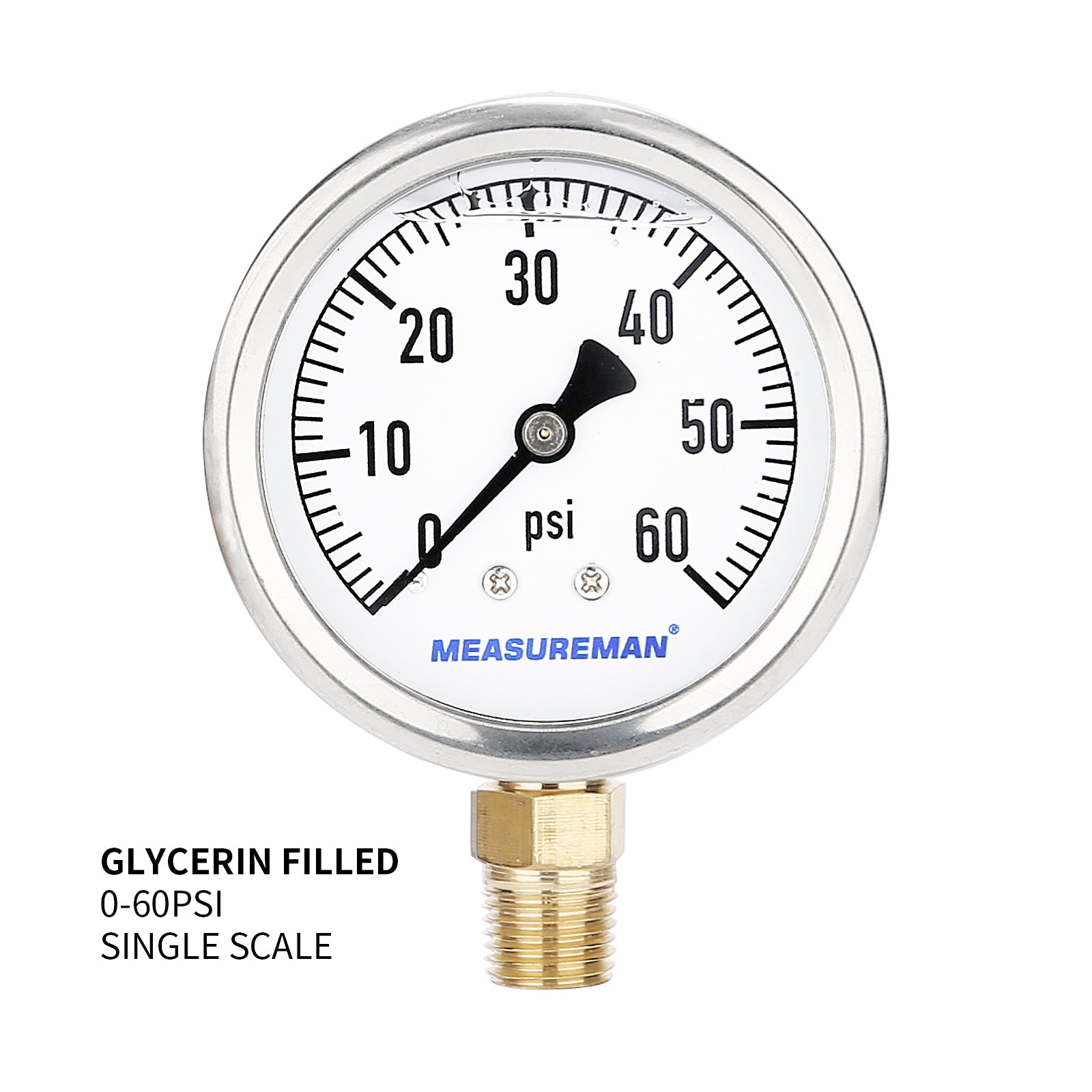

Filling: Glycerin filled, dampens the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
IP class: IP67
Accuracy: +/-3-2-3%
Range: 0-60psi single scale
Working temperature:-4 to 140 deg F/-20 to 60 deg C
Ambient temperature:140 deg F/60 deg C maximum
Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
