Size:0-3000 psi/kpa | Style:Lower Mount
Description

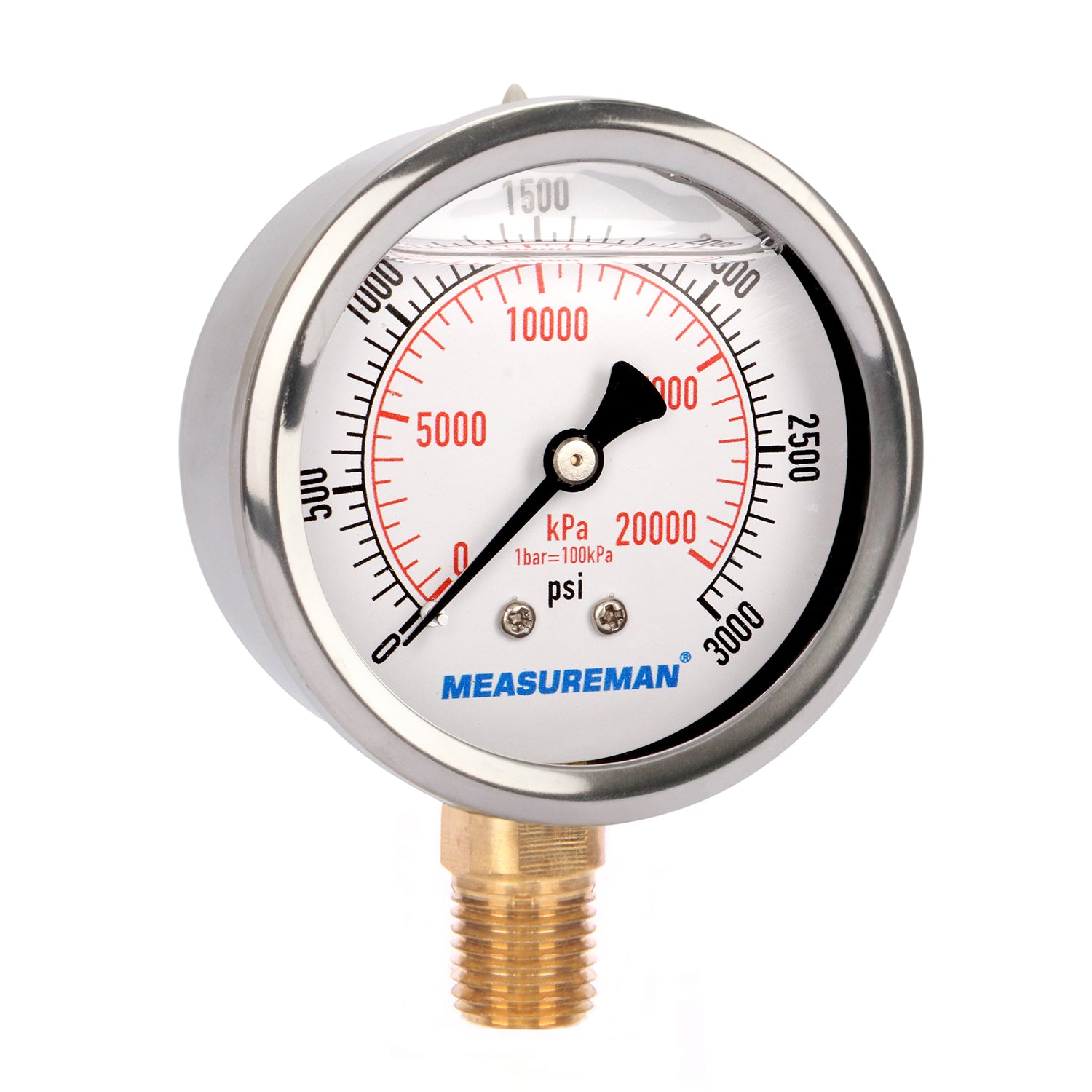

This liquid filled pressure gauge is designed for media which is not corrosive to brass, also where vibration and pulsation is a concern.

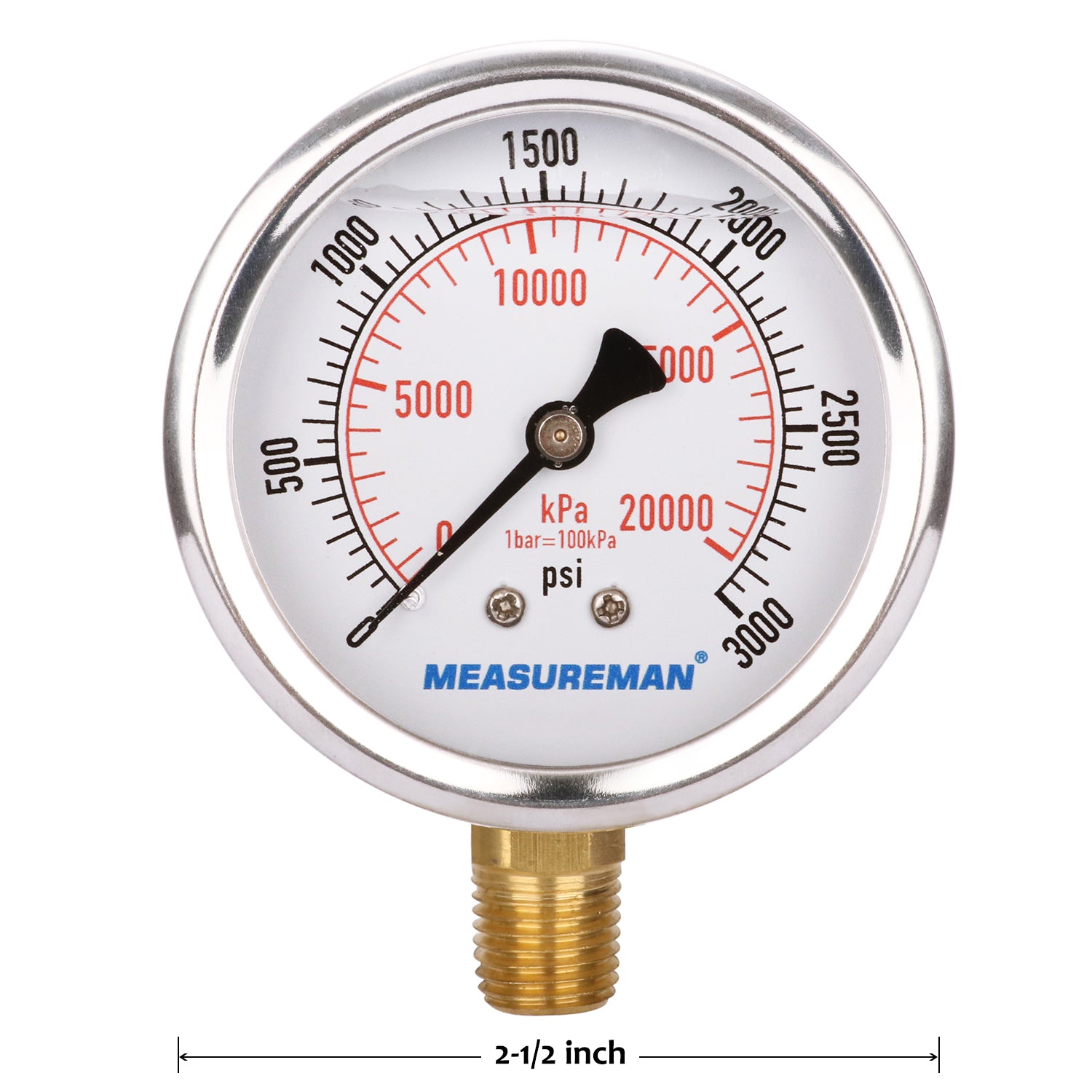

Dial size: 2-1/2"

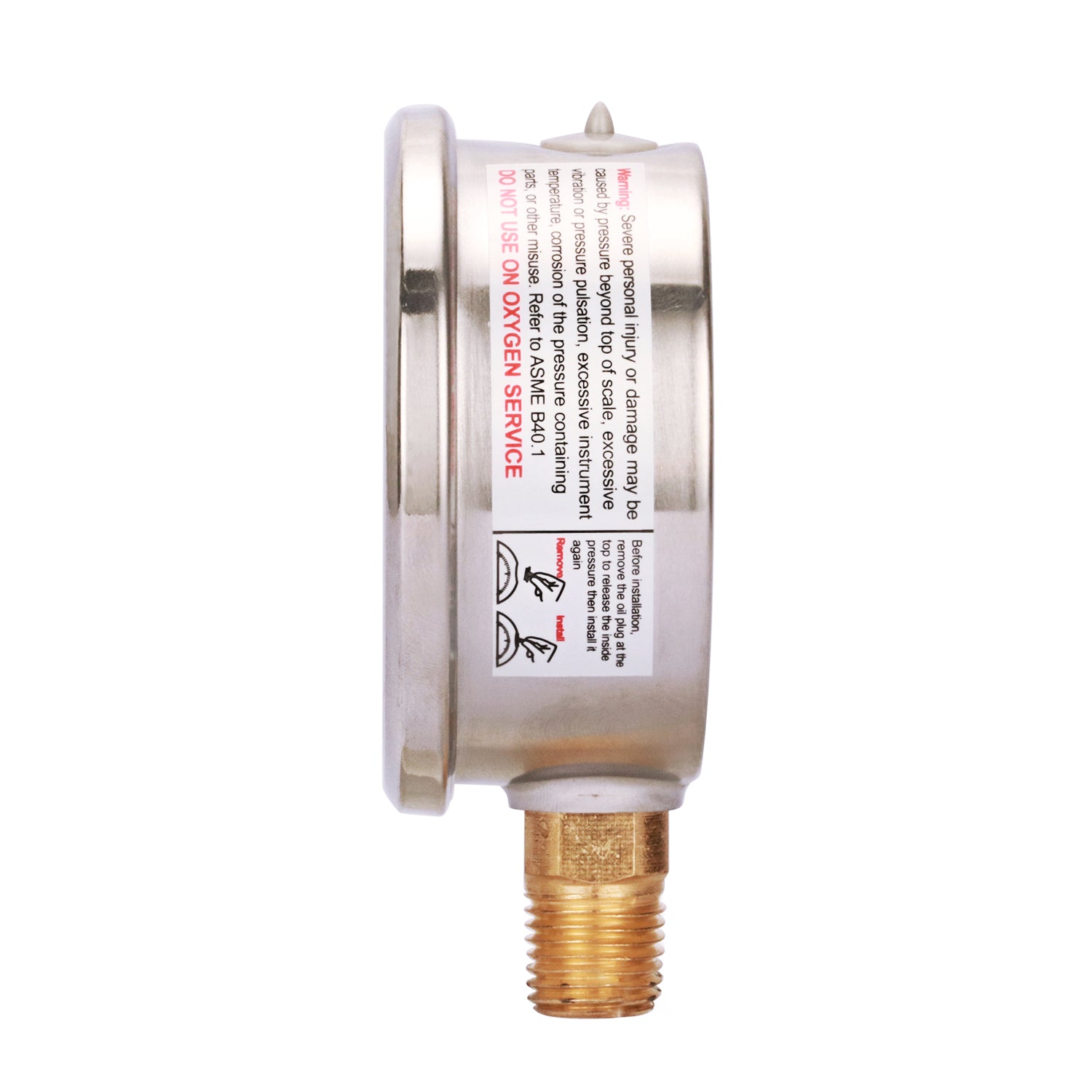

Process connection: 1/4"NPT lower mount
Case: 304 stainless steel case and crimped ring
Window: Polycarbonate
Dial plate: aluminum, with pointer stop
Pointer: Aluminum, black, DIN style
Bourdon tube: Copper alloy
Movement: Brass

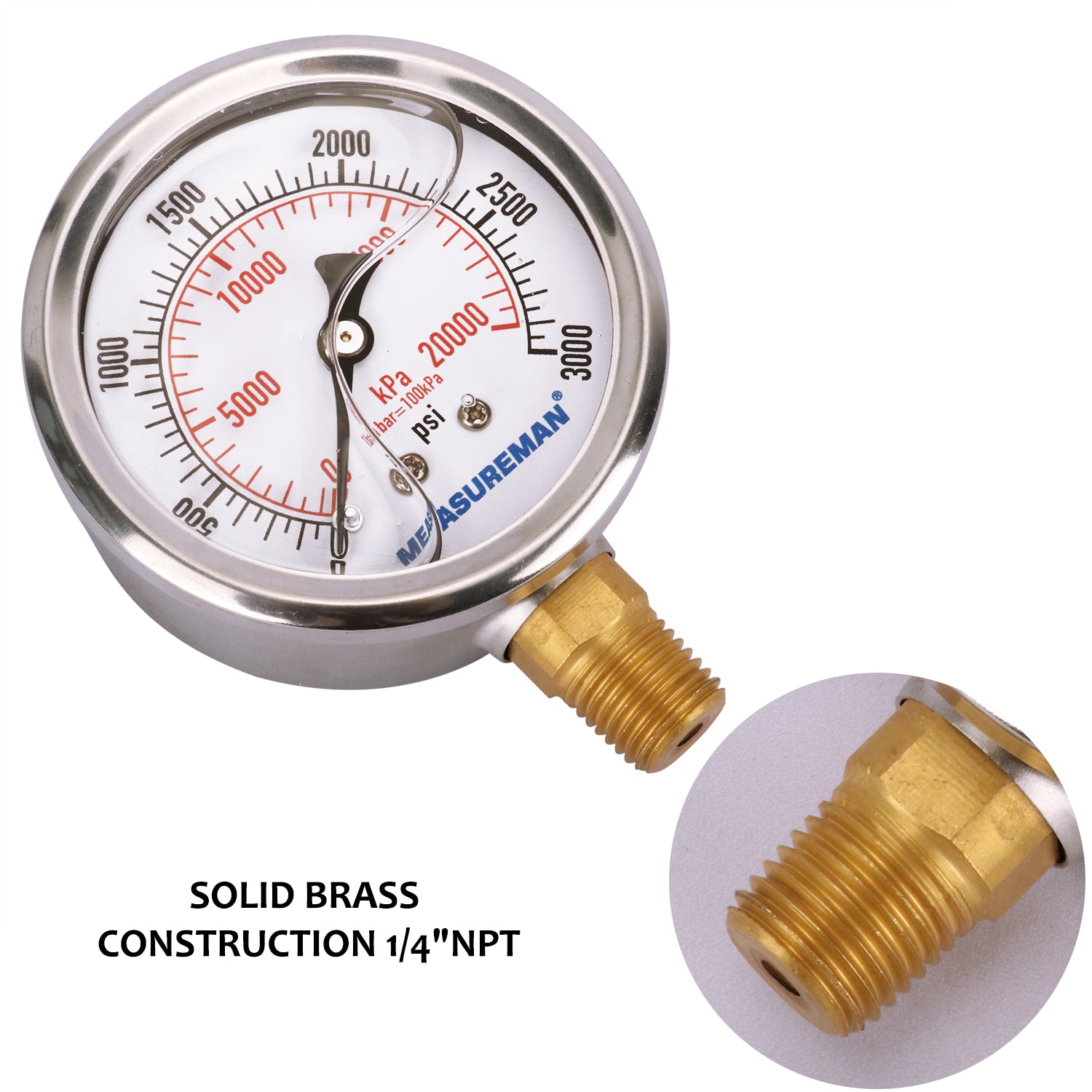

Connection: Brass, one piece design
Oil cap: rubber, gray color

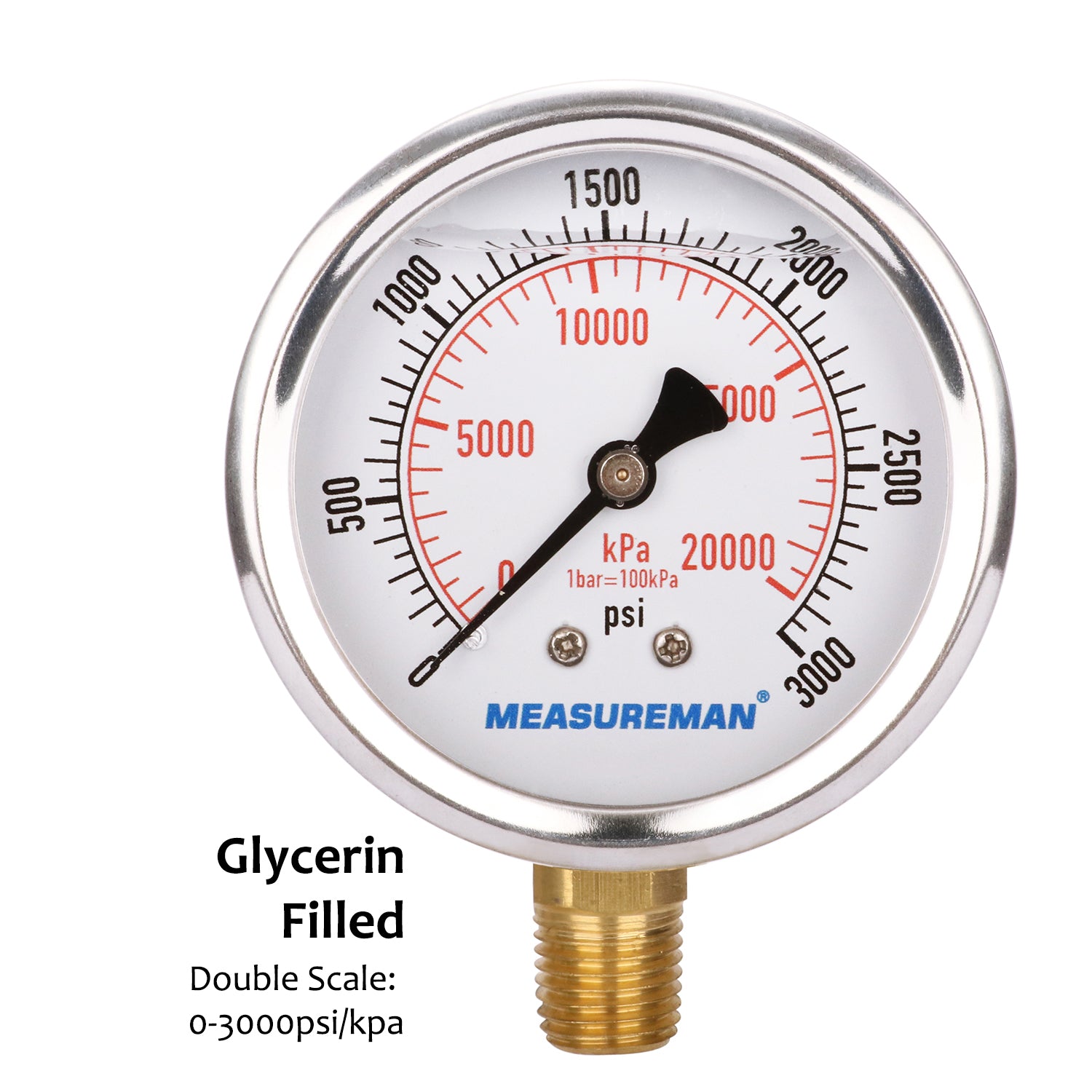

Filling: Glycerin filled, dampens the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
IP class: IP67
Accuracy: +/-3-2-3%

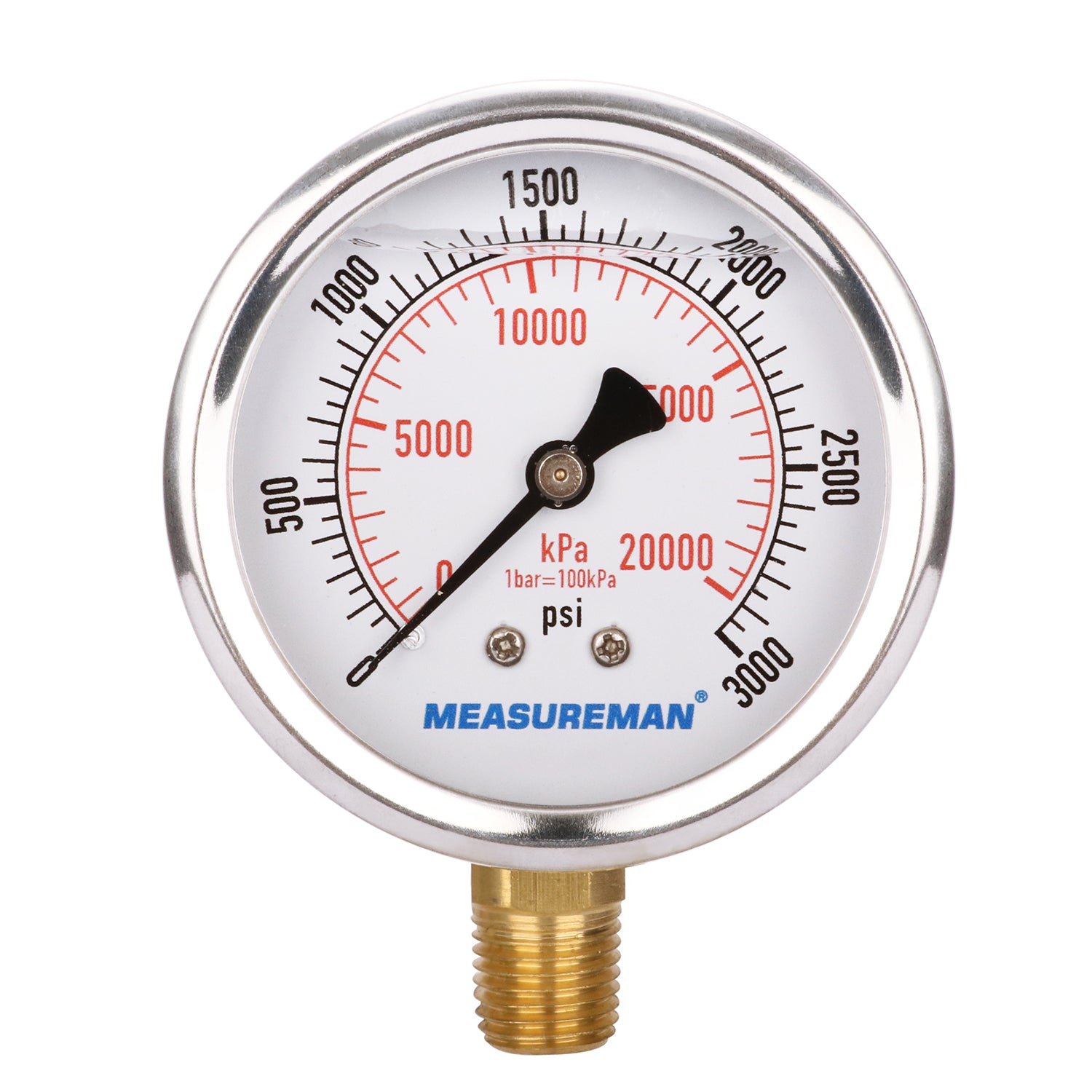

Range: 0-3000psi/kpa dual scale, psi outside, kpa inside
Working temperature:-4 to 140 deg F/-20 to 60 deg C
Ambient temperature:140 deg F/60 deg C maximum
