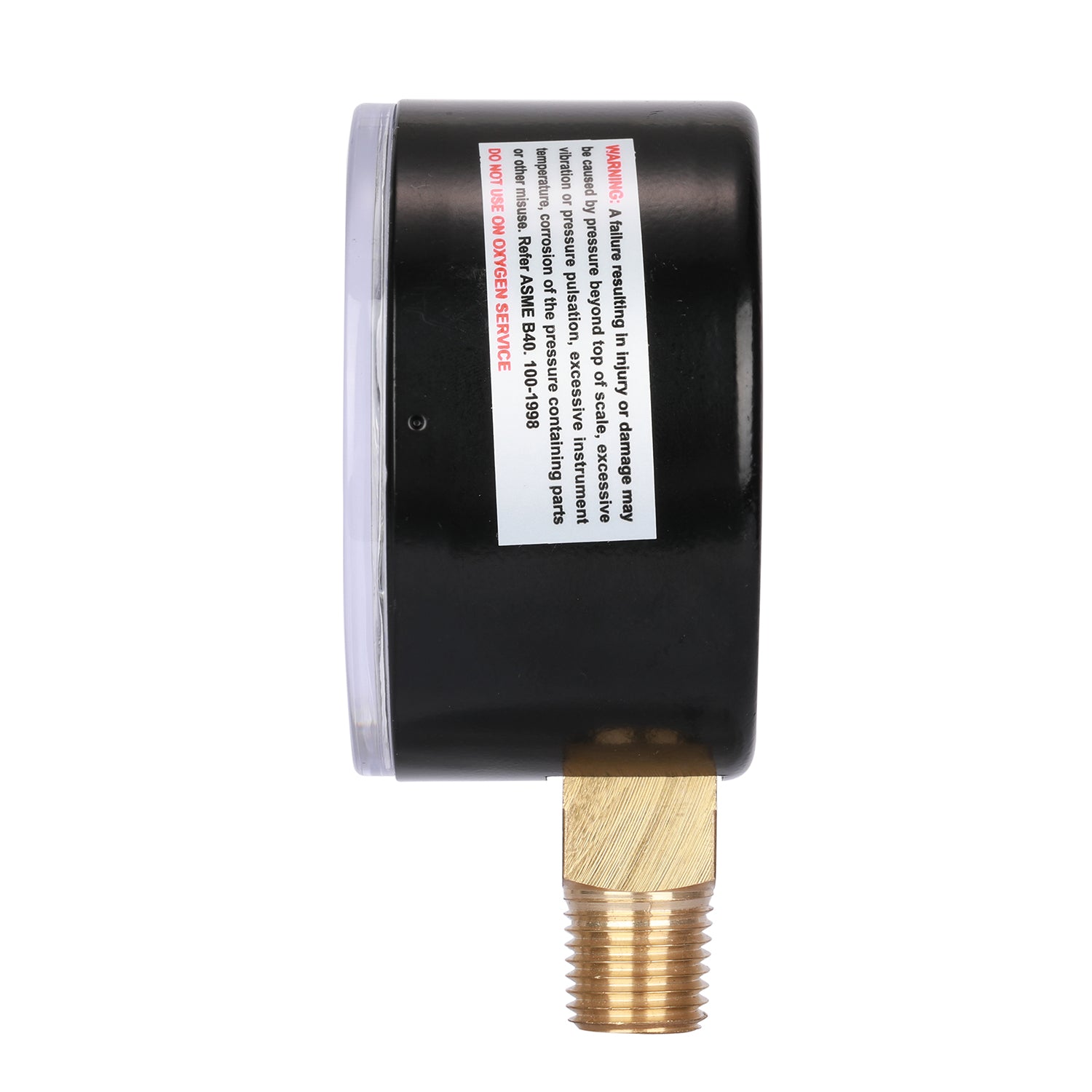

Measureman Diaphragm Type Capsule Low Pressure Gauge, 2-1/2" Dial, 1/4"NPT Lower Mount, Adjustable, 0-30 in H2O(Inches of Water)
Measureman Diaphragm Type Capsule Low Pressure Gauge, 2-1/2" Dial, 1/4"NPT Lower Mount, Adjustable, 0-30 in H2O(Inches of Water)
- For accurate measuring air, water, natural gas, or other medias not corrosive to copper alloy
- 2-1/2" dial size, 1/4"NPT lower mount
- Pressure range: 0-30 In H2O(Inches of Water)
- "Black steel case, snap on plastic window, Beryllium diaphragm type capsule, ensures good accuracy, stable performance, long life"
- Accuracy: +/-2-1-2%, pointer micro-adjustable
Product description
Description
"For accurate measuring air, water, natural gas, or other medias not corrosive to copper alloy
Dial size: 2-1/2""
Process connection: 1/4""NPT lower mount With restrictor installed
Case: black steel case
Window: Snap on plastic window, easy to open
Capsule: beryllium diaphragm type capsule, ensures good accuracy, stable performance, long life
Movement: Brass
Connection: Brass
Dial plate: aluminum, white background,
Pointer: aluminum, black, micro-adjustable
Range: 0-30 In H2O(Inches of Water)
IP class: IP54
Accuracy: +/-2-1-2%
Working temperature:-4 to 140 deg F/-20 to 60 deg C
Ambient temperature:140 deg F/60 deg C maximum "
Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
